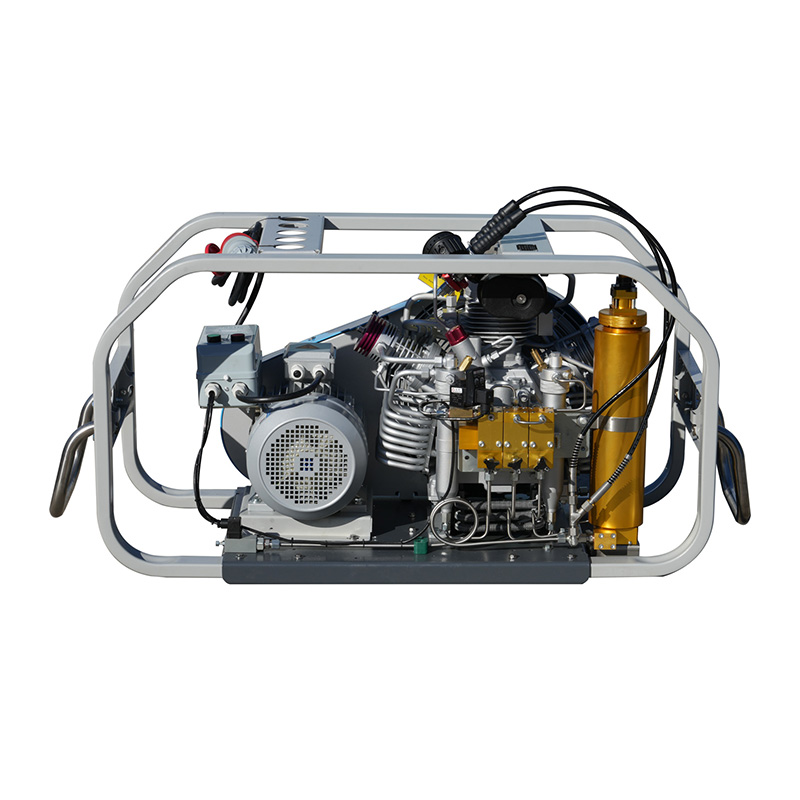

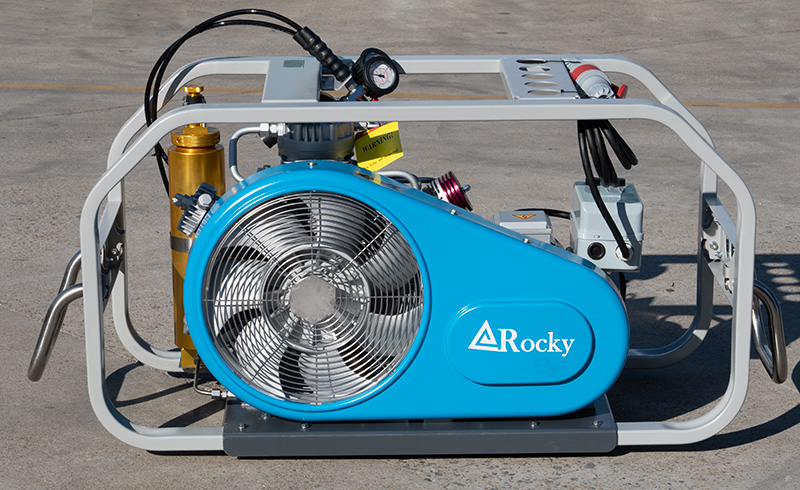

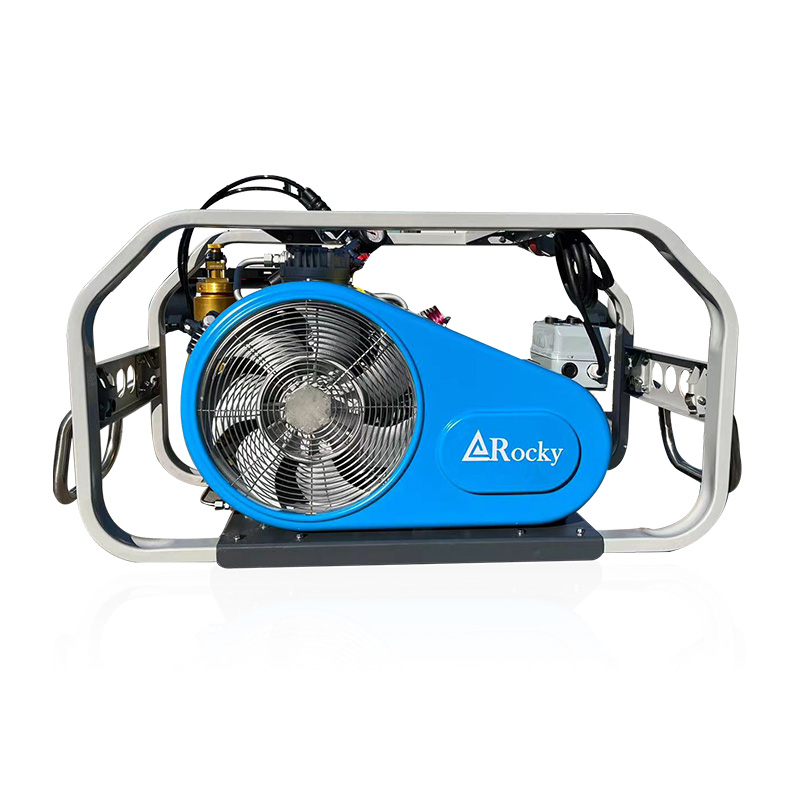

4500 Psi 300Bar High Pressure Portable Scba Air Compressor

High-pressure breathing air compressors are widely used in diving breathing, fire fighting, paintball shooting, mountaineering, aquaculture and other industries.

  • Working Pressure:225~330[ bar ]3663~4785[ psig ]
  • Free Air Delivery:14.1[ cfm ]0.4[ m3/min ]
  • Working Power:10[ kw ]13[ hp ]

Product Details


Product features

1. Small size and light weight: Gasoline-driven high-pressure diving breathing compressors are relatively small in size and light in weight, making them easy to carry and transport.

2. Multi-stage compression and purification: The three-stage or four-stage compression method and efficient purification system can effectively remove harmful substances such as

oil, moisture, impurities and dust in the compressed air, ensuring that the output compressed air meets breathing air standards such as EN12021 and GB/T31975-2015.

3. High-pressure output: It can provide an inflation pressure of up to 330Bar to meet the inflation needs of different types of diving cylinders, quickly fill to the required pressure, and

improve diving operation efficiency.

4. Efficient inflation rate: It has a large exhaust volume and can inflate multiple diving cylinders in a short time. It is suitable for use in scenarios where frequent inflation is required,

such as diving training and commercial diving, and effectively improves the turnover rate of diving equipment.

5. Advanced safety protection devices: Equipped with a variety of safety protection devices, the automatic sewage collector and the automatic shutdown device can stop the operation

in time when the equipment fails or is abnormal, avoiding damage and dangerous situations.

Technical Parameters

ModelFree air deliveryInlet pressureWroking pressureDrivenPower (kW)Dimensions (L*W*H)Weight(kg)
GDR-100E100L/min 3.5cfmAtmosphereDive 225 Bar Firefighting 330 BarElectric motor2.2 kw700*380*420mm46
GDR-100P100L/min 3.5cfmAtmosphereDive 225 Bar Firefighting 330 BarSUBARU/HONDA 4 strokes gasoline engine4.2kw770*420*420mm44
GDR-150E150L/min 5.2cfmAtmosphereDive 225 Bar Firefighting 330 BarElectric motor3 kw660*400*420mm52
GDR-150P150L/min 5.2cfmAtmosphereDive 225 Bar Firefighting 330 BarSUBARU/HONDA 4 strokes gasoline engine5kW790*420*420mm74
GDR-200E200L/min 7.06cfmAtmosphereDive 225 Bar Firefighting 330 BarElectric motor4kw1100*550*570mm95
GDR-200P200L/min 7.06cfmAtmosphereDive 225 Bar Firefighting 330 BarSUBARU/HONDA 4 strokes gasoline engine4kw1100*550*570mm102
GDR-265E265L/min 9.35cfmAtmosphereDive 225 Bar Firefighting 330 BarElectric motor5.5kw1250*590*630mm120
GDR-265P265L/min 9.35cfmAtmosphereDive 225 Bar Firefighting 330 BarSUBARU/HONDA 4 strokes gasoline engine5.5kw1250*590*630mm135
GDR-400E400L/min 14.1cfmAtmosphereDive 225 Bar Firefighting 330 BarElectric motor7.5kW1300*640*740mm138
