200L Portable High Pressure Scuba Breathing Air Compressor

High-pressure breathing air compressors are widely used in diving breathing, fire fighting, paintball shooting, mountaineering, aquaculture and other industries.

  • Working Pressure:225~330[ bar ]3263~4785[ psig ]
  • Free Air Delivery:7.06[ cfm ]0.2[ m3/min ]
  • Working Power:6[ kw ]8[ hp ]

Product Details

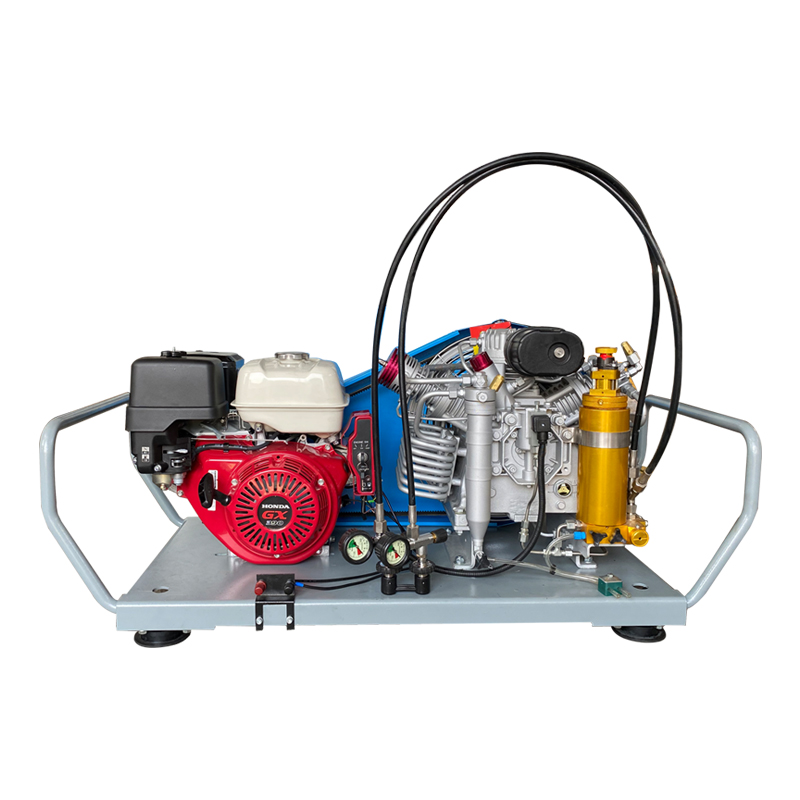

GDR-200P (7).jpg

Product specification
● With power cord and motor protection switch
● Button with start and stop
● The oil-water separator and filter adopt the integrated design of aluminum alloy
● Metal frame structure with plastic coating
● Final safety valve provides overpressure protection
● Stainless steel and aluminum alloy condenser tube
● Activated carbon molecular sieve filter
● Condensate drain valve

Technical Parameters

ModelFree air deliveryInlet pressureWroking pressureDrivenPower (kW)Dimensions (L*W*H)Weightkg
GDR-100E100L/min 3.5cfmAtmosphereDive 225 Bar Firefighting 330 BarElectric motor2.2 kw700*380*420mm46
GDR-100P100L/min 3.5cfmAtmosphereDive 225 Bar Firefighting 330 BarSUBARU/HONDA 4 strokes gasoline engine4.2kw770*420*420mm44
GDR-150E150L/min 5.2cfmAtmosphereDive 225 Bar Firefighting 330 BarElectric motor3 kw660*400*420mm52
GDR-150P150L/min 5.2cfmAtmosphereDive 225 Bar Firefighting 330 BarSUBARU/HONDA 4 strokes gasoline engine5kW790*420*420mm74
GDR-200E200L/min 7.06cfmAtmosphereDive 225 Bar Firefighting 330 BarElectric motor4kw1100*550*570mm95
GDR-200P200L/min 7.06cfmAtmosphereDive 225 Bar Firefighting 330 BarSUBARU/HONDA 4 strokes gasoline engine4kw1100*550*570mm102
GDR-265E265L/min 9.35cfmAtmosphereDive 225 Bar Firefighting 330 BarElectric motor5.5kw1250*590*630mm120
GDR-265P265L/min 9.35cfmAtmosphereDive 225 Bar Firefighting 330 BarSUBARU/HONDA 4 strokes gasoline engine5.5kw1250*590*630mm135
GDR-400E400L/min 14.1cfmAtmosphereDive 225 Bar Firefighting 330 BarElectric motor7.5kW1300*640*740mm138
