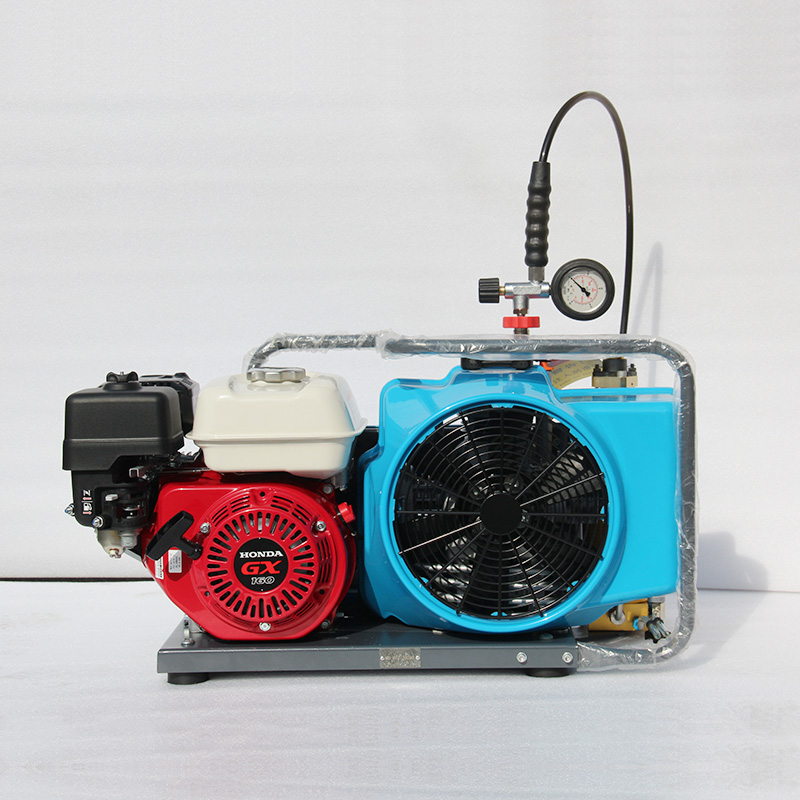

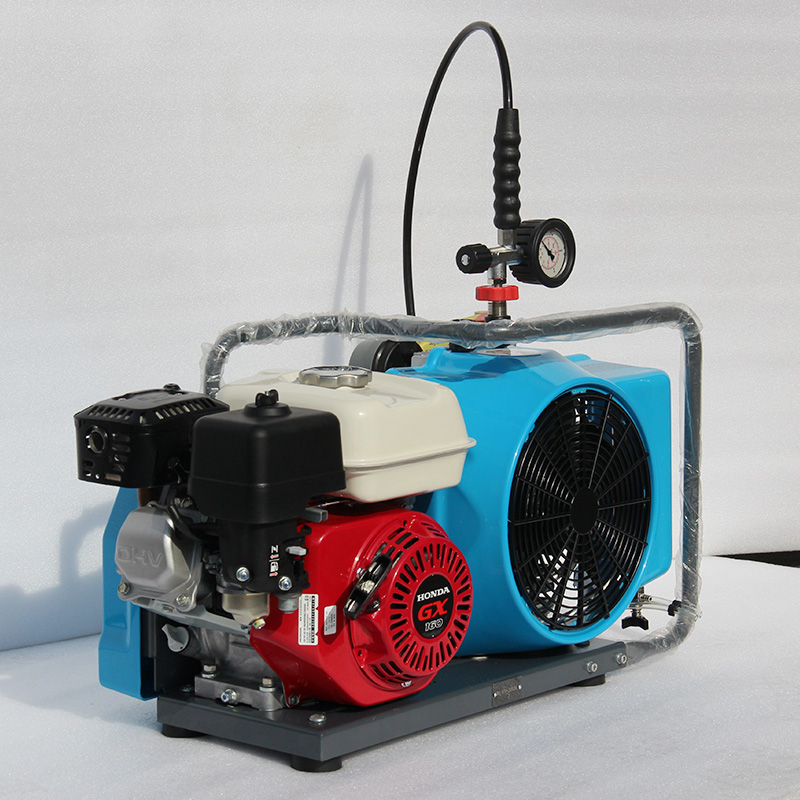

High Pressure Air Compressor GDR-150P for Scuba Diving

High-pressure breathing air compressors are widely used in diving breathing, fire fighting, paintball shooting, mountaineering, aquaculture and other industries.

  • Working Pressure:225~330[ bar ]3263~4785[ psig ]
  • Free Air Delivery:5.3[ cfm ]0.15[ m3/min ]
  • Working Power:5[ kw ]6.5[ hp ]

Product Details

GDR-100P (14).jpg

Product features

1. High compression pressure. The air can be compressed to 200-300 bar or even higher pressure to meet the demand

for high-pressure gas during diving operations.

2. Adopt a multi-stage compression and filtration system. Make the output compressed air meet the EN12021 international

diving breathing gas standard.

3. High safety performance. Equipped with a variety of safety devices to ensure the safety of equipment operation and use.

4. Small size, light weight, compact structure, easy to carry and move.

5. High operating efficiency. Large exhaust volume and fast filling speed can quickly fill high-pressure air for diving breathing

cylinders, improve work efficiency and save time and cost.

6. Strong adaptability. There are various driving modes, including 380V/220V motors, gasoline engines and other options.

Whether in places with power or in areas without power in the wild, it can be used normally.


Technical Parameters

Model

Free

air delivery

Inlet pressureWroking pressureDrivenPower (kW)Dimensions (L*W*H)Weightkg
GDR-100E100L/min 3.5cfmAtmosphere

Dive 225 Bar

Firefighting

330 Bar

Electric motor2.2 kW700*380*420mm46
GDR-100P100L/min 3.5cfmAtmosphere

Dive 225 Bar Firefighting

330 Bar

SUBARU/HONDA 4 strokes gasoline engine4.2kW770*420*420mm44
GDR-150E150L/min 5.2cfmAtmosphere

Dive 225 Bar Firefighting

330 Bar

Electric motor3 kW660*400*420mm52
GDR-150P150L/min 5.2cfmAtmosphere

Dive 225 Bar Firefighting

330 Bar

SUBARU/HONDA 4 strokes gasoline engine5kW790*420*420mm74
GDR-200E200L/min 7.06cfmAtmosphere

Dive 225 Bar Firefighting

330 Bar

Electric motor4kW1100*550*570mm95
GDR-200P200L/min 7.06cfmAtmosphere

Dive 225 Bar Firefighting

 330 Bar

SUBARU/HONDA 4 strokes gasoline engine4kW1100*550*570mm102
GDR-265E265L/min 9.35cfmAtmosphere

Dive 225 Bar Firefighting

 330 Bar

Electric motor5.5kW1250*590*630mm120
GDR-265P265L/min 9.35cfmAtmosphere

Dive 225 Bar Firefighting

330 Bar

SUBARU/HONDA 4 strokes gasoline engine5.5kW1250*590*630mm135
GDR-400E400L/min 14.1cfmAtmosphere

Dive 225 Bar Firefighting

330 Bar

Electric motor7.5kW1300*640*740mm138
