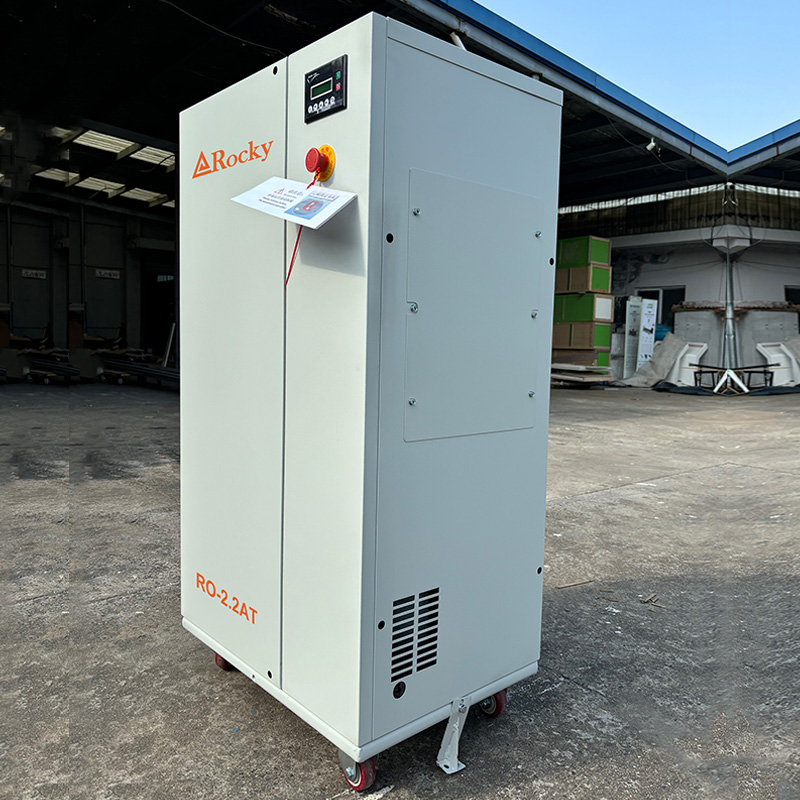

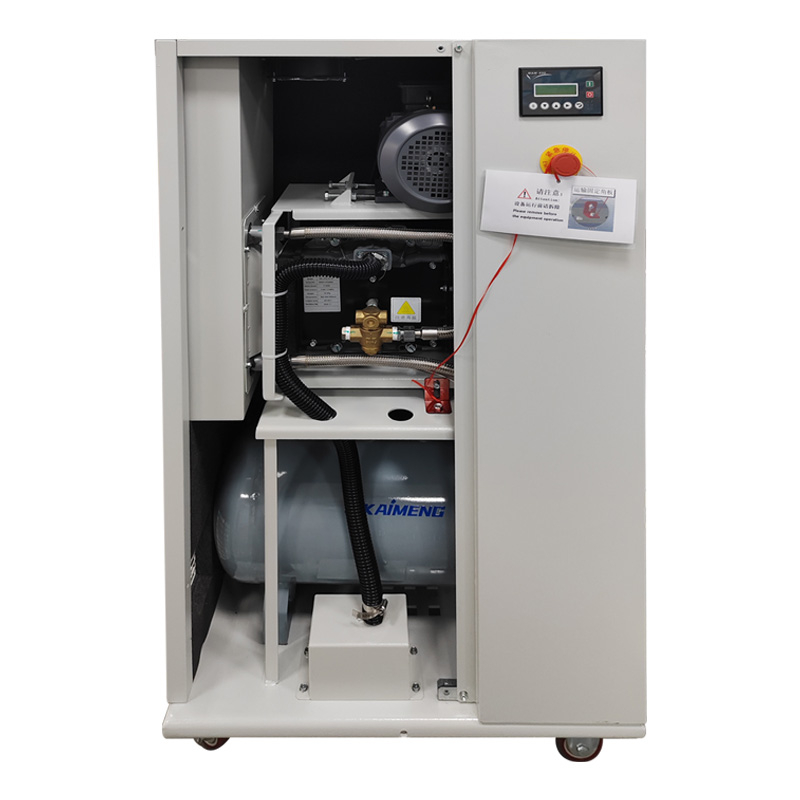

Built-in Air Tank Oil-Free Compressor 2.2kw Small Scroll Air Compressor

Compared with the traditional compressor, the oil-free scroll type has excellent performance such as novel structure, compact size, light weight, low noise level, long life and low maintenance cost

  • Working Pressure:8~10[ bar ]116~145[ psig ]
  • Free Air Delivery:7.8~8.5[ cfm ]0.22~0.24[ m3/min ]
  • Working Power:2.2[ kw ]3[ hp ]

Product Details


RO-2 (3).jpg

Product feature

1.High efficiency oil free scroll airend.100% oil-free. can be used in any industry, especially suitable for users with high oil content

requirements for compressed air.

2. Aptitude and intelligent Control, integrated touch-screen PLC displayer.

3.Unique safe units make whole compressor more safety, more stable,lest noise,lest energy Loss.

4.Quiet operation. The operation noise of the scroll air compressor is extremely low, and the working environment is healthier.

5.Easy to install,operate,maintain, no need to replace or add lubricating oil, only a small amount of consumables need to be replaced

regularly, and the maintenance cost is low.

6.Zero pollution, only discharge of condensate water, no other harmful substances, in line with the requirements of sustainable

development. provide High quanlity oild free compressed air.

Technical Parameters

Oil free scroll air compressor
Model

Air Deliver

y(m3/min)

Power
(kW)
Air-endAir tankNoise
dB(A)
Outlet
diameter

Dimensions

 (mm)

  Weight
    (kg)
8bar10barPower*QtyLitersL * W * H
RO-2.2AT0.24 0.22 2.22.2*14055G1/2700*500*1220160
RO-3.7AT0.40 0.34 3.73.7*14055G1/2700*500*1220170
RO-2.2A0.24 0.22 2.22.2*1/55G1/2650*500*870125
RO-3.7A0.40 0.34 3.73.7*1/55G1/2650*500*870135
RO-5.5A0.60 0.55 5.55.5*1/55G1/2790*640*1050190
RO-7.5A0.80 0.68 7.43.7*2/60G1/2980*675*1270350
RO-11A1.20 1.10 115.5*2/60G3/4852*1274*1330450
RO-15A1.60 1.36 14.83.7*4/63G1 1/21565*1274*1330700
RO-16.5A1.80 1.65 16.55.5*3/63G1 1/21565*1274*1330710
RO-22A2.40 2.20 225.5*4/63G1 1/21565*1274*1330730
RO-33A3.60 3.30 335.5*6/65G1 1/21565*1274*17751020
RO-44A4.80 4.40 445.5*8/68G1 1/21565*1274*17751250
