90kW 125hp VSD Variable Speed Screw Air Compressor

The intelligent control of the permanent magnet variable frequency air compressor makes it have excellent reliability and efficiency. This series of compressors uses permanent magnet high-efficiency m

  • Working Pressure:7~13[ bar ]101.5~189[ psig ]
  • Free Air Delivery:176.5~547[ cfm ]5~15.5[ m3/min ]
  • Working Power:90[ kw ]125[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

ROCKY CATALOG 2025 VERSION Rocky High Pressure Gas Booster Compressor Catalog Rocky High Pressure Breathing Air Compressor Catalog 2025 Rocky Medium High pressure air compressor catalog

Product Details

Product features

1. Super IE4 class, 97% high-efficiency energy-saving PM motor.

2. Latest technology screw air end, more compact and stable.

3. Intelligent frequency conversion technology, energy saving  up to 42%.

4. Internet remote control, monitor your compressor anytime,  anywhere.

Technical Parameters

Intelligent PM VSD Screw Air Compressor
ModelAir Delivery (m3/min)Power
(kW/hp)		Noise
dB(A)		Outlet
diameter		Dimensions (mm)
Weight
(kg)
8 bar10 bar13 barL * W * H
RK10APM0.5-1.20.4-1.00.3-0.77.5/1063 G3/4700*600*860180
RK15APM0.6-1.70.5-1.60.4-1.011/1565 G3/41000*750*1070300
RK20APM1.0-2.40.8-2.10.7-1.615/2065 G3/41000*750*1070320
RK30APM1.5-3.71.3-3.21.1-2.822/3068 G11350*850*1120430
RK40APM2.0-5.01.6-3.91.4-3.430/4068 G11350*800*1110460
RK50APM2.5-6.22.2-5.62.0-4.937/5069 G1 1/21500*1000*1350650
RK60APM3.0-7.32.4-6.02.3-5.945/6070 G1 1/21500*1000*1350730
RK75APM3.8-9.53.5-8.73.0-7.355/7570 G21700*1220*1550950
RK100APM5.1-12.84.5-11.33.7-9.275/10072 G21700*1200*15501050

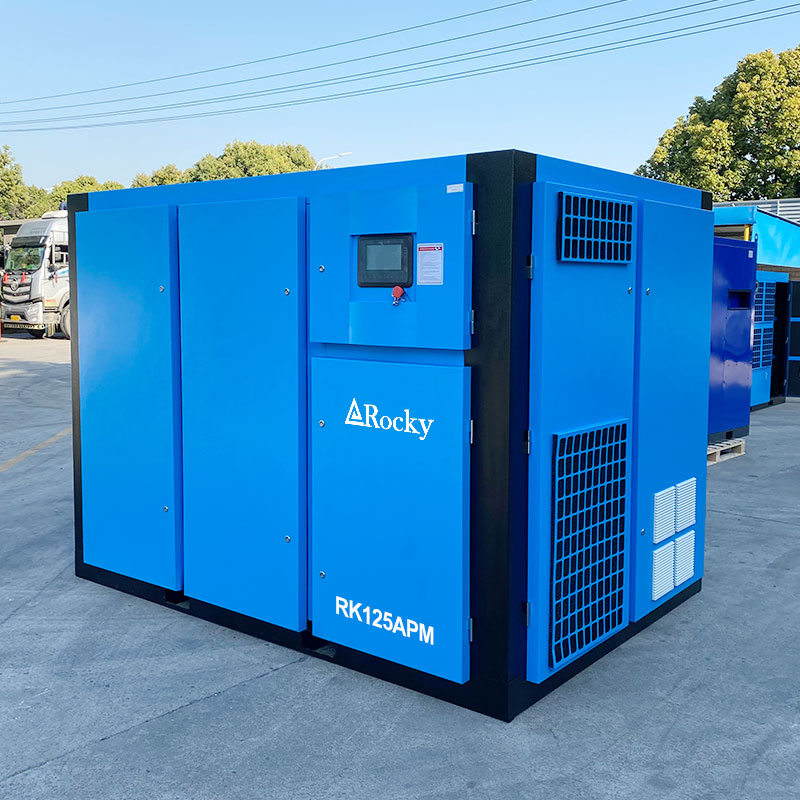

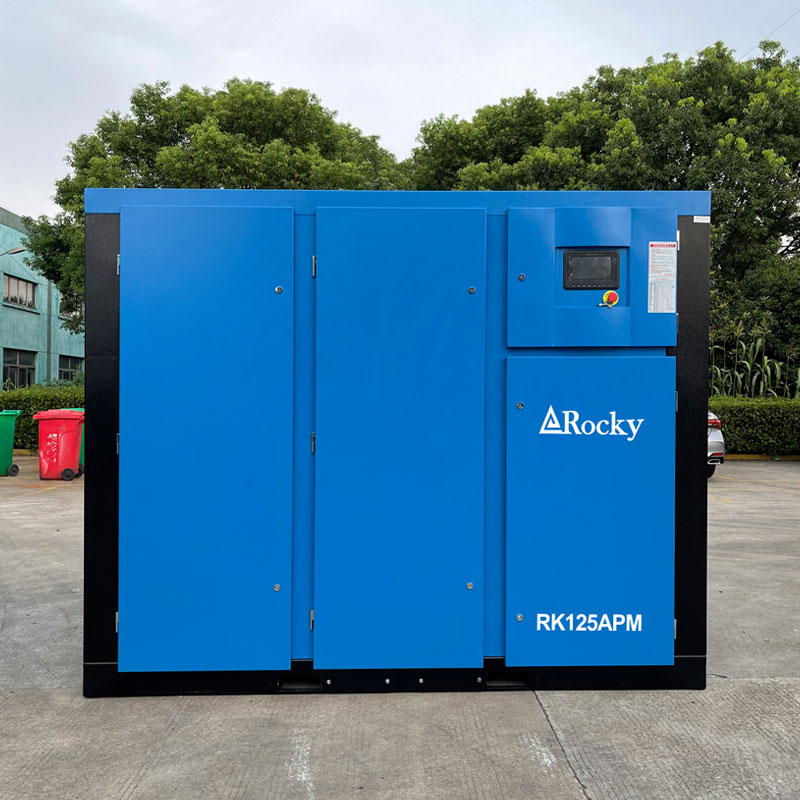

RK125APM6.2-15.55.4-13.65.0-12.590/12572 G22100*1400*16501420
RK150APM7.8-19.67.1-17.86.2-15.5110/15072 DN652500*1650*19002200
RK175APM9.3-23.27.8-19.57.1-17.8132/17572 DN652500*1650*19002400
RK220APM11.1-27.89.2-23.08.0-20.0160/22072 DN803000*1900*19503650
RK250APM12.5-31.211.0-27.510.3-25.8185/25072 DN803000*1900*19503950
RK275APM13.6-34.012.2-30.511.2-28.0200/27576 DN803000*1900*19504200
RK300APM14.0-35.012.8-32.012.0-30.0220/30076 DN1003600*2200*22004600
RK350APM16.6-41.515.2-38.014.0-34.9250/35076 DN1003600*2200*22005900
RK375APM20.2-50.618.4-46.016.6-41.5280/37582 DN1003600*2200*22006000
RK420APM22.2-55.920.0-50.116.8-42.0315/42082 DN1254600*2300*24307800
RK420WPM22.2-55.920.0-50.116.8-42.0315/42082 DN1254200*2300*24307500
RK475APM26.0-65.422.0-55.118.4-46.0355/47585 DN1254600*2300*24308200
RK475WPM26.0-65.422.0-55.118.4-46.0355/47582 DN1254200*2300*24307900
