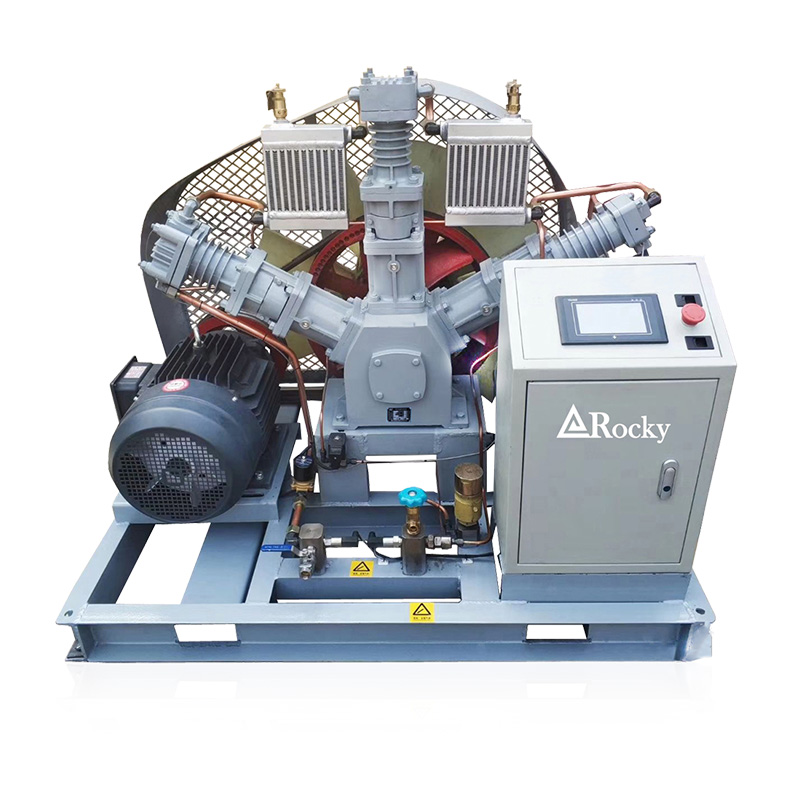

150 bar Cylinder Filling Oxygen and Nitrogen Booster Compressor

The oxygen compressor adopts a completely oil-free design, and friction seals such as piston rings and guide rings are made of special materials with self-lubricating properties.

Working Pressure:4~150 [ bar ]58~2175[ psig ]
Free Air Delivery:176.5~4942[ cfm ]5~140[ m³/min ]
Working Power:4~22[ kw ]5.5~30[ hp ]

PRODUCT
GALLERY

DOWNLOAD DOCUMENT

ROCKY CATALOG 2025 VERSION Rocky High Pressure Gas Booster Compressor Catalog Rocky High Pressure Breathing Air Compressor Catalog 2025 Rocky Medium High pressure air compressor catalog

150 bar Cylinder Filling Oxygen and Nitrogen Booster Compressor

Product Details

Product features

1. Medical grade oil-free compression, Class 0 Certified.

2. Heavy-duty design,with 24/7 continuous performance

3. High outlet pressure up to 500bar.

4. Available for special gases such as oxygen, nitrogen, hydrogen, CNG, and more.

Technical Parameters

Model	Capacity (m³/h)	Inlet P (Barg)	Outlet P (Barg)	Motor Power (Kw)	Rotating speed (rpm)	Inlet Size	Outlet Size	Dimensions LWH (mm)	Weight (kg)
RWWY(1-5)4-150	5	4	150	4.0	470	RC1/2"	G5/8	13508501100	380
RWWY-10/4-150	10	4	150	55	470	RC1/2"	G5/8	135010501100	410
RWWY-15/4-150	15	4	150	75	640	RC1/2"	G5/8	135010501100	420
RWWY-20/4-150	20	4	150	11	580	RC1/2"	G5/8	135010501100	430
RWWY-25/4-150	25	4	150	11	640	RC1/2"	G5/8	135010501100	430
RWWY-30/4-150	30	4	150	15	470	RC1/2"	G5/8	135010501100	450
RWWY-35/4-150	35	4	150	15	470	RC1/2"	G5/8	135010501100	450
RWWY-40/4-150	40	4	150	15	580	RC1/2"	G5/8	135010501100	450
RSWY-45/4-150	45	4	150	18.5	580	RC1"	G5/8	145011001250	520
RSWY-50/4-150	50	4	150	18.5	580	RC1"	G5/8	145011001250	520
RSWY-55/4-150	55	4	150	18.5	580	RC1"	G5/8	145011001250	520
RSWY-60/4-150	60	4	150	22	640	RC1"	G5/8	145011001250	540
RSWY-65/4-150	65	4	150	22	720	RC1"	G5/8	145011001250	540
RSWY-70/4-150	70	4	150	22	720	RC1"	G5/8	145011001250	540
RWWY-75/4-150-II	75	4	150	15*2	580	RC1"	G5/8	280012501200	1060
RWWY-80/4-150-II	80	4	150	15*2	580	RC1"	G5/8	280012501200	1060
RWWY-85/4-150-II	85	4	150	15*2	580	RC1"	G5/8	280012501200	1060
RSWY-90/4-150-II	90	4	150	18.5*2	580	RC1"	G5/8	290013201300	1260
RSWY-95/4-150-II	95	4	150	18.5*2	580	RC1"	G5/8	290013201300	1260
RSWY-100/4-150-II	100	4	150	18.5*2	580	RC1"	G5/8	290013201300	1260
RSWY-105/4-150-II	105	4	150	18.5*2	580	RC1"	G5/8	290013201300	1260
RSWY-1104-150-II	110	4	150	18.5*2	580	RC1"	G5/8	290013201300	1260
RSWY-1154-150-II	115	4	150	22*2	640	RC1"	G5/8	290013201300	1350
RSWY-12/4-150-II	120	4	150	22*2	640	RC1"	G5/8	290013201300	1350
RSWY-125/4-150-II	125	4	150	22*2	640	RC1"	G5/8	290013201300	1350
RSWY-130/4-150-II	130	4	150	22*2	720	RC1"	G5/8	290013201300	1350
RSWY-135/4-150-II	135	4	150	22*2	720	RC1"	G5/8	290013201300	1350
RSWY-140/4-150-II	140	4	150	22*2	720	RC1"	G5/8	290013201300	1350
