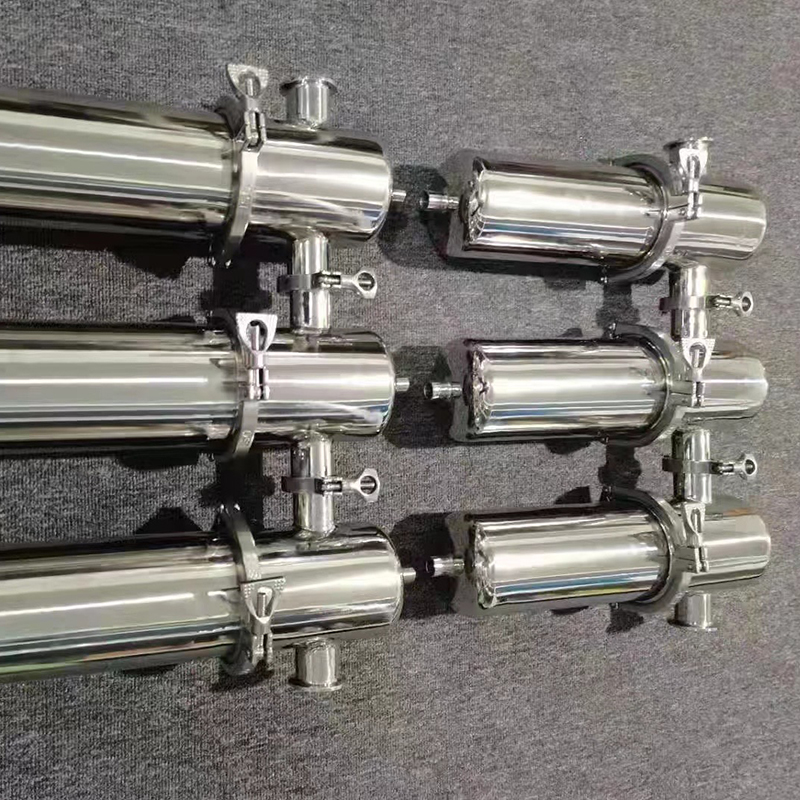

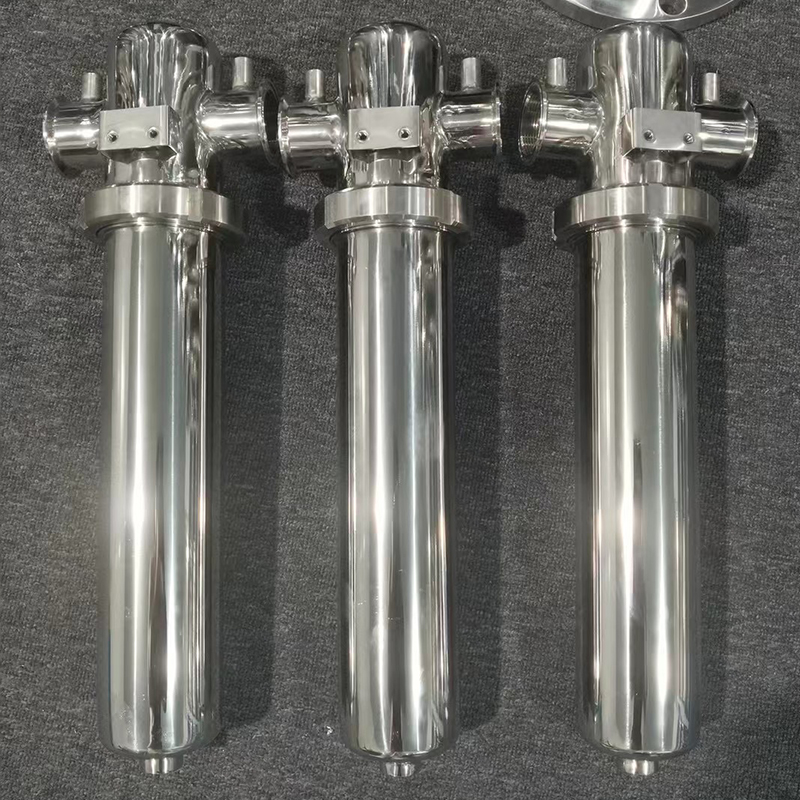

Air compressor post-processing filter Industrial precision filter BXG-350*

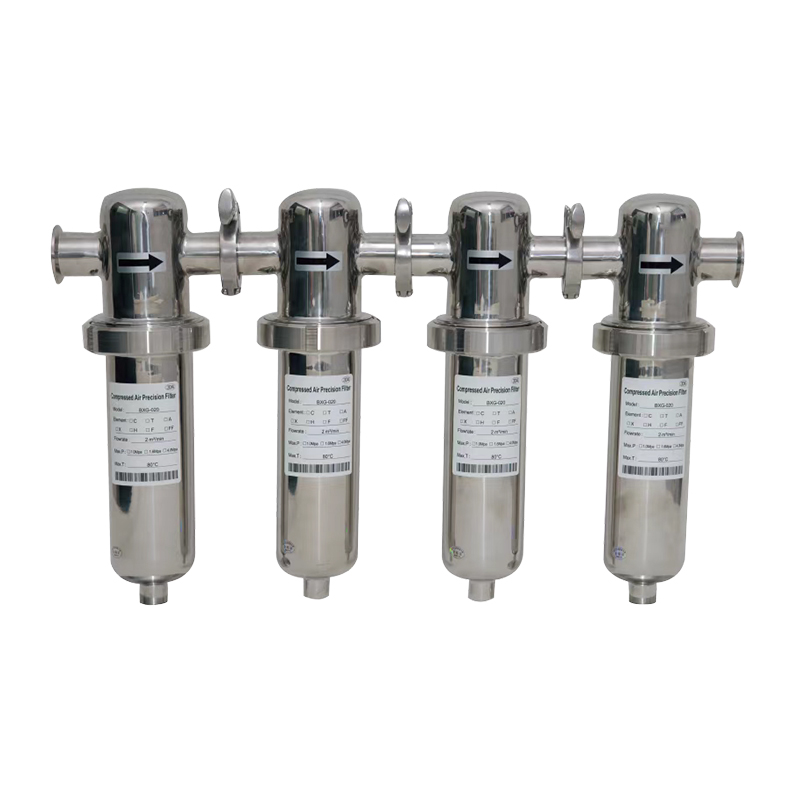

BXG series stainless steel precision filter (1.6Mpa)The shell is made of 304 stainless steel, the inner and outer layers are mirror polished, anti-corrosion, low resistance, widely used in various ind

  • Working Pressure:6~16[ bar ]87~232[ psig ]
  • Free Air Delivery:1~40[ cfm ]35.3~1412[ m3/min ]
  • Working Power:7.5~250[ kw ]10~350[ hp ]

Product Details

不锈钢过滤器 (7).jpg

Key Advantages


1. Excellent Corrosion Resistance and Hygiene

This is one of its core advantages. 304 stainless steel is non-toxic and odorless, rust-resistant, and resistant to corrosion by media,

making it ideally suited to the hygienic requirements (e.g., GMP and 3A) of industries such as food, pharmaceuticals, and biotechnology.

It won't rust and contaminate fluids like carbon steel, nor will it release harmful substances as it ages like some plastics.


2. High Mechanical Strength and Long Life

Rugged and durable, it can withstand high pipeline pressures and physical impact without breaking. It operates reliably even in harsh

industrial environments, resulting in a long overall service life and a lower total cost of ownership.


3. Wide Applicability

Due to its excellent corrosion resistance, it can be widely used in a variety of industries, including chemical, petroleum, food and beverage,

pharmaceuticals, water treatment, electronics, and cosmetics, handling a variety of liquids and gases with low acidity and alkalinity.


4. Easy Cleaning and Maintenance

The smooth surface of stainless steel resists contamination and is easy to clean and disinfect. Most designs feature quick-release mechanisms,

making filter element replacement convenient and significantly reducing downtime for maintenance.


5. Excellent high and low temperature resistance. 304 stainless steel can withstand a wide temperature range (typically -196°C to 800°C,

depending on pressure and seal material), making it suitable for high-temperature steam filtration and low-temperature liquid filtration.


Technical Parameters

Filter

Model

Capacity

(m3/min)

Number of

filter elements

Filter

element

model

Import and

Export

(Threaded

Flange))

H

Barrel

diameter

BXG-010*11E-161"36415076
BXG-020*21E-201"36416076
BXG-030*31E-241.5"40216089
BXG-050*51E-281.5"57221089
BXG-070*71E-321.5"57226089
BXG-110*11 1E-362"710340102
BXG-140*151E-40DN65710380133
BXG-180*201E-44DN801000380133
BXG-220*251K430DN80950380159
BXG-350*401K620DN10011501150159
