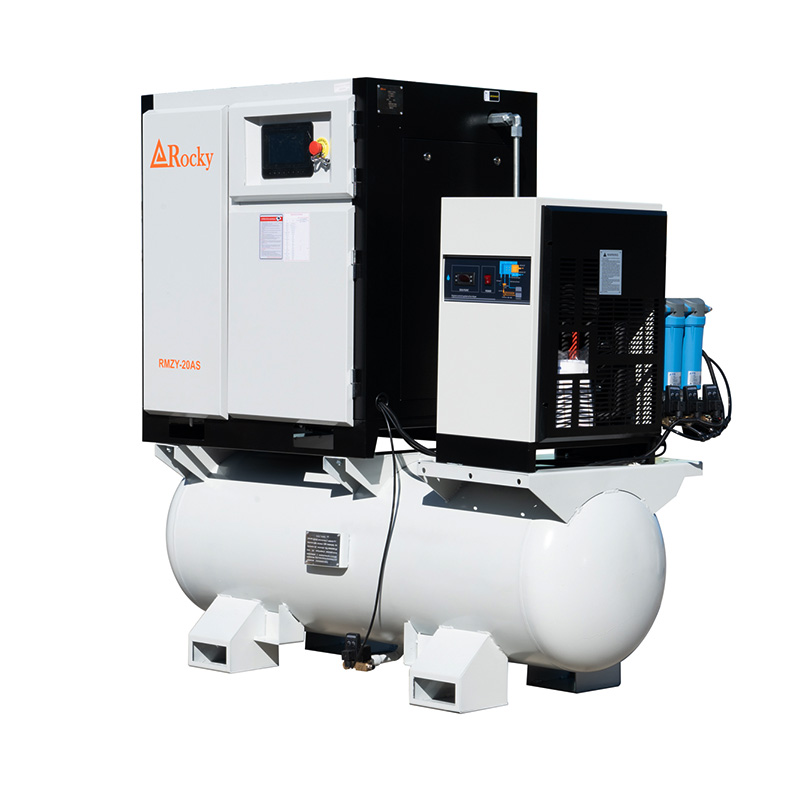

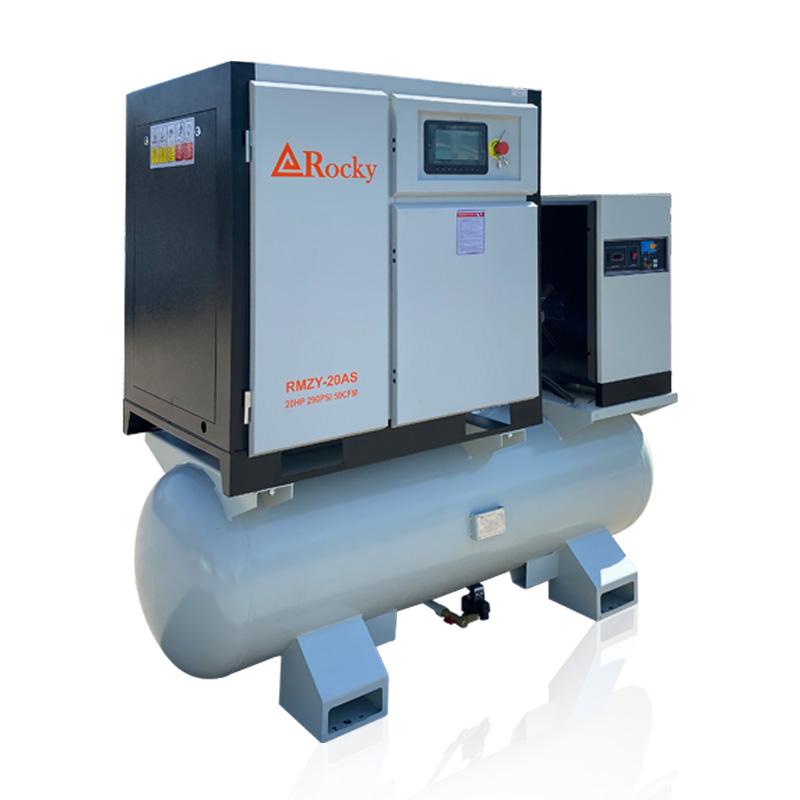

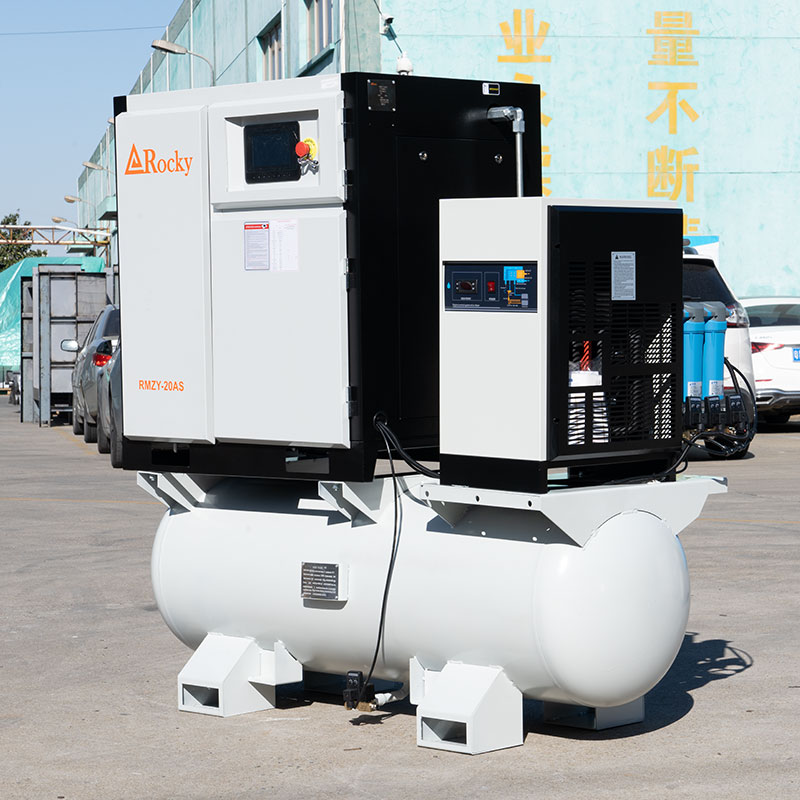

20hp High-Pressure Laser Cutting Machine with Combined Screw Air Compressor and Air Dryer

A laser cutting screw air compressor is a screw-type air compressor system specifically designed to provide the compressed air required for laser cutting equipment.

  • Working Pressure:16~20 [ bar ]232~290[ psig ]
  • Free Air Delivery:37~194[ cfm ]1.05~5.5[ m3/min ]
  • Working Power:7.5~55[ kw ]10~75[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

ROCKY CATALOG 2025 VERSION Rocky High Pressure Gas Booster Compressor Catalog Rocky High Pressure Breathing Air Compressor Catalog 2025 Rocky Medium High pressure air compressor catalog

Product Details


Product features

1. Latest high-tech screw air end, ensure high stability, smoother cutting and better-looking cutting surface.

2. Multiple high-efficiency oil and water removal devices ensure the compressed air entering the laser cutting machine is dry and oil-less.

3. Thermostatic control minimizes the moisture content of the air, ensuring system reliability & lifetime

4. Equipped with a large-capacity air storage tank, which stabilizes the air supply pressure and condensates the moisture.

5. The integrated automatic drainage system improves the purity and dryness of the compressed air, significantly keeps the laser lens clean away from contamination.

6. All-in-one design, user-friendly,easy to use and transport.


Technical Parameters



High Pressure screw air Compressor for Fiber Laser Cutting Application


ModelAir Delivery
(m3/min)
max		Exhaust
pressure
(bar)
max		Power
(kW/hp)		Noise
dB(A)		Outlet
diameter
(In)		Dimensions
(mm)		Weight
(kg)		Exhaust
pressure
dew point (°C)		Exhaust
dust
content (μm)		Exhaust oil
content
(ppm)		Gas storage
tank
capacity (L)
RMZY-10A81.20 8 7.5/1063 G3/41505*740*1430350 2~100.01 0.001 260
RMZY-15A81.70 8 11/1565 G3/41800*900*1780410 2~100.01 0.001 400
RMZY-20A82.30 8 15/2065 G3/41800*900*1780430 2~100.01 0.001 400
RMZY-30A83.60 8 22/3068 G3/41800*900*1980530 2~100.01 0.001 400
RMZY-50A86.20 8 37/5070 G3/41990*1000*1930930 2~100.01 0.001 600
RMZY-15A1.05 16 11/1568 G3/41800*900*1780430 2~100.01 0.001 400
RMZY-20A1.52 16 15/2065 G3/41800*900*1780450 2~100.01 0.001 400
RMZY-30A2.41 16 22/3068 G3/41880*900*1980550 2~100.01 0.001 400
RMZY-50A3.90 16 37/5070 G3/41990*1000*1930930 2~100.01 0.001 600
RMZY-20AA1.52 16 15/2065 G3/42250*900*2080450 -20 0.01 0.001 400
RMZY-30AA2.41 16 22/3070 G3/42250*900*2080700 -20 0.01 0.001 400
RMZY-50AA3.90 16 37/5070 G3/42660*1000*2050980 -20 0.01 0.001 600
RMZY-75AA5.50 16 55/7570 G3/43500*2330*22151540 -20 0.01 0.001 1800
RMZY-15AS1.05 20 11/1565 G3/41800*900*1780460 2~100.01 0.001 400
RMZY-20AS1.52 20 15/2065 G3/41800*900*1780480 2~100.01 0.001 400
RMZY-30AS2.41 20 22/3068 G3/41880*900*1980600 2~100.01 0.001 400
RMZY-20AAS1.52 20 15/2065 G3/42250*900*2080740 2~100.01 0.001 400
RMZY-30AAS2.41 20 22/3070 G3/42250*900*2080780 -20 0.01 0.001 400
RMZY-50AAS3.90 20 37/5070 G3/42660*1000*20501080 -20 0.01 0.001 600
RMZY-75AAS5.50 20 55/7570 G3/43500*2330*22151540 -20 0.01 0.001 1800
Note:
1."A" indicates an additional absorption dryer.
2."S" indicates "Super High 20 bar" discharge pressure.
3.All compressors feature adjustable pressure settings.
