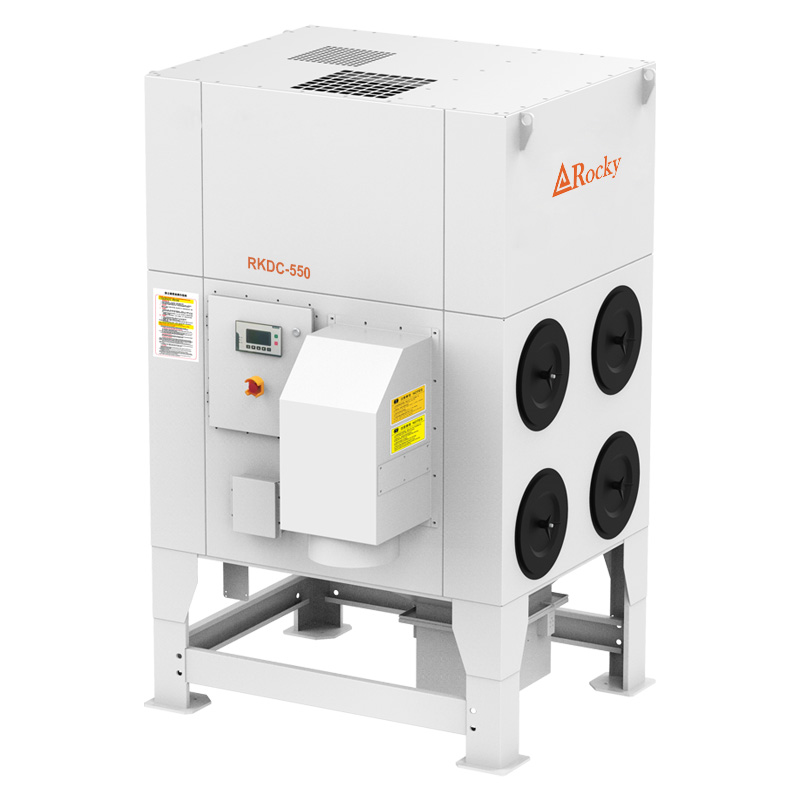

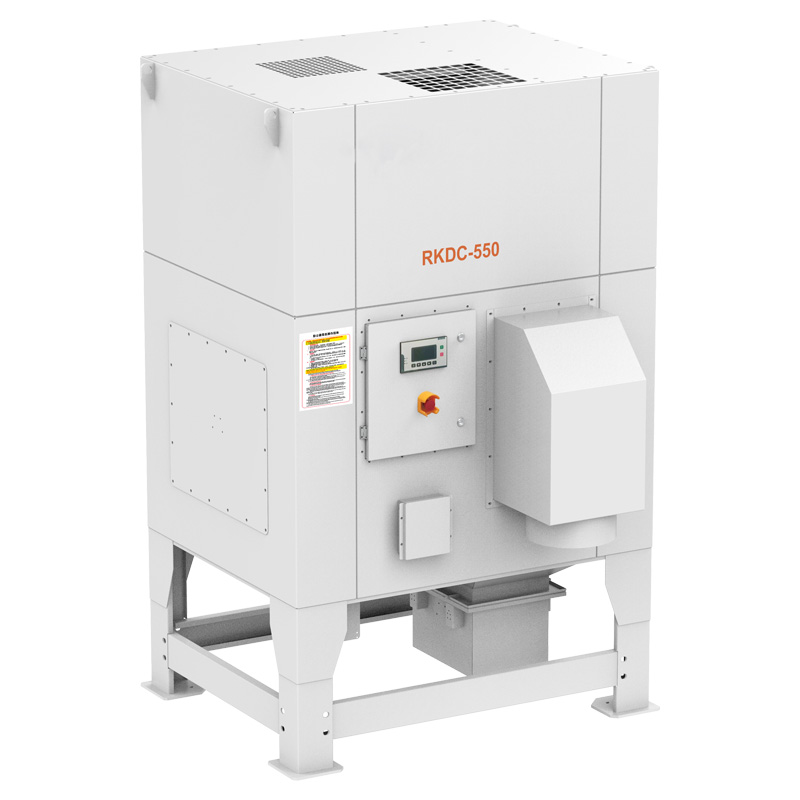

5.5kW Welding Fume Extractor/Dust Collector for Laser/Plasma Cutting Machine

A fume extractor is an industrial environmental protection device used to capture and filter fumes and dust at their source (such as welding or cutting), and discharge clean air back to the work area,

  • Working Pressure:4~6[ bar ]58~87[ psig ]
  • Free Air Delivery:1695~4236[ cfm ]48~120[ m3/min ]
  • Working Power:3~7.5[ kw ]4~10[ hp ]

Product Details

A fume extractor is an industrial environmental protection device used to capture and filter fumes and dust at their source (such as welding or cutting), and discharge clean air back to the work area, thereby purifying the workshop environment.



Features and Advantages

1. High-efficiency purification

Employs a high-efficiency filter element to capture submicron-sized particles, resulting in high purification efficiency.

2. Source treatment

Collects pollutants directly from their source, preventing their spread within the workshop.

3. Health protection

Effectively protects employees' respiratory systems, preventing occupational diseases.

4. Quality improvement

Reduces the interference of fumes on the production environment and precision processes, improving product quality.

5. Energy saving and environmental protection

Purified air can be circulated indoors, reducing heat loss in the workshop during winter and lowering energy consumption.

Technical Parameters

ModleRKDC-3RKDC-5.5RKDC-7.5
Power(KW)5.5 7.5
Supply(V/HZ)380/50
Maximum  airvolume(m³/h)2900 4500 7200
Maximum pressure(pa)2000 2000 2500
Filter MaterialNano flame retardant composite fibers
Filter installation methodRotation+locking mechanism
Filter PrincipleNegative pressure reverse blowing type
Requirements for blowback gas source(MPa)0.4~0.6(Oil free and water free compressed air)
Number of filtercartridges
Cartridge specification(mm)φ325*660
Filter area(m)46 92 138
Filtration(μm)0.3~3.0
Air inlet diameter(mm)250 300 400
Air outlet diameter(mm)200 300 350
Weight(kg)420 690 810
Dimensions(mm)1800*622*17451800*1000*18151800*1100*2255
Suitable forlaser cuttingmachine tabletopsBelow 3 metersBelow 4 meters6~12meters
