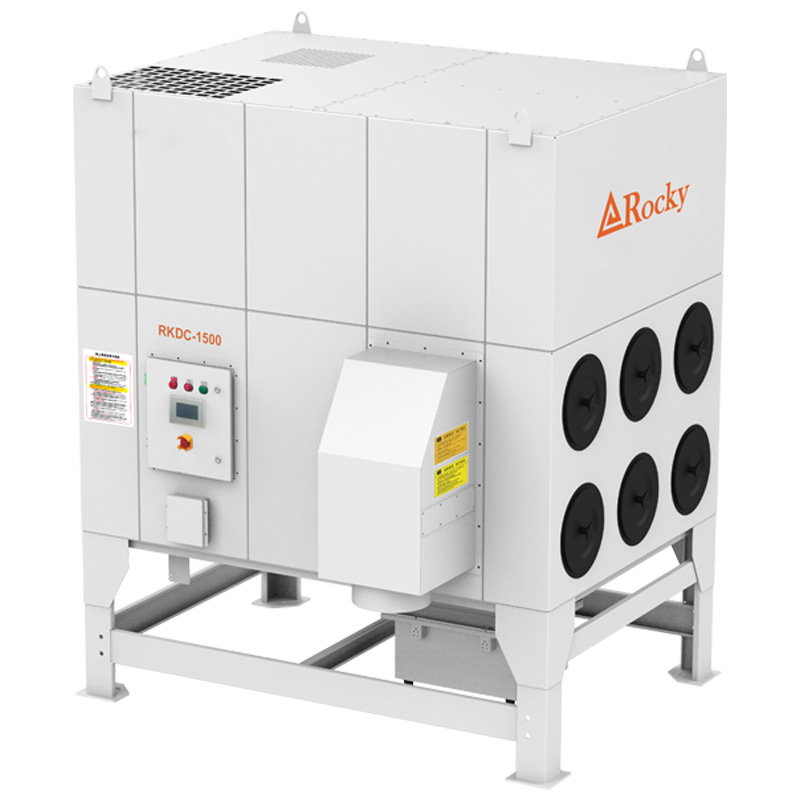

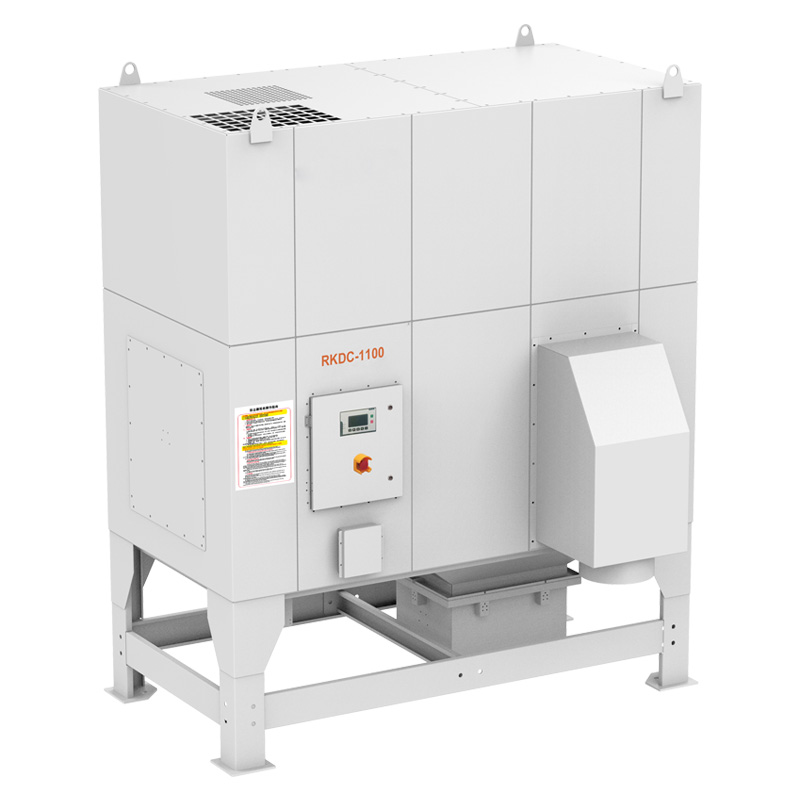

11kW 15HP High-efficiency dust collector/Smoke collector for laser cutting

A fume extractor is an industrial environmental protection device used to capture and filter fumes and dust at their source (such as welding or cutting), and discharge clean air back to the work area,

  • Working Pressure:4~6[ bar ]58~87[ psig ]
  • Free Air Delivery:2648~5895[ cfm ]75~167[ m3/min ]
  • Working Power:5.5~11[ kw ]7.5~15[ hp ]

Product Details


Features and Advantages

1. High-efficiency purification

Employs a high-efficiency filter element to capture submicron-sized particles, resulting in high purification efficiency.

2. Source treatment

Collects pollutants directly from their source, preventing their spread within the workshop.

3. Health protection

Effectively protects employees' respiratory systems, preventing occupational diseases.

4. Quality improvement

Reduces the interference of fumes on the production environment and precision processes, improving product quality.

5. Energy saving and environmental protection

Purified air can be circulated indoors, reducing heat loss in the workshop during winter and lowering energy consumption.

Technical Parameters

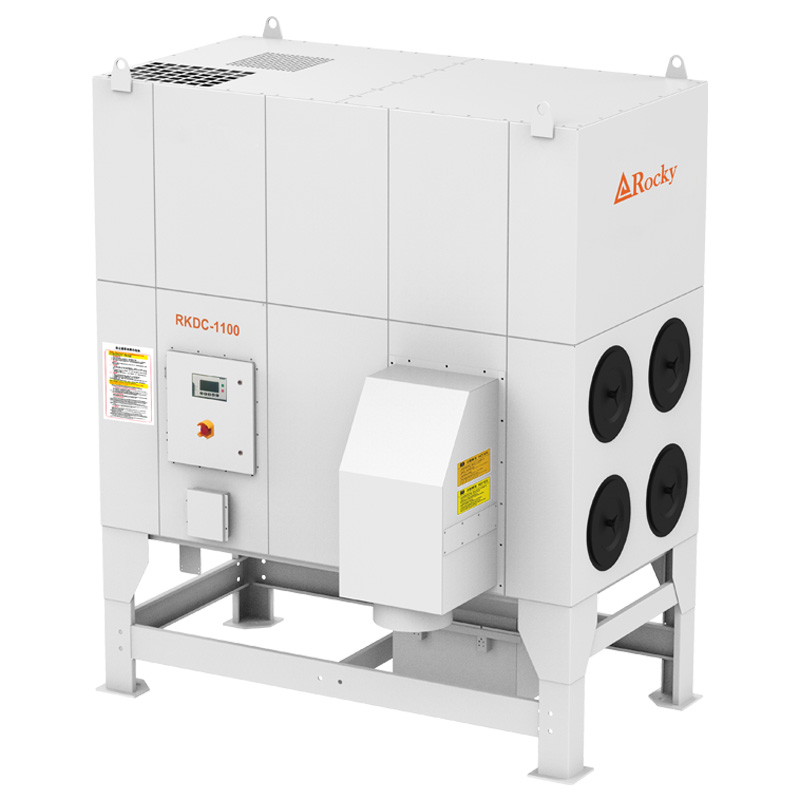

ModleRKDC-550RKDC-750RKDC-1100RKDC-1100/9
Power(KW)5.5 7.5 11 11
Supply(V/HZ)380/50
Maximum  airvolume(m³/h)4500 7200 10000 10000
Maximum pressure(pa)2000 2500 2800 2800
Filter MaterialNano flame retardant composite fibers
Filter installation methodRotation+locking mechanism
Filter PrincipleNegative pressure reverse blowing type
Requirements forblowback gas source(MPa)0.4~0.6(Oil free and water free compressed air)
Number ofiltercartridges
Cartridge specification(mm)φ325*660
Filter area(m)92 138 184 207
Filtration(μm)0.3~3.0
Air inlet diameter(mm)300 300 300 300
Weight(kg)520 620 790 898
Dimension(mm)1343*1402*21881504*1431*26882105*1605*25831935*1685*3100
Suitable for laser cuttingmachine tabletopsBelow 4 meters6~12metersAbove 12 metersAbove 12 meters
