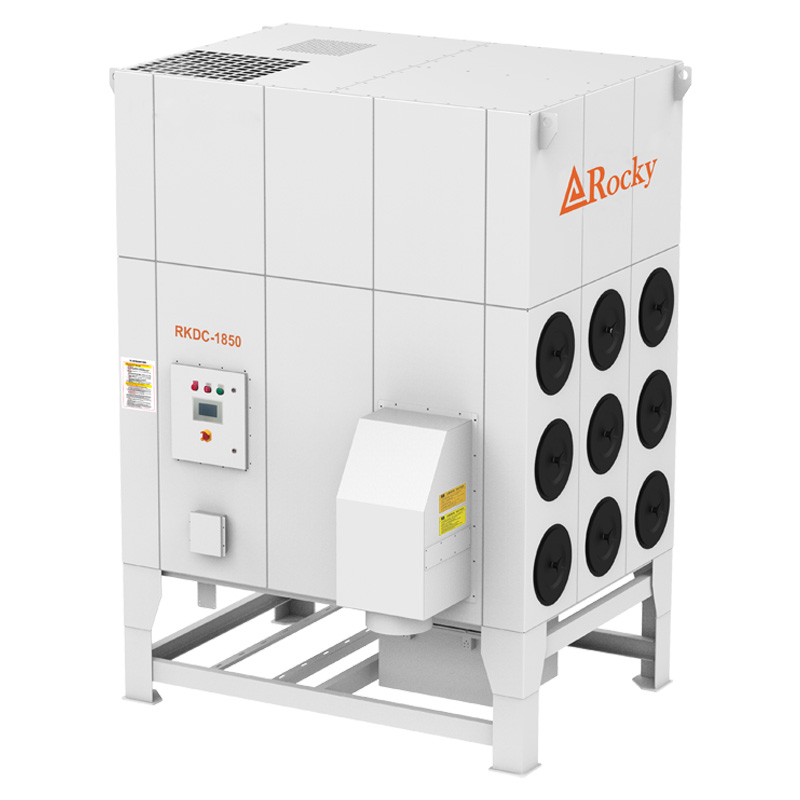

18.5kw Fiber Laser Cutting Machine Industrial Dust Collector Rkdc-1850 CNC Cutting Fume Extractor

A fume extractor is a highly efficient industrial air purification device specifically designed to capture, filter, and purify suspended particulate matter such as fumes, dust, and aerosols generated

  • Working Pressure:4~6[ bar ]58~87[ psig ]
  • Free Air Delivery:9425[ cfm ]267[ m3/min ]
  • Working Power:18.5[ kw ]25[ hp ]

Product Details


Product feature

1. Highly Efficient Smoke Capture and Purification

Utilizing source capture methods (such as suction arms and exhaust hoods), smoke is captured before it spreads, resulting in extremely high efficiency. The equipped high-efficiency filter cartridges/elements achieve a filtration efficiency of over 99.9% for fine particulate matter.

2. Enhanced Employee Health and Production Safety

Directly reduces the risk of workers inhaling harmful substances (such as metal particles and chemical fumes).

3. Extended Equipment Lifespan and Product Quality

Purifies the overall workshop environment. Reduces dust accumulation inside precision machining equipment and circuit boards, lowering equipment failure rates and maintenance costs.

4. Energy Saving, Environmental Protection, and Cost Reduction

Most equipment employs a recirculation design, returning purified air to the indoor environment instead of directly venting it outdoors.


Technical Parameters

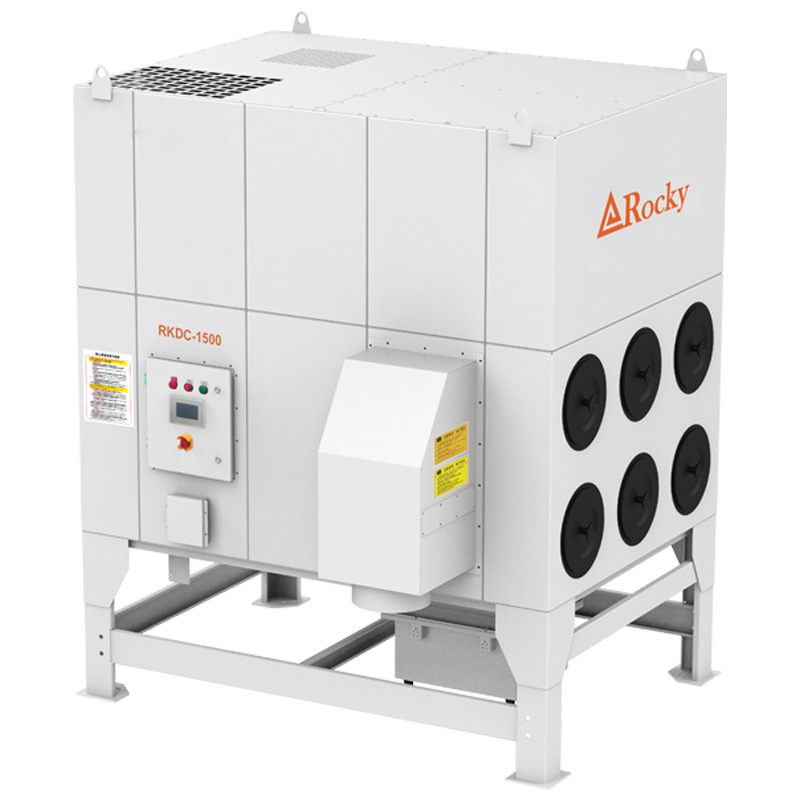

ModleRKDC-1500RKDC-1850RKDC-2200
Power(KW)15 18.5 22
Supply(V/HZ)380/50
Maximum  airvolume(m³/h)12000 16000 20000
Maximum pressure(pa)///
Filter MaterialNano flame retardant composite fibers
Filter installation methodRotation+locking mechanism
Filter PrincipleNegative pressure reverse blowing type
Requirements for blowback gas source(MPa)0.4~0.6(Oil free and water free compressed air)
Number of filtercartridges12 18 24
Cartridge specification(mm)φ325*660
Filter area  (m²)276 414 552
Filtration(μm)0.3~3.0
Airinlet diameter(mm)500 550 600
Weight(kg)1120 1700 1900
Dimension(mm)2105*1952*25832215*1516*32932215*1516*3750
