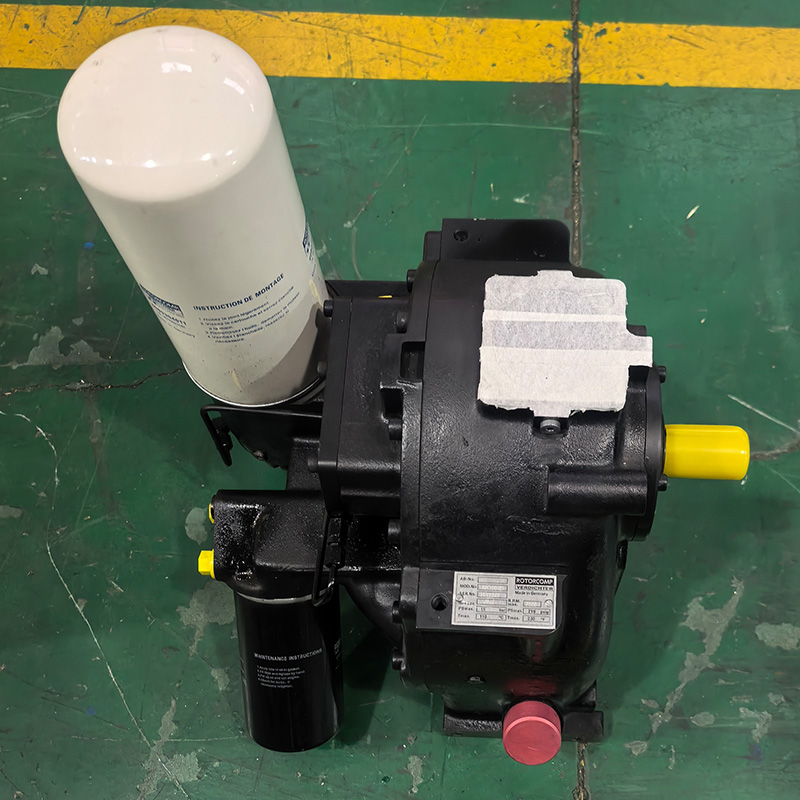

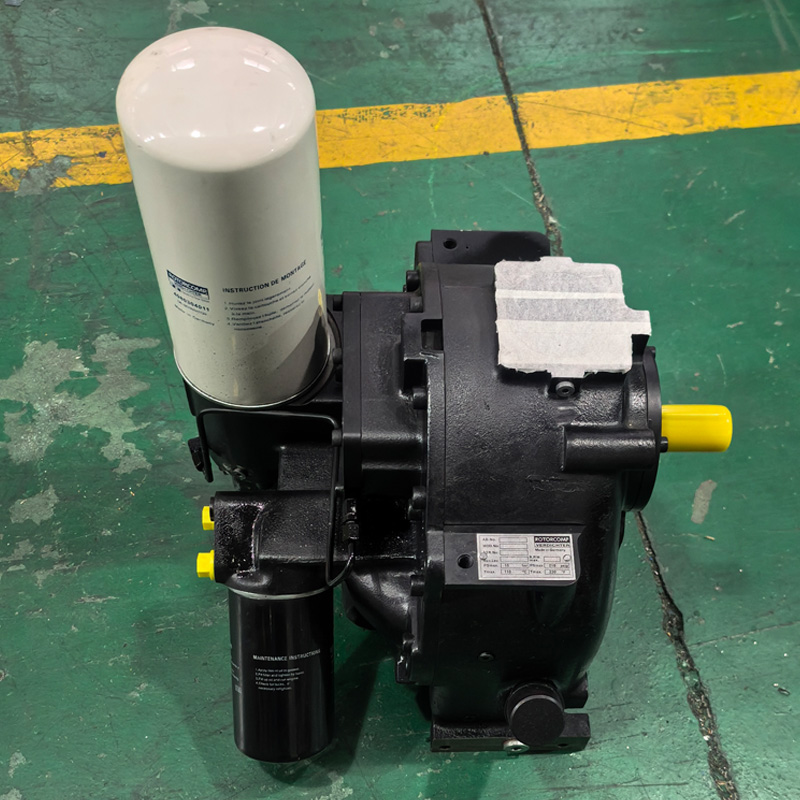

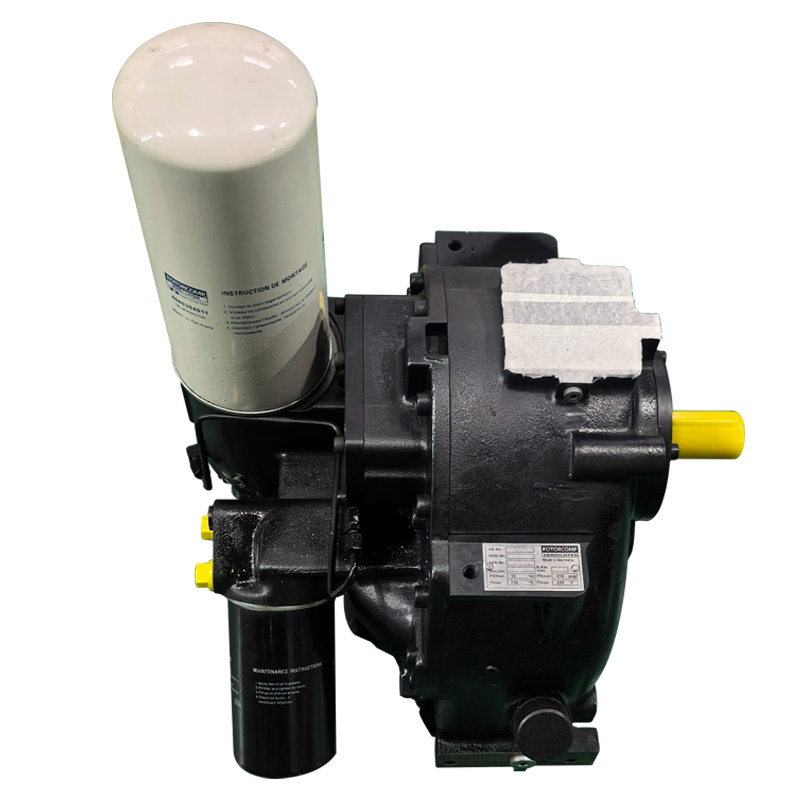

Screw Air Compressor Head Rotorcomp Air End NK-100

The ROTORCOMP NK series is an industrial-grade screw air compressor air end that uses twin-screw meshing compression technology to compress and deliver air to subsequent systems.

  • Working Pressure:5~15[ bar ]72.5~217.5[ psig ]
  • Free Air Delivery:152[ cfm ]4.3[ m3/min ]
  • Working Power:30[ kw ]40[ hp ]

Product Details


Performance Advantages

1. High Energy Efficiency and Energy Saving

Industry-leading specific power, significantly reducing long-term operating power consumption.

2. Low Noise and Vibration

Highly dynamically balanced rotor and precision bearings ensure smooth operation, with noise levels lower than industry norms.

3. Long Lifespan and Low Maintenance

Rotor surface hardening treatment (e.g., DLC coating), bearing life exceeding 60,000 hours, requiring only periodic oil and filter changes.

4. Wide Operating Condition Adaptability

Supports high pressure (8–40 bar) and wide temperature environments, suitable for harsh industrial scenarios.


Technical Parameters

Model

Motor Power

(min~max)

Max Flow rate

Pressure Range

Weight


kW

HP

m3/min

cfm

bar

psi

kg

EVO1-NK

2.2~5.5

3~7.5

0.8

30

5~15

7~220

31

EVO2-NK

4~11

5~15

1.6

60

5~15

7~220

40

NK31

3~7.5

5~10

1.2

43

5~15

7~220

39

EVO3-NK

7.5~18.5

10~25

2.8

100

5~15

7~220

54

EVO6-NK

15~37

20~50

5.5

200

5~15

7~220

99

EVO9-NK

22~55

30~75

8.4

300

5~15

7~220

199

NK200

45~75

60~100

11.5

408

5~15

7~220

263
