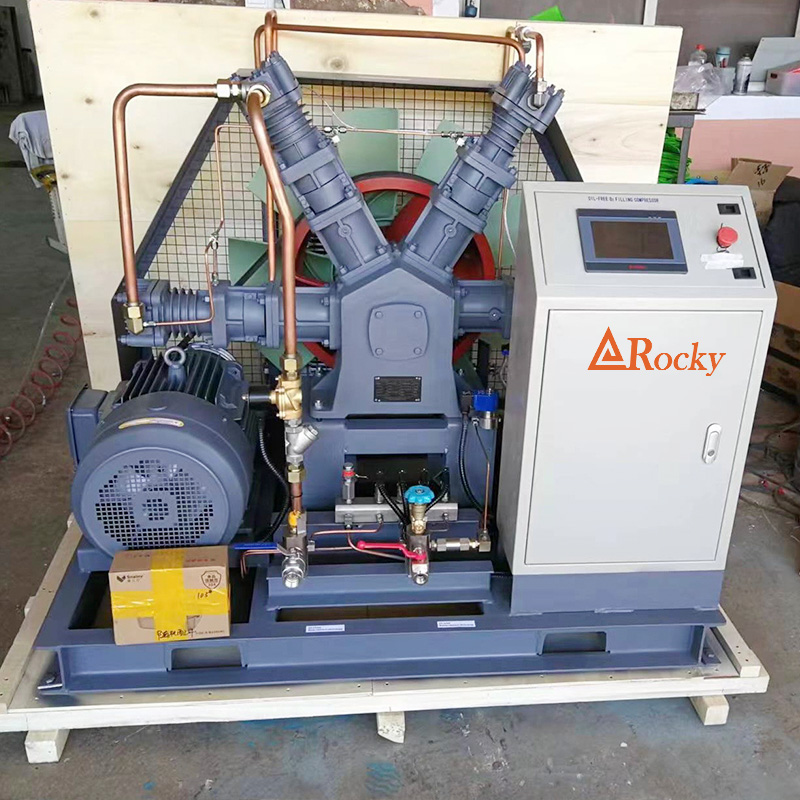

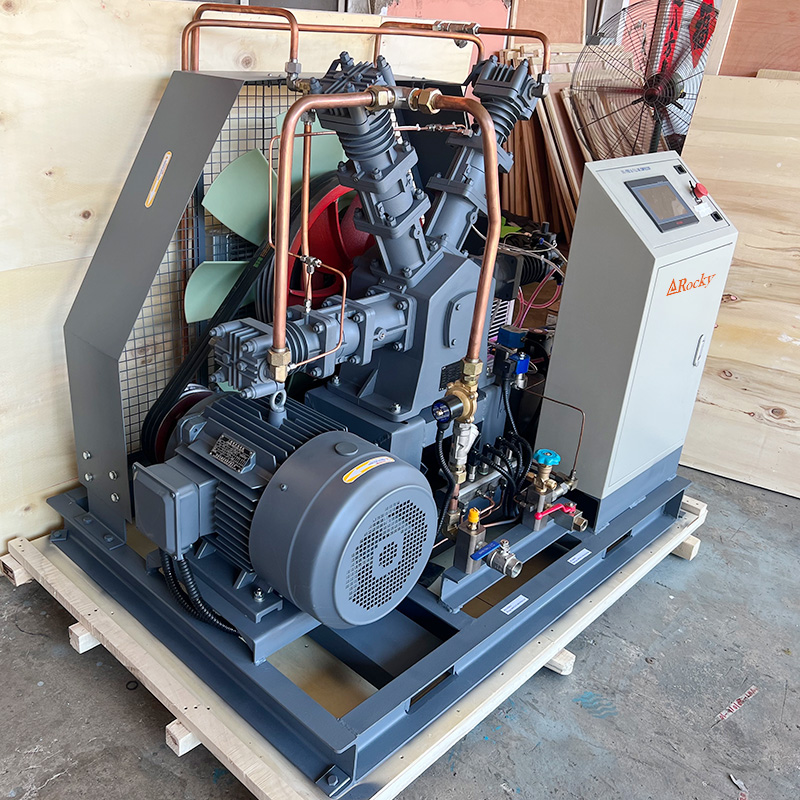

70Nm³/h High-pressure Oil-free Nitrogen Booster Compressor for Chemical Plants

An oxygen/nitrogen booster is a specialized device specifically designed to increase the pressure of specific gases such as oxygen or nitrogen.

  • Working Pressure:4~15[ bar ]58~217.5[ psig ]
  • Free Air Delivery:2.8~42.4[ cfm ]0.08~1.2[ m3/min ]
  • Working Power:4~22[ kw ]5~30[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

ROCKY CATALOG 2025 VERSION Rocky High Pressure Gas Booster Compressor Catalog Rocky High Pressure Breathing Air Compressor Catalog 2025 Rocky Medium High pressure air compressor catalog

Product Details


RKSWY系列 (15).jpg

Technical Parameters

Model No.

Flow

 rate

(Nm³/h)		Inlet
pressure
(Mpa)		Exhaust
pressure
(Mpa)		Power
(kw)

Cylinder

 bore

Inlet connection
size		Outlet
connection
sizes		Overall dimension
(mm)

Weight

(kg)		Speed
(r/min)
RKWWY-5/4-1505 0.4 15 4 Ø50+Ø30+Ø20Rc1/2G5/81350X1000X1100400 470
RKWWY-10/4-15010 0.4 15 5.5 Ø65+Ø36+Ø20Rc1/2G5/81350X1000X1100410 470
RKWWY-15/4-15015 0.4 15 7.5 Ø65+Ø36+Ø20Rc1/2G5/81350X1000X1100420 640
RKWWY-20/4-15020 0.4 15 11 Ø70+Ø36+Ø20Rc1/2G5/81350X1000X1100430 580
RKWWY-25/4-15025 0.4 15 11 Ø70+Ø36+Ø20Rc1/2G5/81350X1000X1100430 640
RKWWY-30/4-15030 0.4 15 15 Ø90+Ø50+Ø30Rc1/2G5/81350X1000X1100450 470
RKWWY-35/4-15035 0.4 15 15 Ø90+Ø50+Ø30Rc1/2G5/81350X1000X1100450 500
RKWWY-40/4-15040 0.4 15 15 Ø90+Ø50+Ø30Rc1/2G5/81350X1000X1100450 580
RKSWY-45/4-15045 0.4 15 18.5 2-Ø70+Ø50+Ø30Rc1/2G5/81450X1100X1250520 580
RKSWY-50/4-15050 0.4 15 18.5 2-Ø70+Ø50+Ø30Rc1/2G5/81450X1100X1250520 580
RKSWY-55/4-15055 0.4 15 18.5 2-Ø70+Ø50+Ø30Rc1G5/81450X1100X1250520 640
RKSWY-60/4-15060 0.4 15 22 2-Ø70+Ø50+Ø30Rc1G5/81450X1100X1250540 720
RKSWY-65/4- 15065 0.4 15 22 2- Φ70+ Φ50+ Φ30Rc1G5/81450*1100*1250540 720
RKSWY-70/4- 15070 0.4 15 22 2- Φ70+ Φ50+ Φ30Rc1G5/81450*1100*1250540 720
