30 bar CE Certified Oil-Free Piston Booster Compressor Designed for Medical Oxygen

A compressor is a machine that uses mechanical means to increase the pressure of low-pressure oxygen to the required high pressure.

  • Working Pressure:5~30[ bar ]72.5~435[ psig ]
  • Free Air Delivery:11.7~141.2[ cfm ]0.33~4[ m3/min ]
  • Working Power:3~30[ kw ]4~40[ hp ]

Product Details

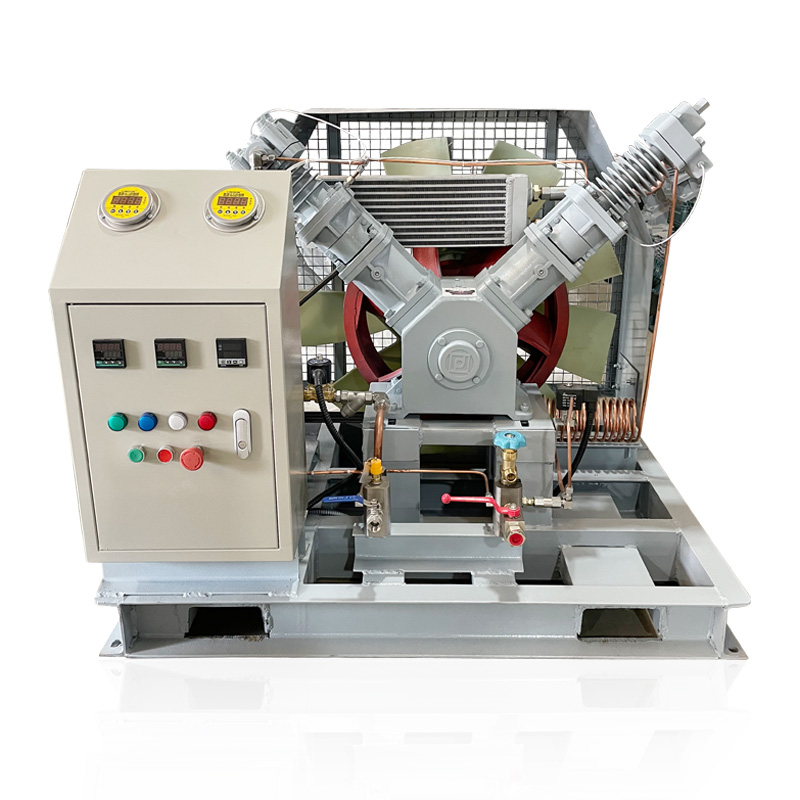

RVWN系列 (20).jpg

Product features

1. Critical Safety Design, Features oil-free compression and oxygen-compatible materials to eliminate fire and explosion risks.

2. High-Pressure Output reliably boosts pressure to the essential 30 bar level required for demanding processes like laser cutting and oxidation.

3. Process Reliability, ensures a stable and pure oxygen supply, protecting sensitive downstream equipment and ensuring consistent results.

4. Operational Efficiency, provides a cost-effective solution to generate high-pressure oxygen on-site, avoiding the need for expensive bottled gas.

5. Robust & Durable, engineered for continuous operation with minimal maintenance, maximizing uptime in industrial environments.



Technical Parameters

ModelInlet P (Mpa)Outlet P (Mpa)

Capacity

(m3/h)

Motor Power(Kw)Dimension L*W*H(mm)CompressionInlet sizeOutlet SizeWeight (kg)
RVWN-20/5-300.5 3 20 3 1250x500x9002 Rc1/2Rc1/2210
RVWN-30/5-300.5 3 30 5.5 1250x600x9002 Rc1Rc1250
RVWN-40/5-300.5 3 40 5.5 1250x600x9002 Rc1Rc1250
RVWN-50/5-300.5 3 50 7.5 1250x600x9002 Rc1Rc1270
RVWN-60/5-300.5 3 60 7.5 1250x600x9002 Rc1Rc1270
RVWN-70/5-300.5 3 70 11 1250x700x9002 Rc1Rc1300
RWWN-80/5-300.5 3 80 11 1350x700x12002 Rc1Rc1380
RWWN-100/5-300.5 3 100 11 1350x700x12002 Rc1Rc1380
RWWN-120/5-300.5 3 120 15 1350x700x12002 Rc1Rc1410
RSWN-140/5-300.5 3 140 18.5 1500x800x12002 Rc1Rc1490
RSWN-160/5-300.5 3 160 18.5 1500x800x12002 Rc1Rc1490
RWWN-200/5-30-‖0.5 3 200 11x21600x1600x12002 Rc11/2Rc1940
RWWN-240/5-30-‖0.5 3 240 15x21600x1600x12002 Rc11/2Rc11000
