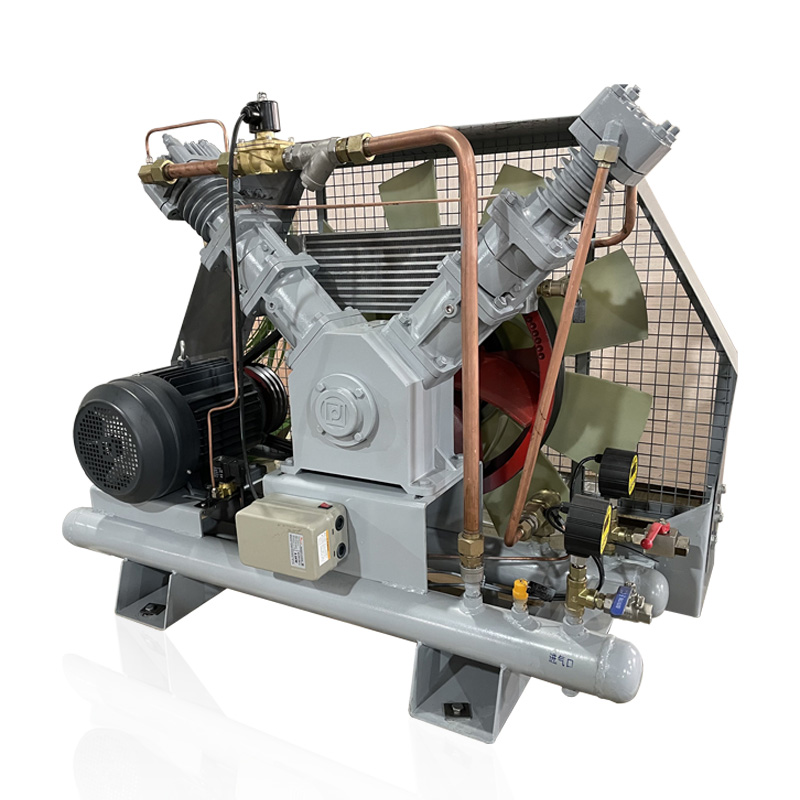

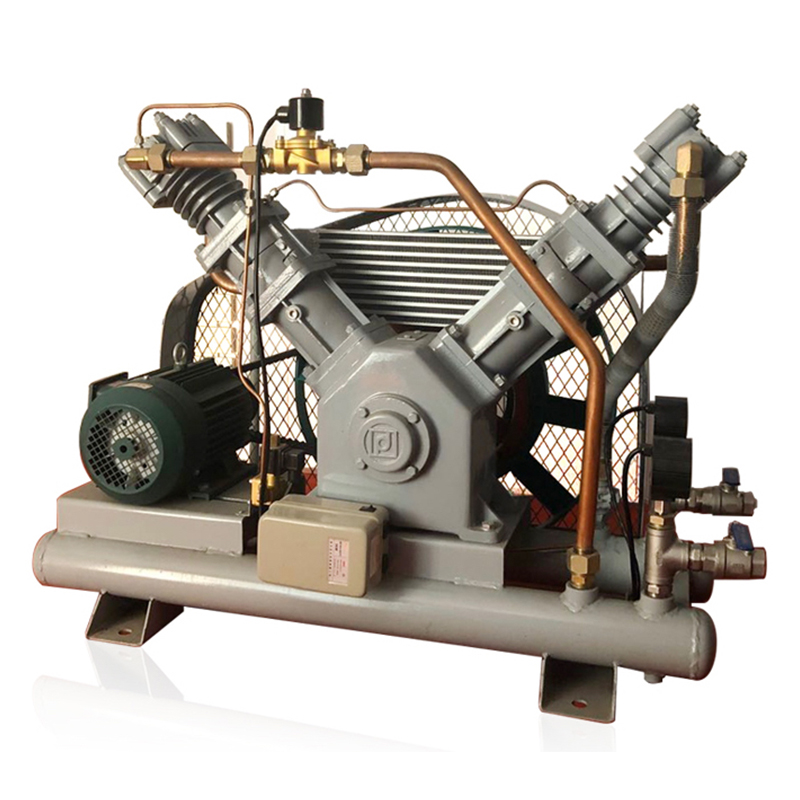

High-pressure oxygen booster compressors for high-pressure oxygen chambers

An oxygen booster compressor is a specialized compressor that uses an oil-free lubrication design to compress low-pressure oxygen from cylinders, pipelines, or oxygen generators to a pressure of 150 b

  • Working Pressure:5~50[ bar ]72.5~725[ psig ]
  • Free Air Delivery:12~141[ cfm ]0.34~4[ m3/min ]
  • Working Power:4~37[ kw ]5~50[ hp ]

Product Details

Product features

1. Critical Safety Design, Features oil-free compression and oxygen-compatible materials to eliminate fire and explosion risks.

2. High-Pressure Output reliably boosts pressure to the essential 30 bar level required for demanding processes like laser cutting and oxidation.

3. Process Reliability, ensures a stable and pure oxygen supply, protecting sensitive downstream equipment and ensuring consistent results.

4. Operational Efficiency, provides a cost-effective solution to generate high-pressure oxygen on-site, avoiding the need for expensive bottled gas.

5. Robust & Durable, engineered for continuous operation with minimal maintenance, maximizing uptime in industrial environments.




Technical Parameters

ModelInlet P (Mpa)Outlet P (Mpa)Capacity(Nm3/h)

Motor

Power

(Kw)

Dimension L*W*H(mm)CompressionInlet sizeOutlet SizeWeight (kg)
VWN-20/5-500.5 20 1250x550x900Rc1/2Rc1/2230
WWN-30/5-500.5 30 5.5 1350x600x1200Rc1Rc1/2320
WWN-40/5-500.5 40 7.5 1350x600x1200Rc1Rc1/2350
WWN-50/5-500.5 50 11 1350x700x1200Rc1Rc1/2380
WWN-60/5-500.5 60 11 1350x700x1200Rc1Rc1/2380
WWN-70/5-500.5 70 11 1350x700x1200Rc1Rc1/2380
WWN-80/5-500.5 80 15 1350x700x1200Rc1Rc1/2410
SWN-100/5-500.5 100 15 1500x800x1250Rc1Rc1/2480
SWN-120/5-500.5 120 18.5 1500x850x1250Rc1Rc1/2510
SWN-140/5-500.5 140 22 1500x850x1250Rc1Rc1/2540
WWN-160/5-50-‖0.5 160 15x21600x1600x1200Rc1Rc1/21000
SWN-200/5-50-‖0.5 200 15x22800x1300x1250Rc11/2Rc1/21250
SWN-240/5-50-‖0.5 240 18.5x22800x1300x1250Rc11/2Rc1/21300
