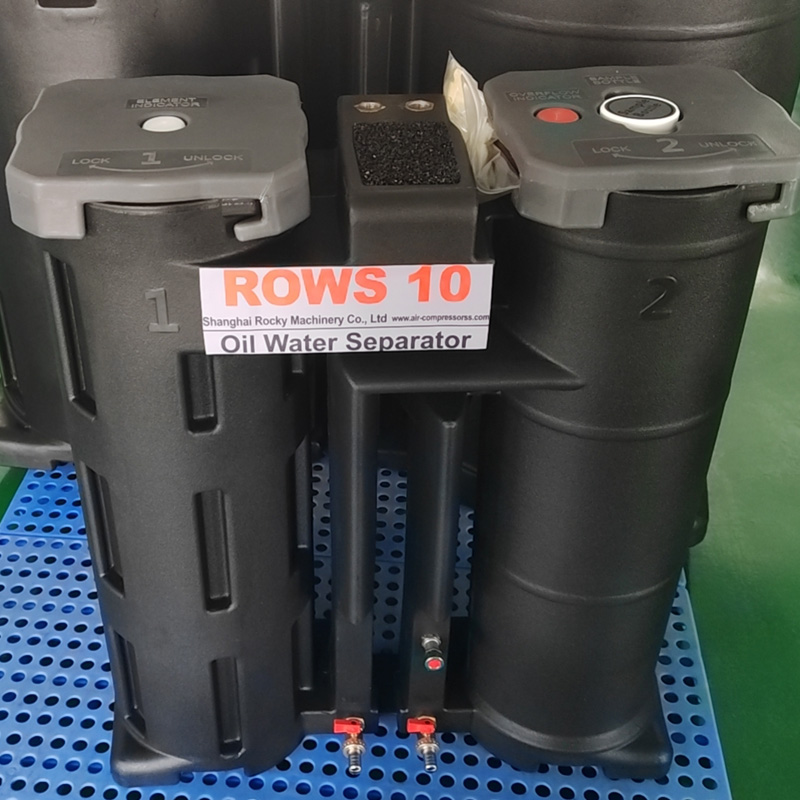

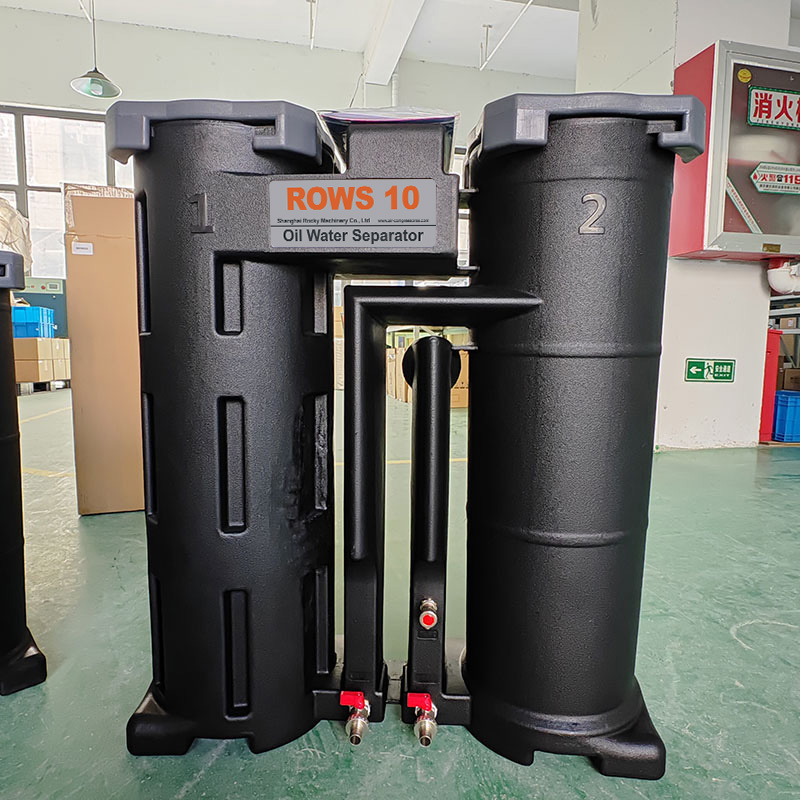

Oil-water separator and waste oil collector for air compressors

An oil-water separator is a device or system used to separate oil and water from a mixture.

  • Working Pressure:7~20[ bar ]101.5~290[ psig ]
  • Free Air Delivery:10.6~2295[ cfm ]0.3~65[ m3/min ]
  • Working Power:7.5~250[ kw ]10~50[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

ROCKY CATALOG 2025 VERSION Rocky High Pressure Gas Booster Compressor Catalog Rocky High Pressure Breathing Air Compressor Catalog 2025 Rocky Medium High pressure air compressor catalog

Product Details

Key Features

1. Physical Separation: Uses density difference without chemicals, ensuring simple, stable operation.

2. Efficient Interception: Removes floating, dispersed, and emulsified oils, lowering wastewater oil content.

3. Modular & Compact: Easy to install, expand, and maintain.

4. Automated Operation: Enables unattended operation with auto-discharge systems.

5.Regulatory Compliance: Meets environmental standards, avoiding fines and legal risks.

Technical Parameters

ModelROWS2ROWS5ROWS10ROWS20ROWS30ROWS60
Max. compressor capacity
(Based on a 8 hour shift)		2 m3/min5 m3/min  10 m3/min20 m3/min30 m3/min60 m3/min
Max. oil absorption1.96 L4.9 L9.8 L14.6 L24.6 L49.2 L
Inlet  1 * G1/2"2 * G1/2"  2 * G1/2"2 * G1/2"2 * G1/2"2 * G1/2"
OutletG1/2"G 1"G 1"G 1"G 1"G 1"
Test valveYes
Sample bottleYes
Service drain valvesNo
Yes
Element indicatorNoYes
Overflow indicatorNoYes
Oil content<10 PPM<10 PPM
<10 PPM<10 PPM<10 PPM
Material of housingPEPE
PEPEPE
Dimensions
(mm)		375*155*265555*195*610655*245*750785*310*900975*385*9001155*475*1045
N.W.( kg)3.51120304785
