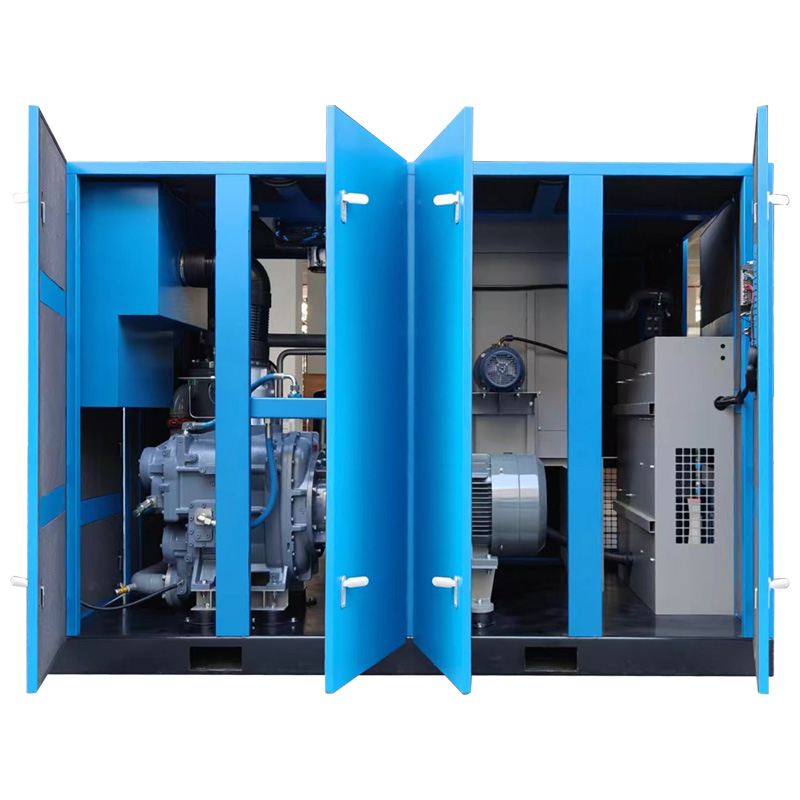

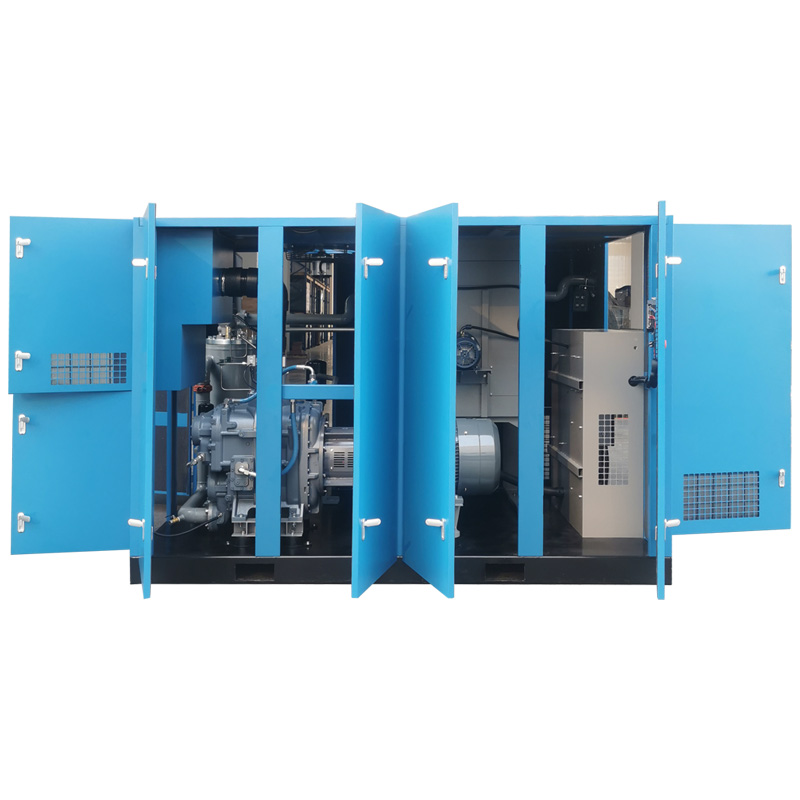

75 HP Two-Stage Screw Air Compressor PM VSD for Stable 5.5 bar for Textile Manufacturing

The 5.5 bar two-stage compression screw air compressor is a high-efficiency air compressor specifically designed for medium and low-pressure industrial air requirements.

  • Working Pressure:5.5[ bar ]79.8[ psig ]
  • Free Air Delivery:677.8[ cfm ]19.2[ m3/min ]
  • Working Power:75[ kw ]100[ hp ]

Product Details

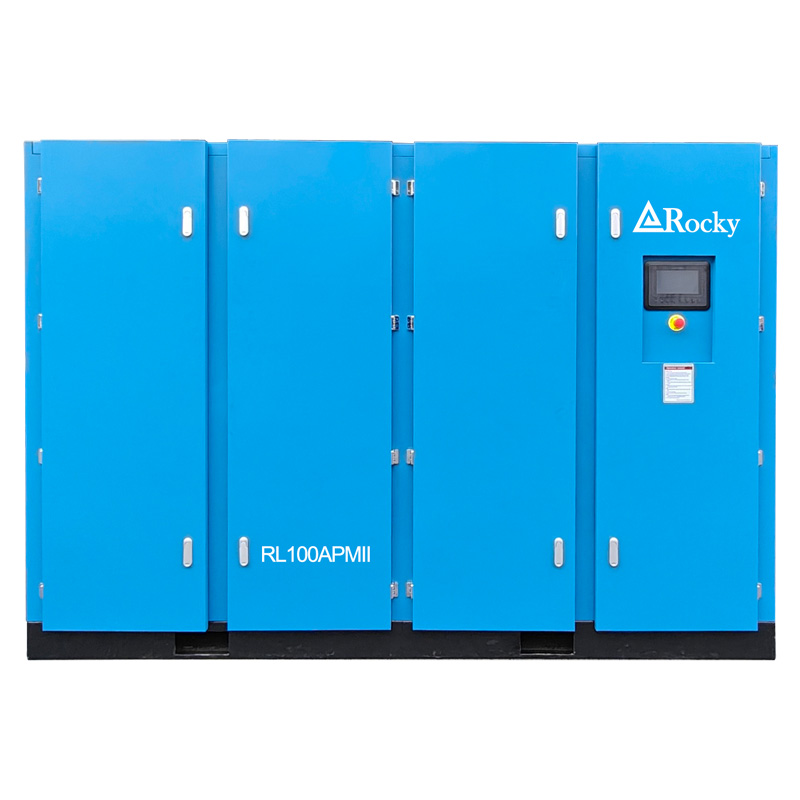

RL100APMII (11).jpg

Product features

1.Two-stage compression

Higher efficiency (10-15% more than single-stage) and lower operating temperature, extending lifespan.

2. Permanent Magnet Variable Speed Drive (PM VSD):

Precisely matches air output to demand, saving 20-40% in energy with ±0.1 bar pressure stability.

3. Optimized for 5.5 bar

Tailored for common plant tools, avoiding energy waste from over-compression.

4. High Reliability

Balanced load reduces wear, and integrated design ensures stable, low-noise operation.


Technical Parameters

5.5 bar Low-pressure Two-stage PM VSD Screw Air Compressor
ModelAir Delivery (m³/min)Power
(kW/hp)
Noise
dB(A)
Outlet
diameter
Dimensions(mm)Weight
(kg)
5.5 barL*W*H
RL60APMII12.0 45/6068 DN652450*1700*17601450
RL75APMII15.0 55175 70 DN652450*1700*17601800
RL100APMII19.2 75/10070 DN652450*1700*17602000
RL125APMII23.0 90/12572 DN802604*1904*18922700
RL150APMII27.90 110/15072 DN802604*1904*18923200
RL175APMII33.30 132/17572 DN1003000*1900*19503100
RL220APMII41.50 160/22078 DN1003000*1900*19504400
RL250APMII43.50 185/25078 DN1253600*2200*22005500
RL270APMII50.50 200/27078 DN1253600*2200*22006000
RL300APMII55.06 220/30080 DN1504000*2300*23006800
RL350APMII60.45 250/35080 DN1504000*2300*23007500
