2900m3/H Laser Cutting Dust Collector Mobile Dust Collector for Welding Fume

A smoke dust collector is an industrial filtration device designed to capture smoke, dust, and harmful fumes from the air, ensuring cleaner working environments and regulatory compliance.

  • Working Pressure:7~20[ bar ]101.5~290[ psig ]
  • Free Air Delivery:1705~11766[ cfm ]48.3~333[ m3/min ]
  • Working Power:3~22[ kw ]4~30[ hp ]

Product Details

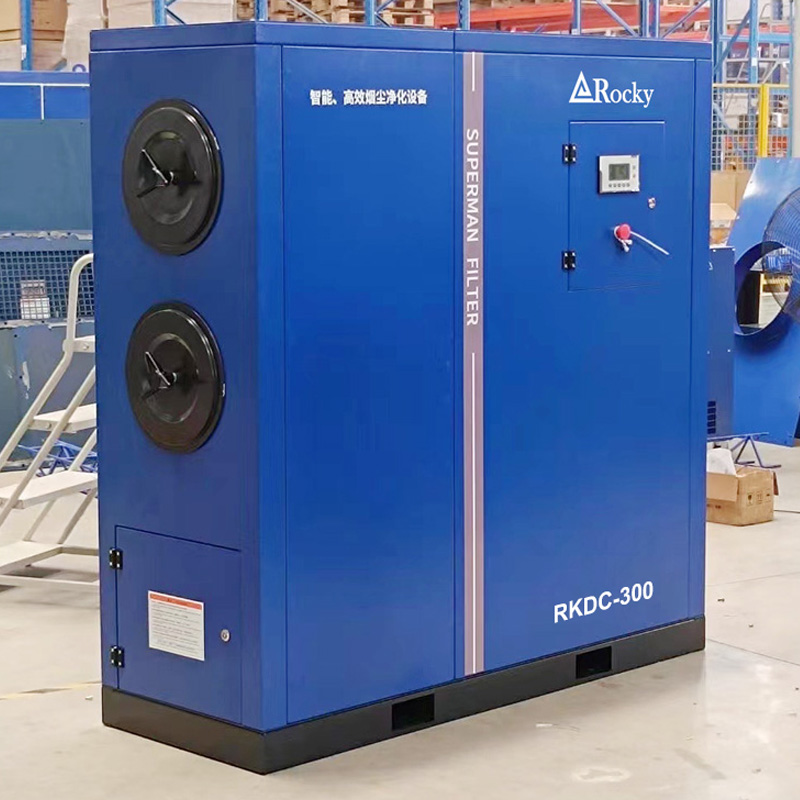

RKDC-300 (2).jpg

Smoke Dust Collector features

  • Efficiently captures coarse & fine dust, smoke, and fumes

  • Automatic pulse jet cleaning – low maintenance, continuous operation

  • Nano flame-retardant filter cartridges (imported media) – filtration down to 0.3μm

  • 99.97%+ filtration efficiency – meets strict environmental standards

  • Reliable for 24/7 operation in tough conditions

  • Energy-saving design – high suction, lower power consumption

  • Compact – easy to integrate into existing lines

  • Low maintenance – long filter life, easy access

  • Fire-safe – flame-retardant media for welding, laser, chemical fumes

Technical Parameters

                                                                            Dust Colllector Technical Parameters
ModelRKDC-300RKDC-550RKDC-750RKDC-1100RKDC-1500RKDC-1850RKDC-2200
Motor Power (kW)35.57.5111518.522
Power Supply (V/Hz)380/50
Max. Airflow (m3/h)29004500720010000120001600020000
Max. Total Pressure (Pa)2000200025002800///
Filter MaterialNano Flame-Retardant Composite Fiber
Filter Mounting TypeRotary Locking Mechanism
Filtration PrincipleNegative-Pressure Back-Flush Design
Reverse Pulse Air Requirement (MPa)0.6 Oil-free and water-free compressed air0.7~0.8 Oil-free and water-free compressed air0.6~0.8 Oil-free and water-free compressed air
Number of Filter Cartridges2468121824
Filtration Area (m2)4692138184276414552
Filtration Accuracy (Um)0.3~3.0
Inlet Diameter (mm)250250300300300550600
Weight (kg)420520620790112017001900
Dimensions (L*W*H) mm1800*622*17451431*1405*21881504*1431*26882105*1605*25832105*1952*25832215*1516*25832215*1516*3750
