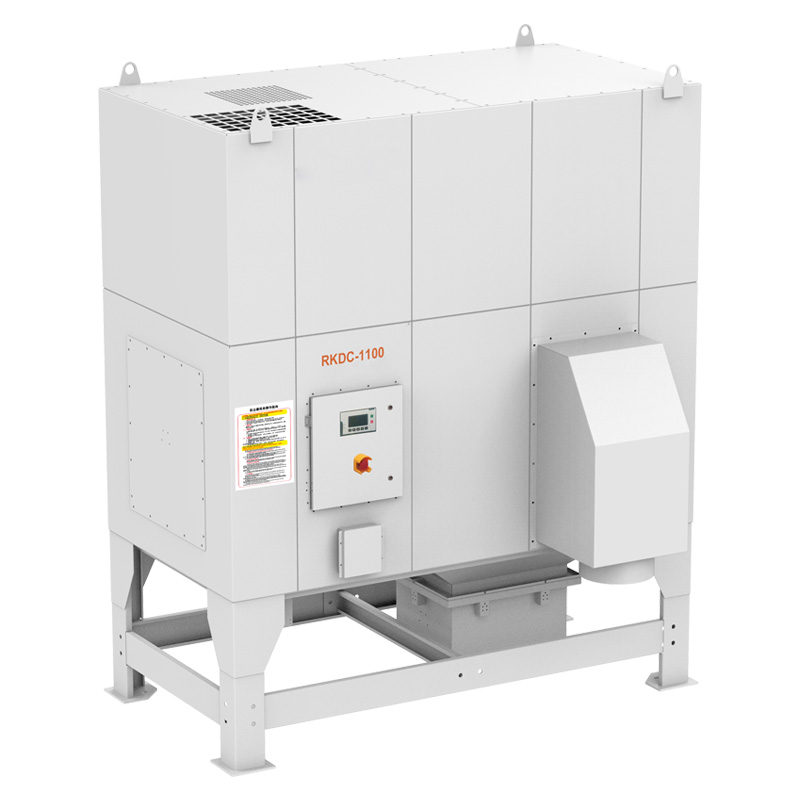

High-Efficiency Laser Cutting Fume Extractor – 99.9% Filtration, EPA Compliant

A laser cutting fume extractor is an air filtration system that removes hazardous smoke and dust produced when a laser cuts materials like metal, wood, or plastic.

  • Working Pressure:7~20[ bar ]101.5~290[ psig ]
  • Free Air Delivery:123.6~2295[ cfm ]3.5~65[ m3/min ]
  • Working Power:7.5~250[ kw ]10~350[ hp ]

Product Details


Product features

1. 99.9% Filtration Efficiency – Captures fine smoke and dust particles.

2. Cleaner Workspace – Removes harmful fumes for a safer environment.

3. Low Maintenance – Long-life filters with pulse jet cleaning.

4. Energy Efficient – Reduces power consumption while maintaining high suction.

5. Quiet Operation – Low noise level suitable for indoor use.

6. Compact & Portable – Easy to move and install near your laser cutter.

7. Complies with EPA/OSHA Standards – Meets workplace air quality regulations.


Technical Parameters

Dust Colllector Technical Parameters

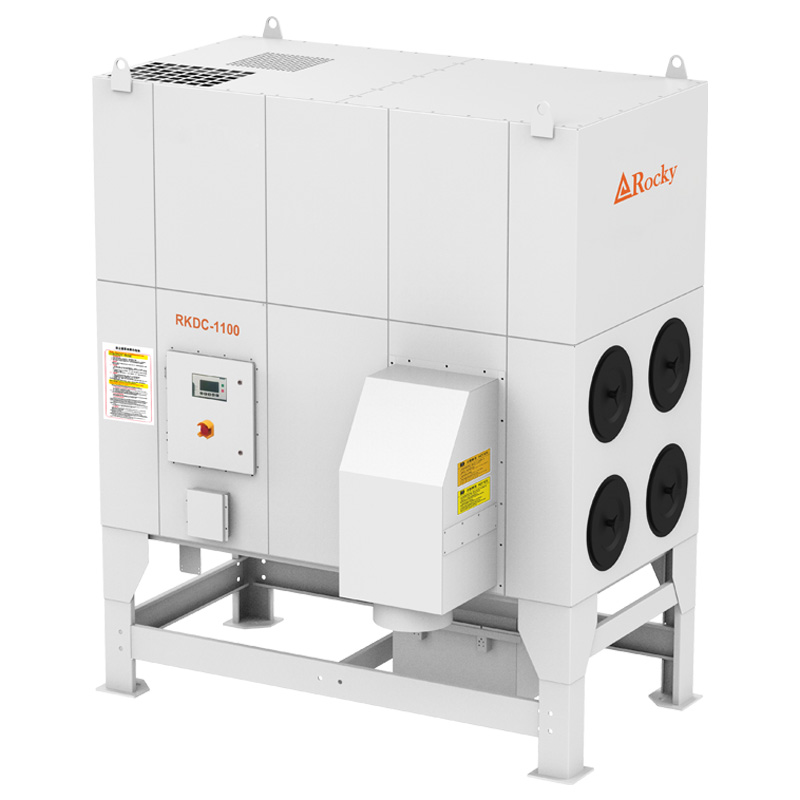

ModelRKDC-300RKDC-550RKDC-750RKDC-1100RKDC-1500RKDC-1850RKDC-2200
Motor Power (kW)35.57.5111518.522
Power Supply (V/Hz)380/50
Max. Airflow (m3/h)29004500720010000120001600020000
Max. Total Pressure (Pa)2000200025002800///
Filter MaterialNano Flame-Retardant Composite Fiber
Filter Mounting TypeRotary Locking Mechanism
Filtration PrincipleNegative-Pressure Back-Flush Design
Reverse Pulse Air Requirement (MPa)0.6 Oil-free and water-free compressed air0.7~0.8 Oil-free and water-free compressed air0.6~0.8 Oil-free and water-free compressed air
Number of Filter Cartridges2468121824
Filtration Area (m2)4692138184276414552
Filtration Accuracy (Um)0.3~3.0
Inlet Diameter (mm)250250300300300550600
Weight (kg)420520620790112017001900
Dimensions (L*W*H) mm1800*622*17451431*1405*21881504*1431*26882105*1605*25832105*1952*25832215*1516*25832215*1516*3750
