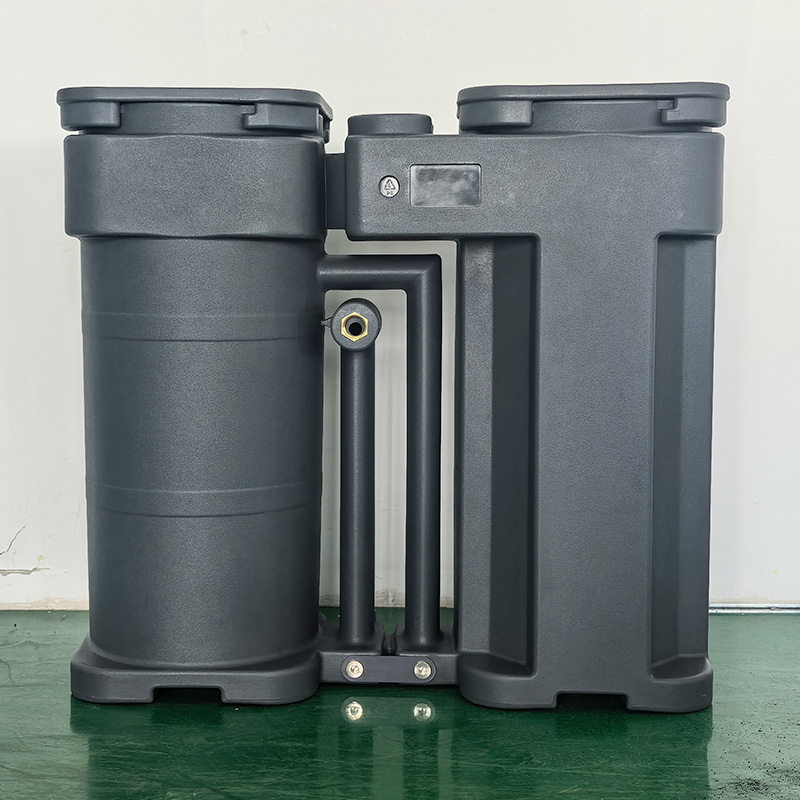

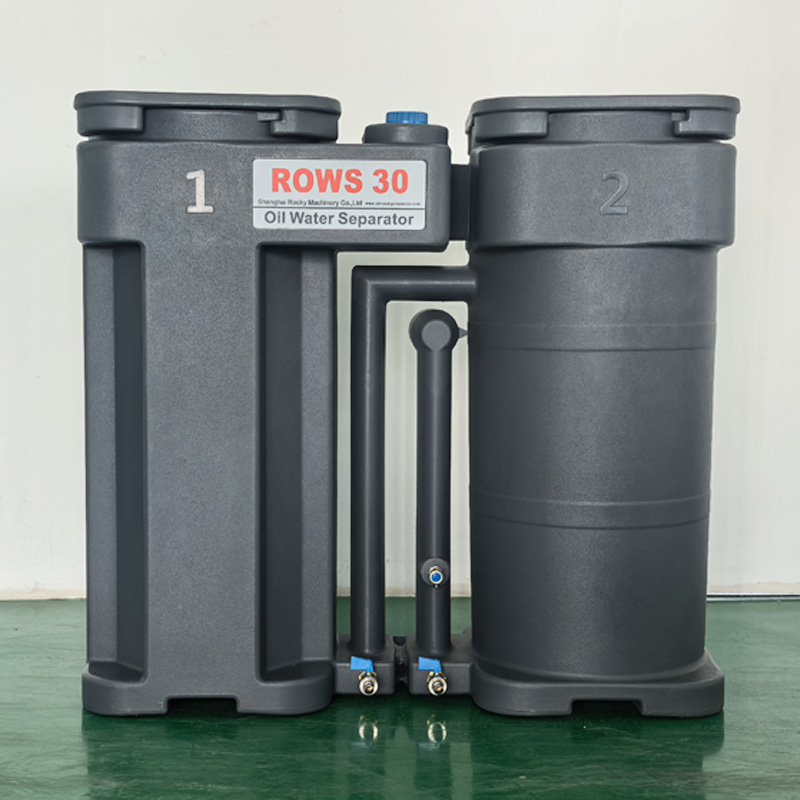

Industrial Oil-Water Separator – Removes Oil from Compressed Air Condensate, Protects the Environment

A device used to separate oil from compressed air condensate, ensuring the treated water meets environmental discharge standards (typically with oil content below 10 ppm).

  • Working Pressure:7~20[ bar ]247~706[ psig ]
  • Free Air Delivery:10.6~2295[ cfm ]0.3~65[ m3/min ]
  • Working Power:7.5~250[ kw ]10~350[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

ROCKY CATALOG 2025 VERSION Rocky High Pressure Gas Booster Compressor Catalog Rocky High Pressure Breathing Air Compressor Catalog 2025 Rocky Medium High pressure air compressor catalog

Product Details

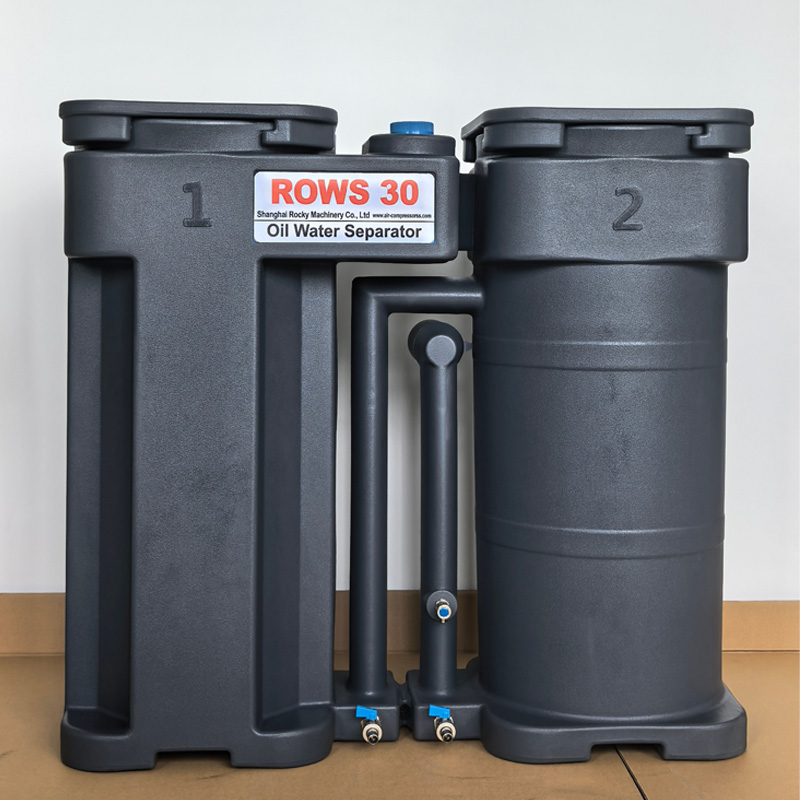

ROWS30 (3).jpg

Key Features

  • High Oil Removal Efficiency – Multi-stage filtration reduces oil content in discharged water to as low as 5–15 ppm.

  • Energy-Efficient & Eco-Friendly – No chemicals required; low or zero power consumption.

  • Easy Maintenance – Long filter cartridge service life with built-in status indicator.

  • Compliant & Reliable – Meets ISO 14001 and local discharge regulations.

  • Wide Application – Suitable for all types of oil-injected screw compressors, manufacturing, automotive, chemical, and other industries.


Technical Parameters

ModelROWS2ROWS5ROWS10ROWS20ROWS30ROWS60
Max. compressor capacity
(Based on a 8 hour shift)		2 m3/min5 m3/min  10 m3/min20 m3/min30 m3/min60 m3/min
Max. oil absorption1.96 L4.9 L9.8 L14.6 L24.6 L49.2 L
Inlet  1 * G1/2"2 * G1/2"  2 * G1/2"2 * G1/2"2 * G1/2"2 * G1/2"
OutletG1/2"G 1"G 1"G 1"G 1"G 1"
Test valveYes
Sample bottleYes
Service drain valvesNo
Yes
Element indicatorNoYes
Overflow indicatorNoYes
Oil content<10 PPM<10 PPM
<10 PPM<10 PPM<10 PPM
Material of housingPEPE
PEPEPE
Dimensions
(mm)		375*155*265555*195*610655*245*750785*310*900975*385*9001155*475*1045
N.W.( kg)3.51120304785
