Industrial Oil Water Separator for Compressed Air Condensate Treatment Meet Environmental Discharge Standards

Effectively removes oil from compressed air condensate. Prevents contaminated water from entering drains. Compact design, easy to install. Ideal for factories, workshops, and production lines with oil

  • Working Pressure:7~20[ bar ]101.5~290[ psig ]
  • Free Air Delivery:10.59~2295[ cfm ]0.3~65[ m3/min ]
  • Working Power:7.5~350[ kw ]10~466[ hp ]

Product Details

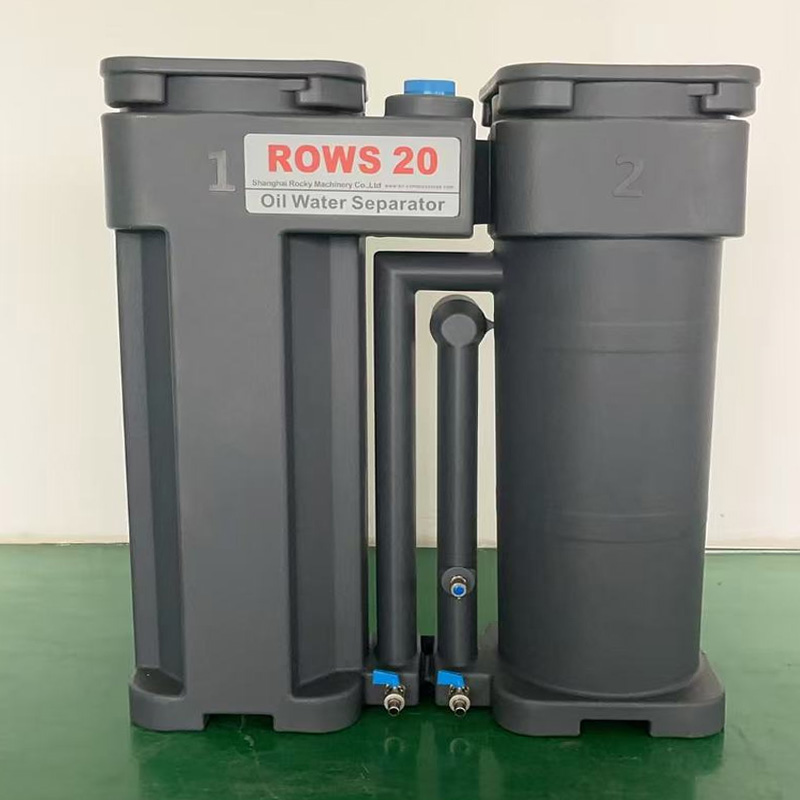

ROWS 20.jpg

Product features

Efficient Oil Removal – Reduces oil content in condensate to below 5 ppm, meeting environmental discharge standards.

Advanced Filtration Technology – Combines coalescing and activated carbon filtration for thorough oil-water separation.

Automatic Operation – Equipped with auto-drain function, minimizing manual intervention and maintenance.

Compact & Space-Saving Design – Small footprint, easy to install in existing compressor rooms.

Reliable & Durable – Robust construction, suitable for continuous industrial operation.

Compliance Guaranteed – Helps facilities meet ISO 14001 and local environmental regulations.

Low Operating Cost – Minimal energy consumption and extended service life of consumables.


Technical Parameters

ModelROWS2ROWS5ROWS10ROWS20ROWS30ROWS60
Max. compressor capacity
(Based on a 8 hour shift)
2 m3/min5 m3/min  10 m3/min20 m3/min30 m3/min60 m3/min
Max. oil absorption1.96 L4.9 L9.8 L14.6 L24.6 L49.2 L
Inlet  1 * G1/2"2 * G1/2"  2 * G1/2"2 * G1/2"2 * G1/2"2 * G1/2"
OutletG1/2"G 1"G 1"G 1"G 1"G 1"
Test valveYes
Sample bottleYes
Service drain valvesNo
Yes
Element indicatorNoYes
Overflow indicatorNoYes
Oil content<10 PPM<10 PPM<10 PPM<10 PPM<10 PPM<10 PPM
Material of housingPEPEPEPEPEPE
Dimensions
(mm)
375*155*265555*195*610655*245*750785*310*900975*385*9001155*475*1045
N.W.( kg)3.51120304785
