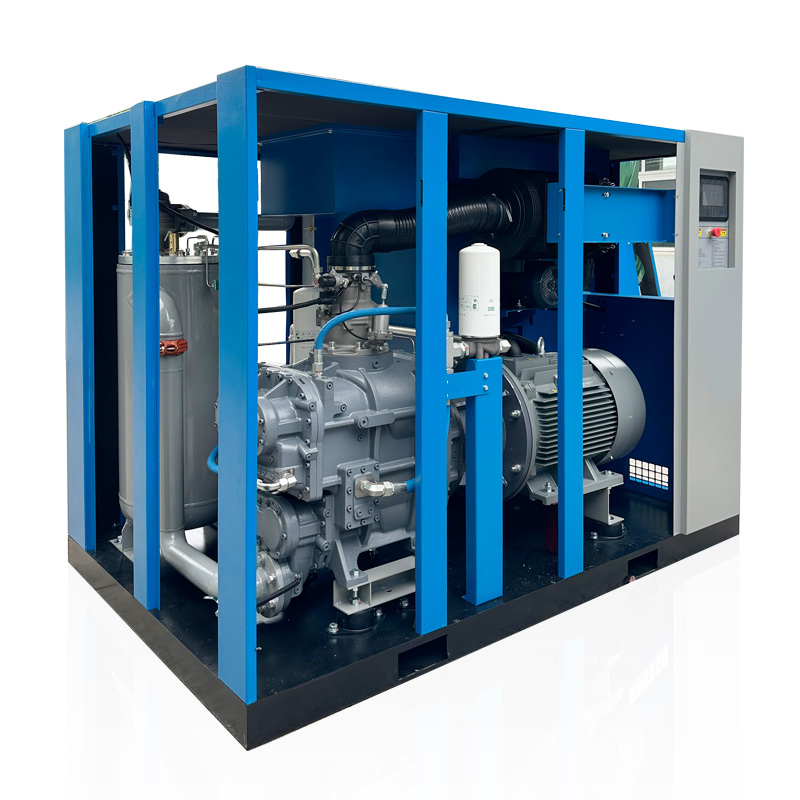

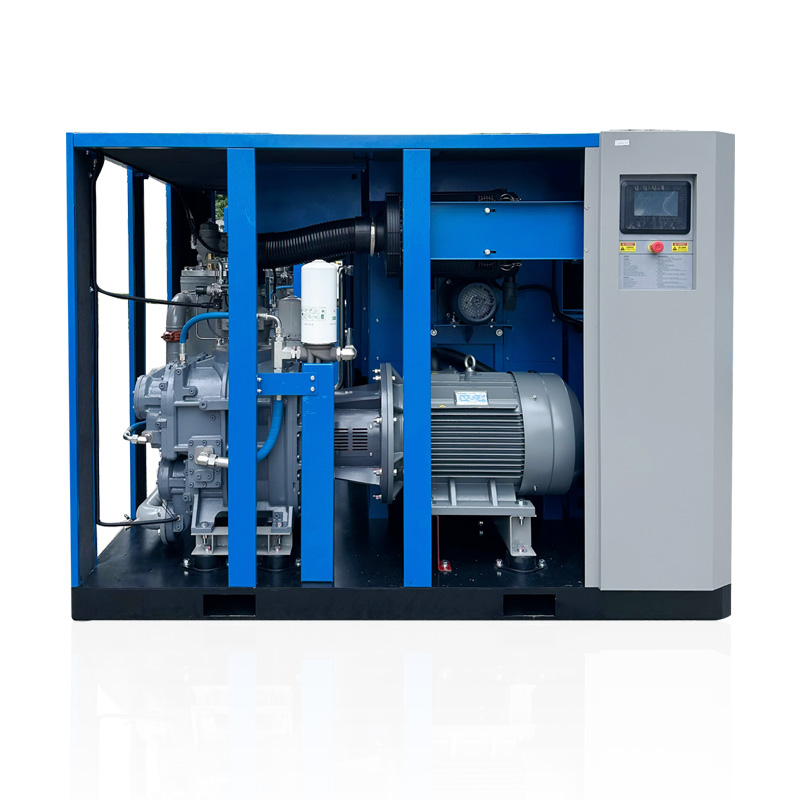

75kW Two Stage Permanent Magnet VSD Energy Saving Industrial Air Compressor

The RK100APMII is a 75kW 100HP two-stage permanent magnet VSD screw air compressor delivering 16m³/min at 8bar with 30% energy savings, ±0.1bar stable pressure, and CE certification for continuous ind

  • Working Pressure:7~13[ bar ]101.5~188.5[ psig ]
  • Free Air Delivery:134~564[ cfm ]3.8~16[ m3/min ]
  • Working Power:75[ kw ]100[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

ROCKY CATALOG 2025 VERSION Rocky High Pressure Gas Booster Compressor Catalog Rocky High Pressure Breathing Air Compressor Catalog 2025 Rocky Medium High pressure air compressor catalog

Product Details

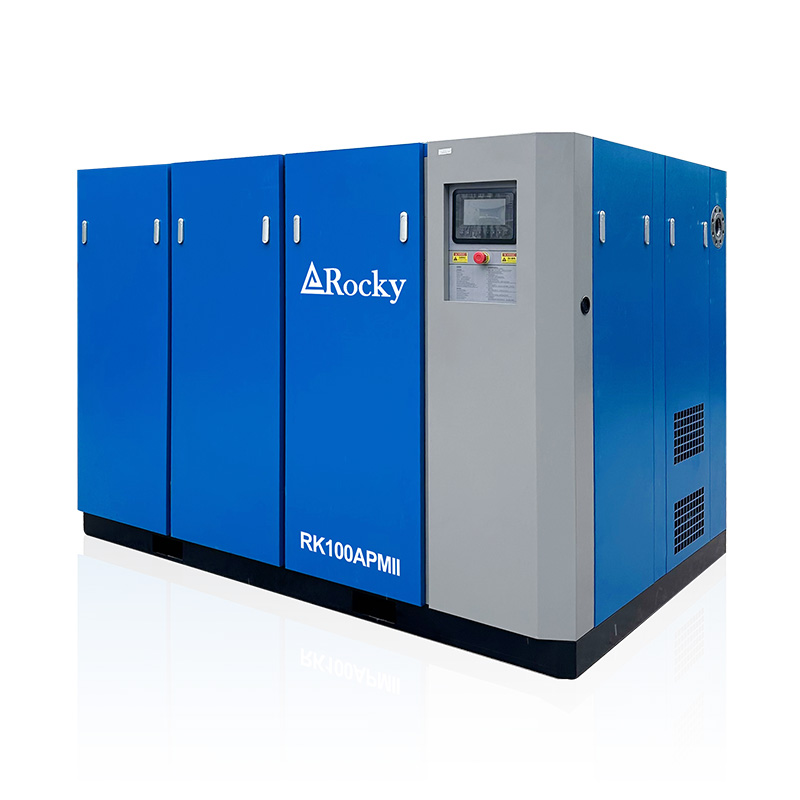

RK100APMII (17).jpg

Product features

  •  Two-Stage Compression with Intercooling: Reduces power loss and improves efficiency by 11–15% vs. single-stage models.

  • IE5 Permanent Magnet Motor: Achieves 97% motor efficiency with over 30% energy savings vs. traditional induction motors.

  •  Variable Frequency Drive (VSD): Maintains stable outlet pressure within ±0.1 bar and reduces grid impact.

  • 16 m³/min @ 8bar High Flow: Ensures stable air supply for large-scale continuous production.

  • Intelligent PLC Controller: Provides real-time monitoring, fault diagnosis, and remote control via touch screen.

  • Low Noise Operation: Operates as low as ≤76 dB(A) — ideal for indoor installation.

  • Heavy-Duty Design: Built for 24/7 continuous operation with minimal maintenance.

  •  CE Certified: Meets international safety and quality standards.


Technical Parameters


Two-stage PM VSD Screw Air Compressor

ModelAir Delivery  (m³/min)Power
(kW/hp)		Noise
dB(A)		Outlet
diameter		Dimensions
(mm)		Weight
(kg)
7 bar8 bar10 bar13 barL*W*H
RK30APMII1.4-4.51.3-4.21.1-3.50.8-2.7  22/3068 G1 1/21300*980*1220560
RK40APMII1.8-6.041.7-5.91.4-4.7  1.2-4.0  30/4068 G1 1/21400*1100*1450800
RK50APMII2.3-7.52.1-7.51.8-7.2  1.6-5.4  37150 68 G1 1/21400*1100*1450850
RK60APMII3.2-10.53.0-9.92.3-8.0  2.0-6.8  45/6072 G21500*1200*15501500
RK75APMII4.1-13.63.8-12.53.0-10.1  2.3-8.0  55175 76 G22100*1440*16501700
RK100APMII4.8-16.04.7-15.53.8-13.03.1-11.5  75/10076 G22100*1440*16501800
RK125APMII6.2-20.75.9-19.54.8-16.54.2-14.0  90/12576 DN652450*1700*17602400
RK150APMII7.4-24.87.2-24.06.1-20.24.8-16.05110/15076 DN802600*1900*18902800
RK175APMII8.7-29.08.4-28.07.1-23.75.7-19.0132/17578 DN802600*1900*18903000
RK220APMII10.2-35.39.8-33.58.4-30.66.9-26.0160/22078 DN1003250*2100*22004300
RK250APMII11.7-41.010.8-38.09.6-34.58.3-29.0185/25078 DN1003250*2100*22004500
RK275APMII13.1-45.012.3-42.010.7-38.09.5-31.5200/27578 DN1253800*2300*22006000
RK300APMI15.5-51.514.5-48.311.6-38.510.7-35.5220/30082 DN1253800*2300*22006500
RK350APMII16.2-55.015.3-53.013.5-45.811.4-40.8250/35082 DN1253800*2300*22007000
RK375APMII18.0-62.017.1-60.015.0-52.012.9-43.0280/37582 DN1253800*2300*22007500
RK420APMII19.5-74.018.6-67.016.8-59.015.2-52.5315/42082 DN1254300*2300*24308500
RK480APMII22.5-81.021.9-78.019.2-64.016.5-56.0355/48082 DN1504700*2250*24209500
RK540APMII25.2-89.024.6-84.521.6-77.018.3-64.0400/54082 DN1504700*2250*242010000
