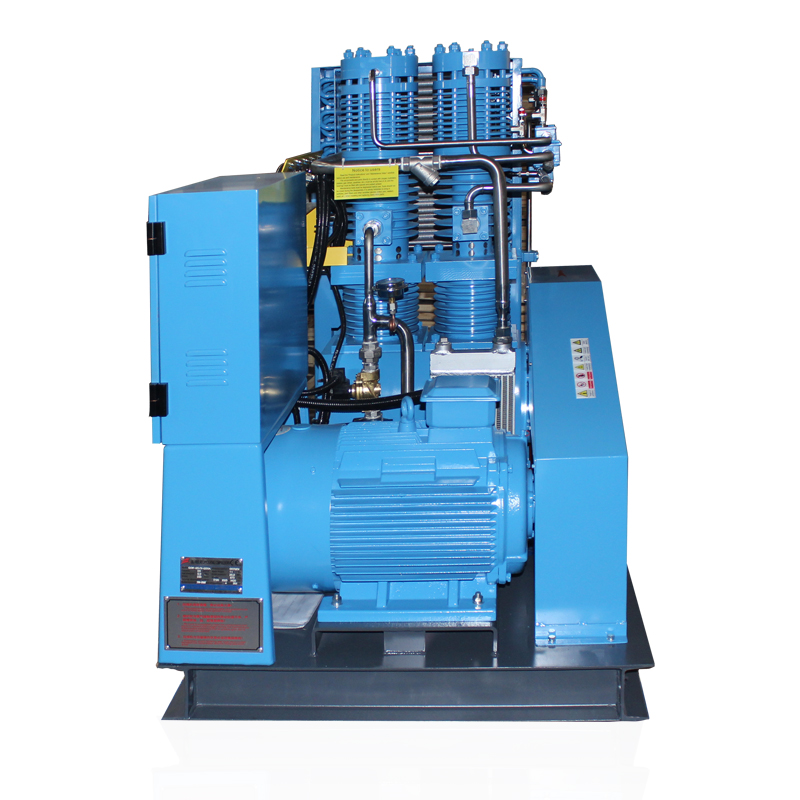

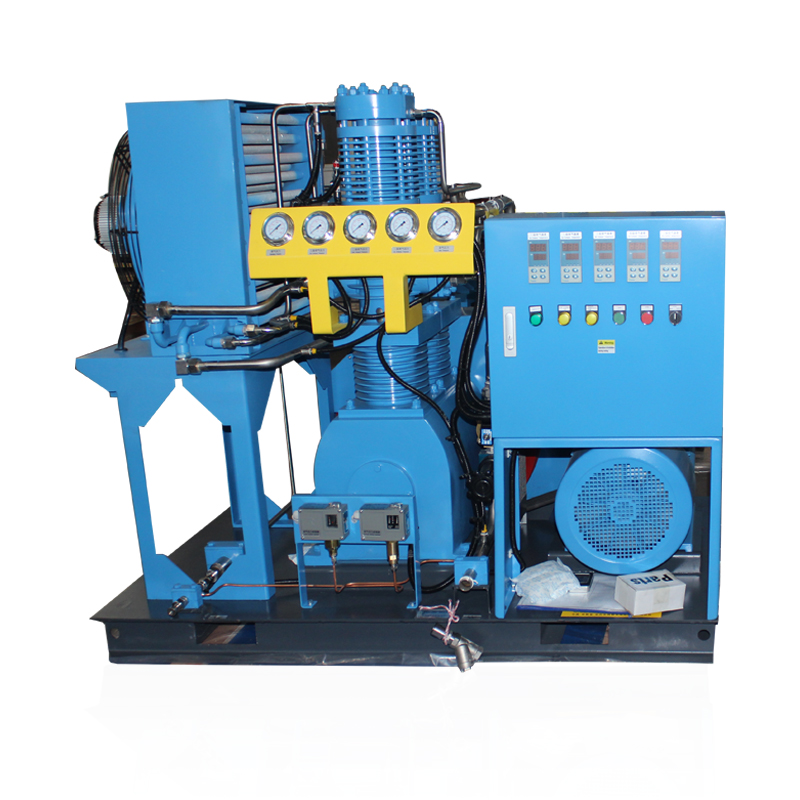

15nm3/H 150 Bar High Pressure Reciprocating Oil-Free Oxygen Compressor for Filling Oxygen Cylinders

Safety oxygen compressors for pressurizing oxygen and delivering or storing it. One of the industries is used for rough oxygen cutting, where 93% pure oxygen is pumped into oxygen cylinders, and acety

  • Working Pressure:150~200[ bar ]2175~2900[ psig ]
  • Free Air Delivery:353~529.5[ cfm ]10~15[ m3/min ]
  • Working Power:5.5~7.5[ kw ]7.5~10[ hp ]

Product Details

Our oxygen booster gas compressors feature

1. No oil, no oil required, stainless steel cylinder

2. No pollution, keep the gas purity unchanged

3. The quality is safe and reliable, and the stability is good.

4. Low maintenance cost and simple operation.

5. The service life of the piston ring under low pressure conditions is 4000 hours, and the service life of piston rings under high pressure conditions is 1500-2000 hours

6. According to the customer's specific working conditions, the compressor is designed as single-stage compression, two-stage compression, three-stage compression and four-stage compression.

7. Low speed, long life, average speed 260-400RPM,

8. Low noise, the average noise is lower than 75dB, it can work quietly in the medical field

9. Continuous continuous heavy-duty operation, which can run stably for 24 hours without stopping (depending on the specific model)


Technical Parameters

Model

Capacity

(m3/h)

Inlet P (Barg)Outlet P (Barg)Motor Power(Kw)Inlet/Out Temp()Inlet SizeOutlet SizeDimension L*W*H(mm)Weight (kg)
GOW-1~3/4-1501~33~41501.5~3.045M14*1.5M14*1.5850*640*680140
GOW-1~3/4-2001~33~42001.5~3.045M14*1.5M14*1.5850*640*680140
GOW-4~12/4-1504~123~41503.0~5.545DN15M16*1.51000*800*1100320
GOW-4~12/4-2004~123~42003.0~5.545DN15M16*1.51000*800*1100320
GOW-10~15/4-15010~153~41505.5~7.545DN15M16*1.51050*750*1020450
GOW-10~15/4-20010~153~42005.5~7.545DN15M16*1.51050*750*1020450
GOW-13~60/4-15013~603~415011~18.545DN25M16*1.51650*950*1470960
GOW-13~60/4-20013~603~420011~18.545DN25M16*1.51650*950*1470960
GOW-60~70/4-15060~703~41502245DN40M22*1.51950*1350*14001300
GOW-80~150/4-15080~1503~415030~4545DN50M22*1.52100*1100*16002000
GOW-80~150/4-20080~1503~420030~4545DN50M22*1.52100*1100*16002000
