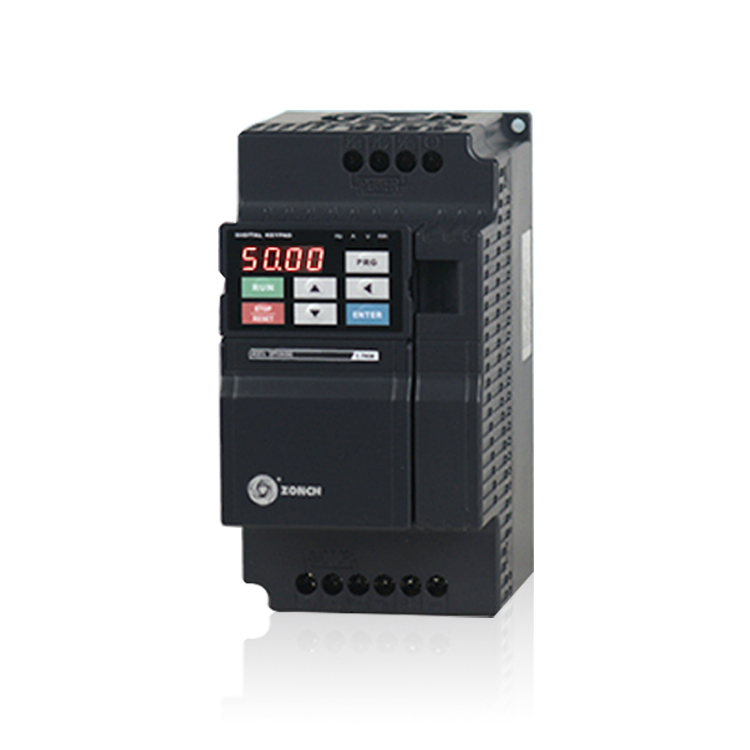

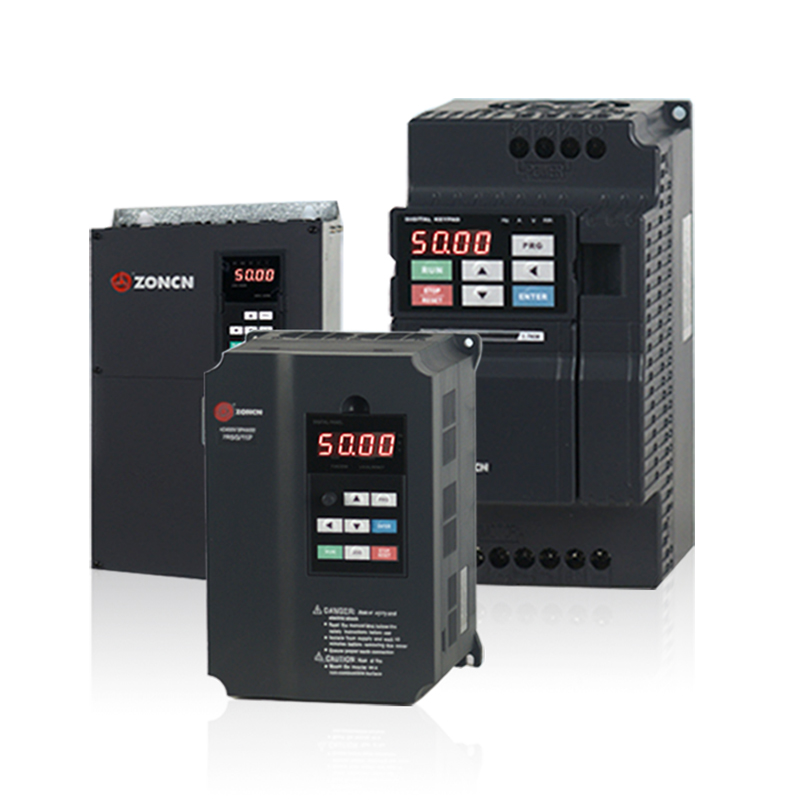

55kW Air Compressor VFD Inverter 380V 3-Phase Vector Inverter ZONCN Z2400-55G Inverter

The ZONCN Z2400-55G is a 55kW, 380V three-phase vector VFD inverter designed for air compressor applications to provide precise motor speed control and energy-efficient operation.

  • Working Pressure:7~16[ bar ]101.5~232[ psig ]
  • Free Air Delivery:38.9~218.8[ cfm ]1.1~6.2[ m3/min ]
  • Working Power:55[ kw ]75[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

ROCKY CATALOG 2025 VERSION Rocky High Pressure Gas Booster Compressor Catalog Rocky High Pressure Breathing Air Compressor Catalog 2025 Rocky Medium High pressure air compressor catalog

Product Details

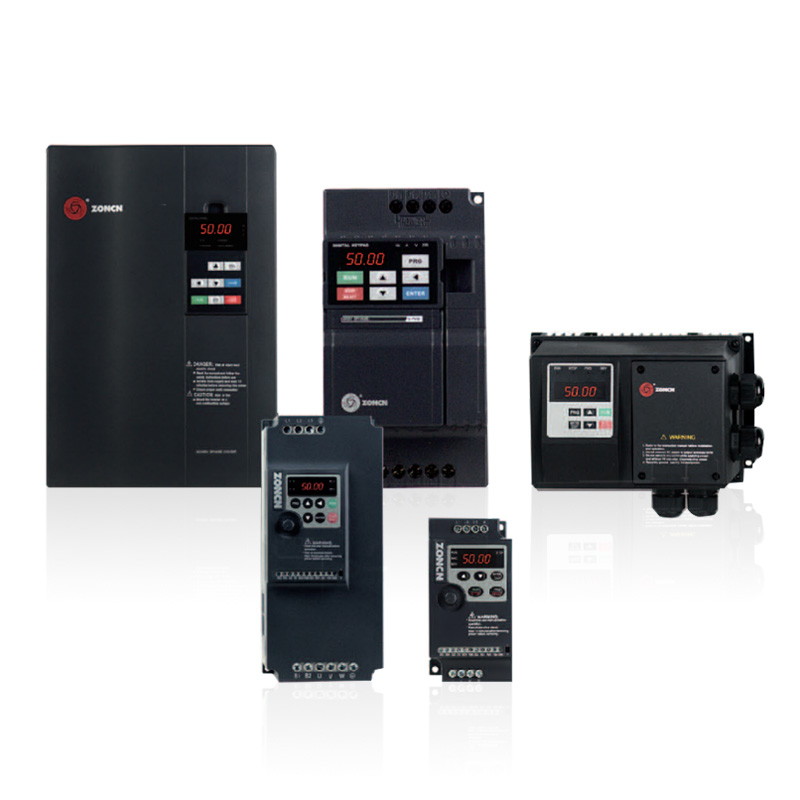

Zoncn (32).jpg

Product Advantages

  • 55kW high power, 380V 3-phase input, designed for air compressor applications

  • Advanced vector control for precise speed and torque regulation

  • Significant energy savings by matching motor speed to actual air demand

  • High starting torque and stable operation under varying loads

  • Built-in air compressor-specific functions (PID, sleep mode, multi-speed)

  • Comprehensive protection: overvoltage, overcurrent, overload, phase loss

  • Compact design, easy installation and commissioning

  • Reliable performance and long service life

Technical Parameters

ParameterSpecification
ModelZ2400-55G
Rated Power55 kW
Rated Output Current110 A
Input Power Supply3-phase 380V AC (±15%), 50/60Hz
Output Voltage0 – 400V AC (3-phase)
Control ModeSensorless Vector Control (SFVC) / V/F Control
Max. Output FrequencyVector Control: 0 – 320 Hz; V/F Control: 0 – 3200 Hz
Carrier Frequency1 – 16 kHz (auto-adjustable)
Speed Control Range1:100 (SFVC)
Speed Stability Accuracy±0.5%
Starting TorqueG Type: 150% rated torque at 0.5Hz
Overload CapacityG Type: 150% rated current for 60s; 180% rated current for 3s
Communication InterfaceBuilt-in RS485, supporting MODBUS-RTU protocol
Built-in FunctionBuilt-in PID regulator
Protection FunctionsOverload, overcurrent, overvoltage, undervoltage protection, etc.
