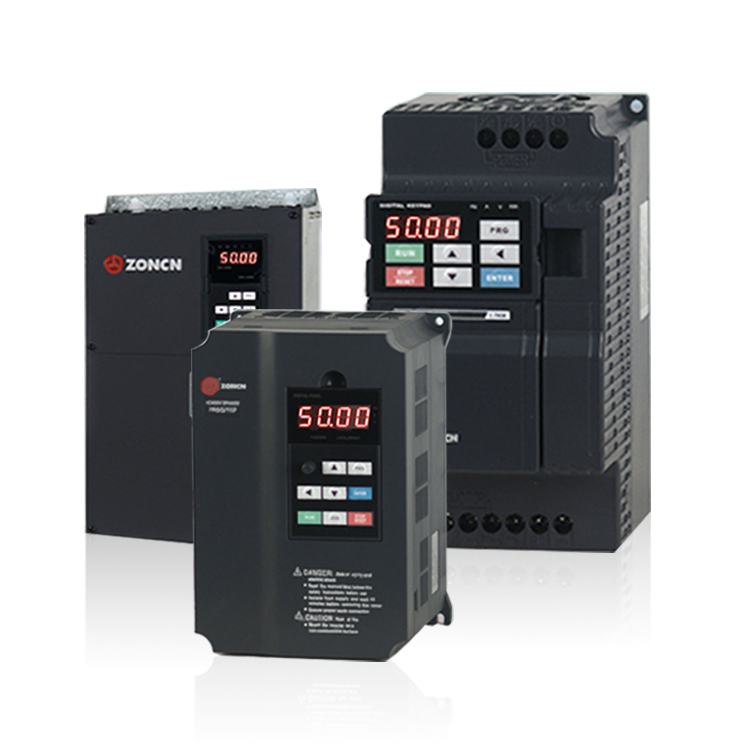

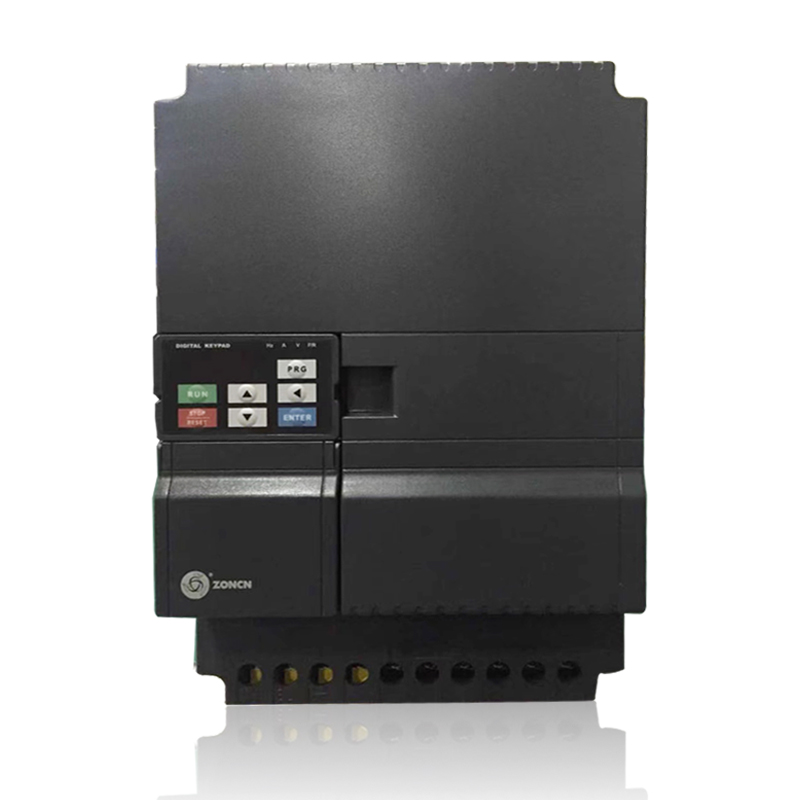

Original Zoncn VFD Z2400-220g/250p Industrial Air Compressor Inverter 380V 3-Phase

The ZONCN Z2400-220G/250P is a high-power variable frequency drive (VFD) designed for industrial air compressor applications.

  • Working Pressure:6~20[ bar ]87~290[ psig ]
  • Free Air Delivery:0.3~65[ cfm ]10.6~2295[ m3/min ]
  • Working Power:220~250[ kw ]293~333[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

ROCKY CATALOG 2025 VERSION Rocky High Pressure Gas Booster Compressor Catalog Rocky High Pressure Breathing Air Compressor Catalog 2025 Rocky Medium High pressure air compressor catalog

Product Details

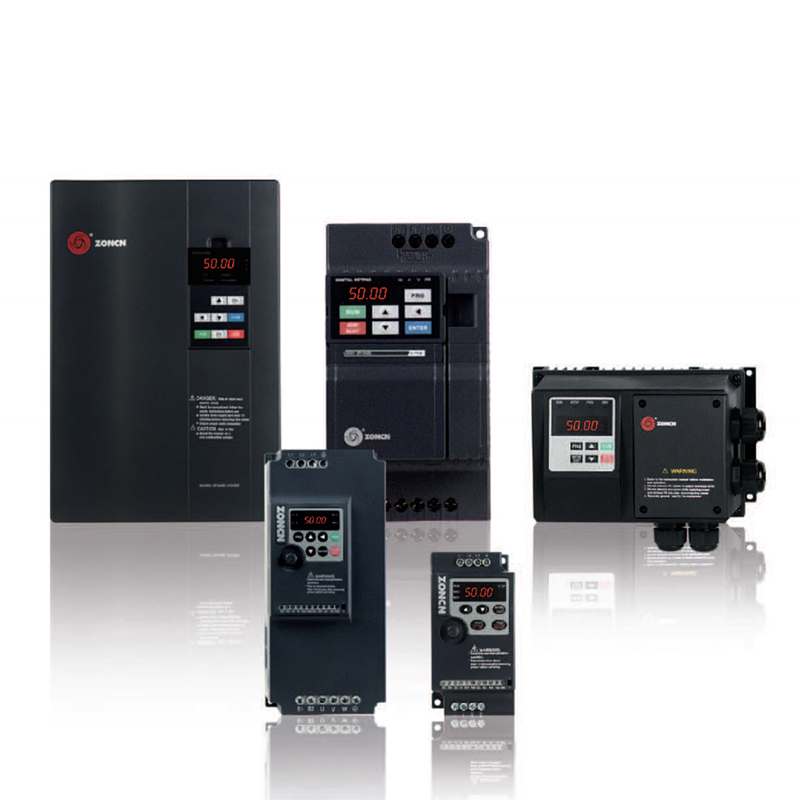

ZONCN (32).jpg

Product features

  • Original ZONCN Z2400-220G/250P, 220kW (G) / 250kW (P)

  • Dual control: V/F + sensorless vector control (SVC)

  • Output frequency: SVC 0.1–320Hz; V/F 0.1–3200Hz

  • High starting torque: 150% at 0.5Hz (G-type)

  • Overload: 150% for 60s; 180% for 3s (G-type)

  • Built-in PID constant-pressure control; auto speed matching air demand

  • Soft start/stop; optional RS485 / Modbus-RTU remote monitoring

  • Full protection: overvoltage, undervoltage, overcurrent, overload, overheat, phase loss, short circuit

  • IP20, built-in braking unit, EMC filter, forced air cooling

  • Compact cabinet mount; external pull-out keypad; easy maintenance


Technical Parameters
