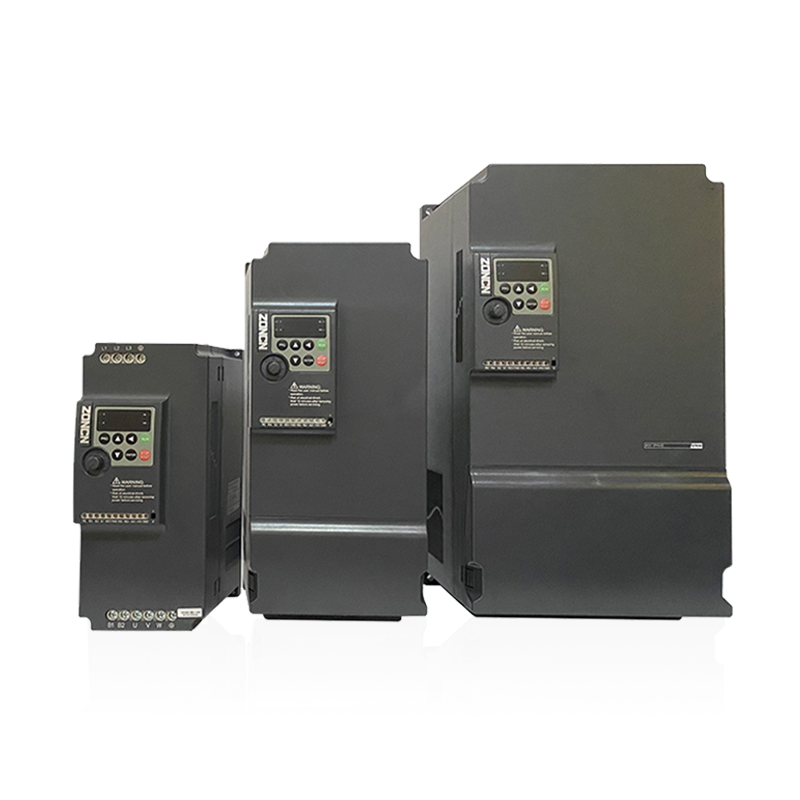

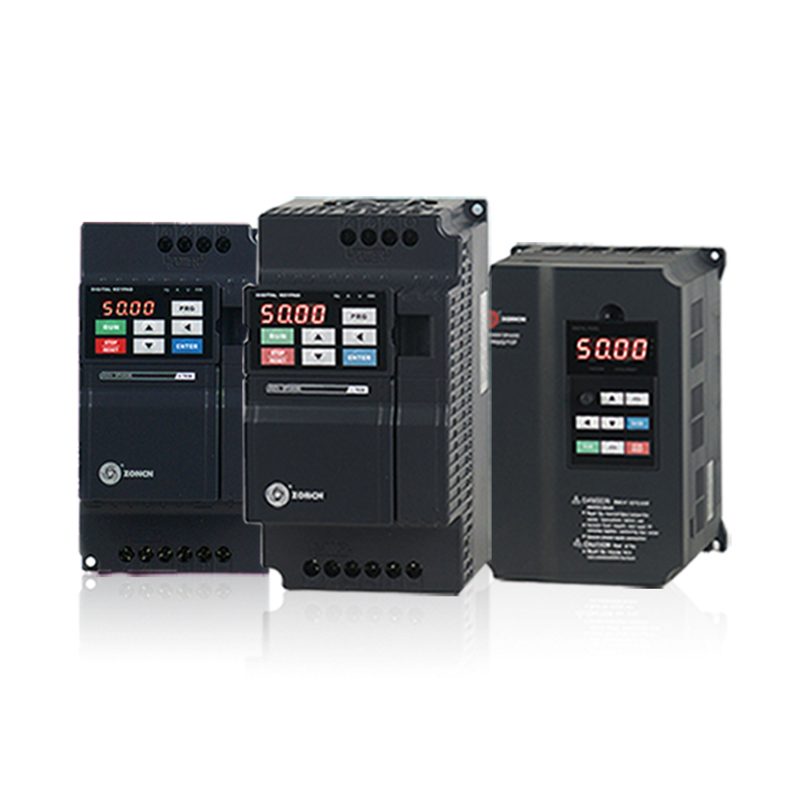

Zoncn Z2400-110g/132p High-Performance Vector Control Inverter 110kw/132kw Dual Rating 3-Phase 380V VFD

The Zoncn Z2400-110G/132P is a high-performance vector control inverter (VFD) manufactured by Zhongchen (ZONCN). Its core feature is a 110 kW/132 kW dual-rating design. It is suitable for three-phase

  • Working Pressure:7~16[ bar ]101.5~232[ psig ]
  • Free Air Delivery:6.2~15.5[ cfm ]219~547[ m3/min ]
  • Working Power:110~132[ kw ]150~175[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

ROCKY CATALOG 2025 VERSION Rocky High Pressure Gas Booster Compressor Catalog Rocky High Pressure Breathing Air Compressor Catalog 2025 Rocky Medium High pressure air compressor catalog

Product Details

Zoncn (1).jpg

Key Features

  1. Dual Rating: 110 kW (G-type, constant torque) / 132 kW (P-type, variable torque) — one inverter for two load profiles.

  2. Precise Control: Sensorless vector (SVC) and V/F modes; ±0.5% speed accuracy; 1:100 speed range.

  3. Strong Overload: G-type 150% rated current for 60 s, 180% for 3 s.

  4. Built-in Functions: Braking unit (standard ≤37 kW, optional above), PID, RS485 Modbus-RTU, 10 auxiliary frequency sources.

  5. Reliable Design: AVR, rapid current limit, IP20 forced cooling; -10°C to 40°C (derate above 40°C), ≤95% RH non-condensing, ≤1000 m altitude.

  6. Brand & Support: ZONCN (SSE: 603275), Top 10 China inverter brand; 4 factories, exports to 40+ countries.

  7. Certification: CE certified; OEM/ODM available.

Technical Parameters

ModelZONCN Z2400-110G/132P
Lubrication StyleLubricated
Cooling SystemAir Cooling
Power SourceAC Power
Cylinder PositionAngular
Structure TypeClosed Type
Installation TypeMovable Type
TypeTwin-Screw Compressor
Output VoltageThree-Phase 380 to 480V
Max Output Frequency500 Hz (Editable Through Parameter)
Rated Exhaust Pressure7~13bar
Overload Capacity150% for 60s
Allowed Voltage Fluctuation15% to 10%, AC 323 to 528 V
Weight250 kg
Transport PackageWooden Box
Specification1500*1300*1400 mm
