Original Rotorcomp Screw Airend EVO6-NK-Gas V002

The Original Rotorcomp Screw Airend EVO6-NK-Gas V002 is a genuine, high-efficiency screw compressor block specifically designed as the core compression component for industrial gas applications.

  • Working Pressure:6-15[ bar ]87- 217 [ psig ]
  • Free Air Delivery:200[ cfm ]5.5[ m3/min ]
  • Working Power:15~37[ kw ]20~50[ hp ]

Product Details

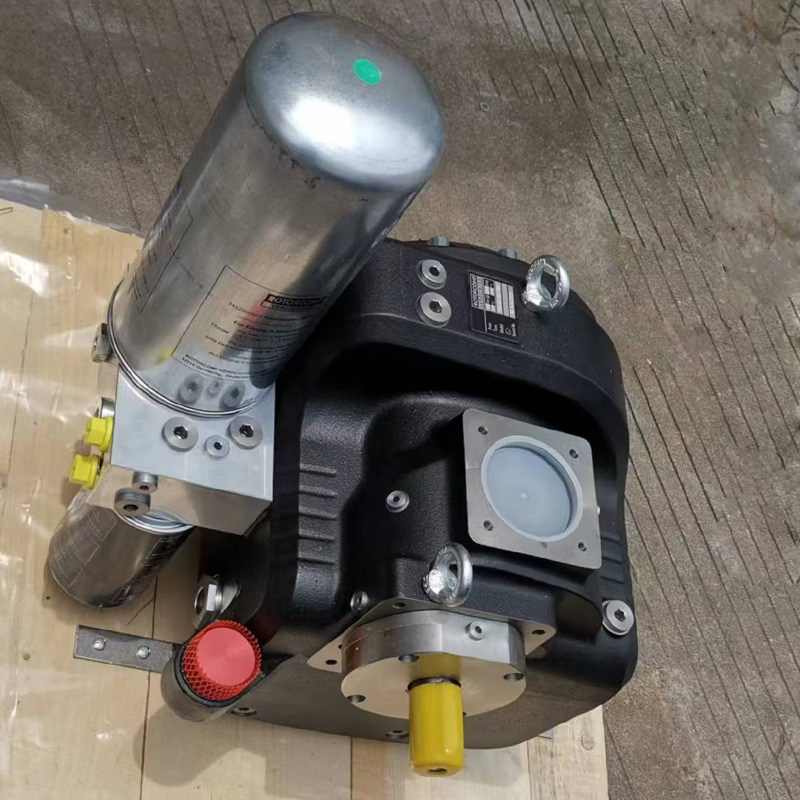

EVO6-NK Gas V002-2.jpg

Product feature

  • 100% Genuine & Reliable

Direct from the original manufacturer. Guarantees unmatched reliability, precise engineering, and a long service life, eliminating the risks of aftermarket parts.

  • Dedicated for Gas Applications

Specifically engineered with specialized materials, seals, and tight tolerances for industrial gas compression, ensuring safe and leak-free operation.

  • High-Efficiency EVO Rotor Profile

Features the advanced EVO series rotor geometry, delivering superior volumetric efficiency, lower energy consumption, and optimal performance under demanding conditions.

  • Robust & Compact Design

High-precision manufacturing ensures minimal vibration and noise, providing a stable and solid foundation for your compressor system.

  • Perfect Drop-in Replacement

Exact dimensional match with the original OEM specs. Easy to install, significantly reducing maintenance downtime and labor costs.


Technical Parameters

Product ModelEVO6-NK-Gas V002
Product TypeGas-specific Screw Compressor Airend (Original Rotorcomp)
Max. Shaft Power37 kW (50 HP)
Recommended Motor Power15-37 kW (20 – 50 HP)
Nominal Capacity (at 7 barg)Approx. 330 m³/h (5.5 m³/min / 200 cfm)
Operating Pressure Range6-15 bar (87- 217 psig)
Speed Range1,500 – 7,000 rpm
Built-in Volume Ratio (Vi)4.1
Net WeightApprox. 100 – 125 kg (220 – 276 lbs)
Dimensions (L × W × H)Approx. 483 × 440 × 564 mm
Drive TypeBelt-driven or Direct-coupled (Flexible options)
