Manufacturers Supply Oil-free Scroll Silent Screw Air Compressor

The compression process of the oil-free scroll is realized by the rotating motion of the fixed scroll and the movable scroll. Air enters from the outside of the main engine, and the moving scroll clos

  • Working Pressure:8~10[ bar ]116~145[ psig ]
  • Free Air Delivery:38.8~42.4[ cfm ]1.1~1.2[ m3/min ]
  • Working Power:11[ kw ]15[ hp ]

Product Details

Oil-free Scroll air compressor Advantages

Fully Oil-free

Class 0 oil-free is certified by GermanTUV organization.

Low Vibration

The high-pressure area aroundthe axis is evenly distributedwithout eccentricity, good balanceand well controlled vibration.


Super Silent

Reasonable vibration and noisereduction design, smooth outputairflow without fluctuation, lownoise and low vibration.

Intelligent and Reliable

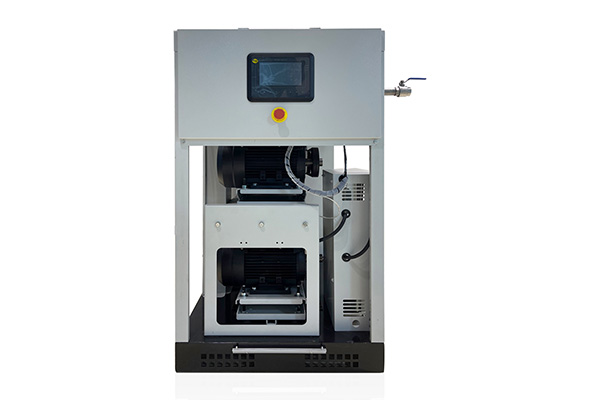

Multi-stage scroll air-ends,automatically controls the scrollunits according to the air demand.Failed air-end doesn't affect to thesystem as all units are controlledindependently.



Application industry


Oil-free scroll screw air compressors are used in food (wine, beverage and other food processing plants), medical treatment (clinics, hospitals, gas supply, pharmaceutical processing, etc.), new energy vehicles (braking system, air conditioning system), oxygen tanks , laboratory, printing, chemical industry, precision drawing and coating and other fields.


Technical Parameters

ModelAir Delivery(m3/min)Power
(kW)
Air-endAir tankNoise
dB(A)
Outlet
diameter
Dimension (mm)  Weight
    (Kg)
8bar10barPower*QtyLitersL * W * H
RO-2.2AT0.24 0.22 2.22.2*14055G1/2700*500*1220160
RO-3.7AT0.40 0.34 3.73.7*14055G1/2700*500*1220170
RO-2.2A0.24 0.22 2.22.2*1/55G1/2650*500*870125
RO-3.7A0.40 0.34 3.73.7*1/55G1/2650*500*870135
RO-5.5A0.60 0.55 5.55.5*1/55G1/2790*640*1050190
RO-7.5A0.80 0.68 7.43.7*2/60G1/2980*675*1270350
RO-11A1.20 1.10 115.5*2/60G3/4852*1274*1330450
RO-15A1.60 1.36 14.83.7*4/63G1 1/21565*1274*1330700
RO-16.5A1.80 1.65 16.55.5*3/63G1 1/21565*1274*1330710
RO-22A2.40 2.20 225.5*4/63G1 1/21565*1274*1330730
RO-33A3.60 3.30 335.5*6/65G1 1/21565*1274*17751020

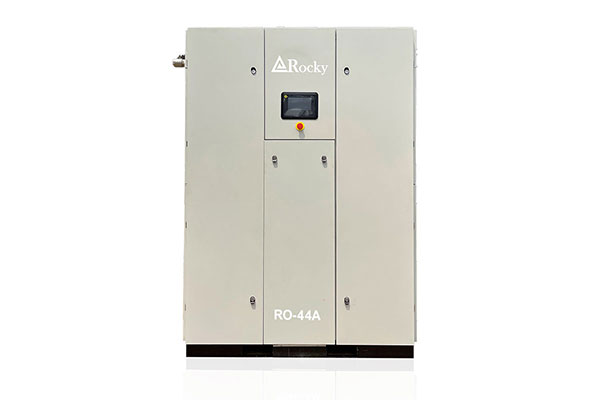

RO-44A4.80 4.40 445.5*8/68G1 1/21565*1274*17751250
