Medical Oil-free High Pressure Oxygen Nitrogen Booster 300bar Gas Booster

Nitrogen and oxygen boosters are follow-up equipment used in gas separation and other fields. They are widely used in chemical, food and other industries. The oil-free low-pressure nitrogen and oxygen

  • Working Pressure:4~10[ bar ]58~145[ psig ]
  • Free Air Delivery:52.9~2118[ cfm ]1.5~60[ m3/min ]
  • Working Power:0.75~11[ kw ]1~15[ hp ]

Product Details

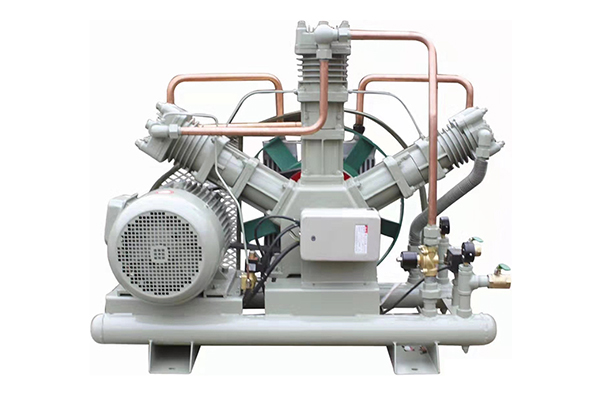

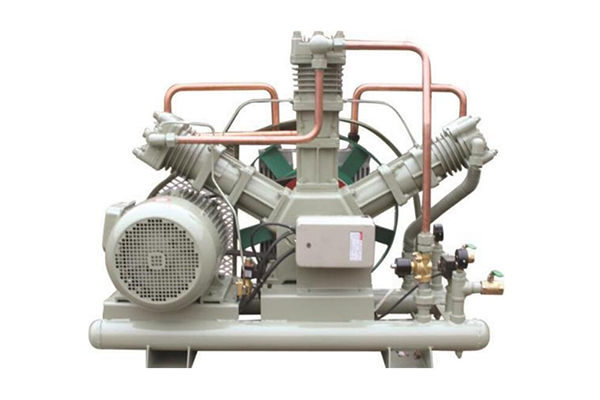

Oil-free nitrogen booster Oil-free oxygen booster—Nitrogen generator, oxygen compressor booster auxiliary equipmentThe intake pressure of the oil-free oxygen and nitrogen booster can be between 0-0.8MPa, and the exhaust pressure can reach 6Mpa, which can be customized according to the gas pressure requirements of each customer. The supercharger adopts the form of oil-free piston lubrication, which is environmentally friendly and energy-saving.


Oil-free booster air compressor(Take medium oxygen as an example)


★The oil-free turbocharger is based on the company's fully oil-free air compressor design concept, and realizes the secondary treatment of oxygen, nitrogen, argon, helium, carbon dioxide, sulfur hexafluoride and other non-flammable and explosive gases. Pressurization, to meet the individual needs of the pressurized gas for medical, commercial, and industrial use.

★New technology patented products (Patent No.: 201 120053943.2) are exclusively produced in China. The gas and the bearing do not contact, and the compressed components that bear the lateral force are transferred from the high temperature zone to the low temperature zone, and the life of the bearing and guide ring is doubled. The special supplementary lubrication structure makes maintenance faster.

★The unique middle body sealing structure can improve the life of the seals, and the sealing effect is excellent. The leakage is less than four thousandths, which ensures the gas purity and cleanliness after pressurization, and extends the service life of the raw material machine.

★The ideal replacement product for traditional turbochargers. Ordinary (fixed, mobile) box type, multiple frequency conversion forms are available.

★Applicable gas pressure range:

The gas pressure (≥0MPa) is pressurized to the pressure you need (≤5.0 Mpa);

★Applicable gas flow range: 1 ~ 300Nma/h; more air volume can be applied according to the required unit type.


Project case



Technical Parameters
