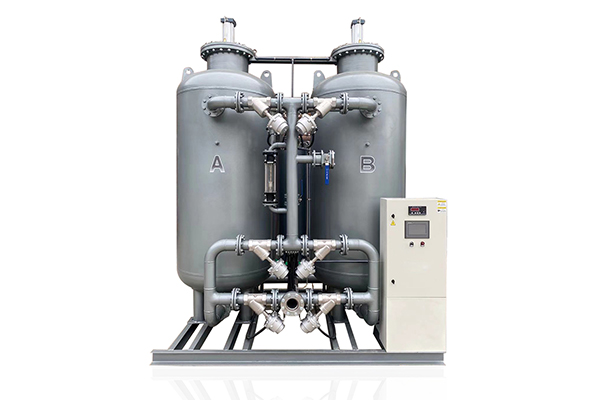

Silent Skid mounted Oxygen Generator Modules

Oil-free nitrogen booster Oil-free oxygen booster————Nitrogen generator, oxygen compressor booster auxiliary equipment The intake pressure of the oil-free oxygen and nitrogen booster can be between 0-

  • Working Pressure:200~300[ bar ]2900~4350[ psig ]
  • Free Air Delivery:105.9~353[ cfm ]3~100[ m3/min ]
  • Working Power:7.5~110[ kw ]10~132[ hp ]

Product Details

Key Features

1.Skid mounted, self contained modules in a wide variety of capacities.

2.Full electronic controls displaying output and all control parameters and allowing control of each module.

3.Prepiped inlet and outlet.

4.Prepiped exhaust for venting outside the building including muffler for noise reduction.

5.Temperature independant output.



Benefits

1. Modules are individually controlled and monitored for simplex or duplex PSA arrangements.

2. Rigging and installation are simplified but each module is complete within itself to ensure correct operation.

3. Modules can be operated

4. at ideal pressure for oxygen production without affecting the delivery pressure.

5.Noise is minimized and safety of workers can be protected from nitrogen exhaust.


Flow Diagram

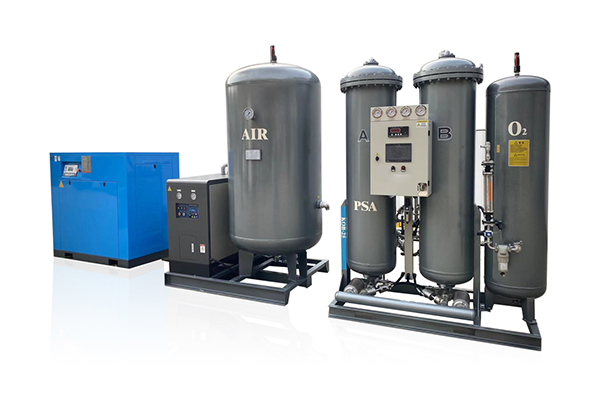

Flow diagram for Rocky with two generation lines and high pressure booster for filling cylinders:




Technical Parameters

Model selection table

O2

Generator

Capacity

Filling Capacity

Compressor

Dryer

Filter

O2 Receiver

Air Receiver

(Nl)

(Nm3)

Cylinder/H

Model

Model

Model

Model

Model

KOB-3

3000

3

0.6

5.5KW

KAD-015F

015PF/AO/AA/AX/AR

100 L



200 L



KOB-5

5000

5

1

7.5KW

KAD-026F

026PF/AO/AA/AX/AR

100 L



300 L



KOB-8

8000

8

1.5

11KW

KAD-026F

026PF/AO/AA/AX/AR

300 L



400 L



KOB-10

10000

10

1.8

15KW

KAD-039F

039PF/AO/AA/AX/AR

300 L



600 L



KOB-15

15000

15

2.5

18.5KW

KAD-039F

039PF/AO/AA/AX/AR

400 L



1000 L



KOB-20

20000

20

3.5

22KW

KAD-070F

070PF/AO/AA/AX/AR

600 L



1000 L



KOB-25

25000

25

4

30KW

KAD-070F

070PF/AO/AA/AX/AR

600 L



1500 L



KOB-30

30000

30

5

37KW

KAD-085F

085PF/AO/AA/AX/AR

1000 L



1500 L



KOB-40

40000

40

7

45KW

KAD-108F

108PF/AO/AA/AX/AR

1000 L



2000 L



KOB-50

50000

50

9

55KW

KAD-140F

140PF/AO/AA/AX/AR

1500 L



3000 L



KOB-60

60000

60

11

75KW

KAD-140HF

170PF/AO/AA/AX/AR

1500 L



3000 L



KOB-70

70000

70

13

90KW

KBA-170HF

220PF/AO/AA/AX/AR

2000 L



4000 L



KOB-80

80000

80

15

90KW

KBA-220F

220PF/AO/AA/AX/AR

2000 L



5000 L



KOB-90

90000

90

17

110KW

KBA-250F

250PF/AO/AA/AX/AR

2500 L



5000 L



KOB-100

100000

100

19

110KW

KBA-250F

250PF/AO/AA/AX/AR

3000 L



6000 L



Product data

Model

Name

Data

Name

Data

O2

Oxygen pressure

00.5MPa

Oxygen purity

93-94%

Oxygen dew point

-55
