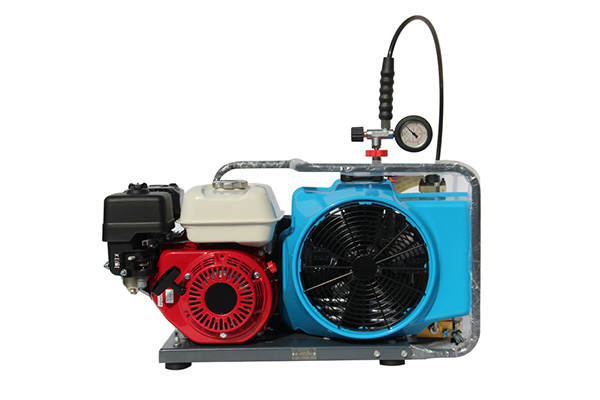

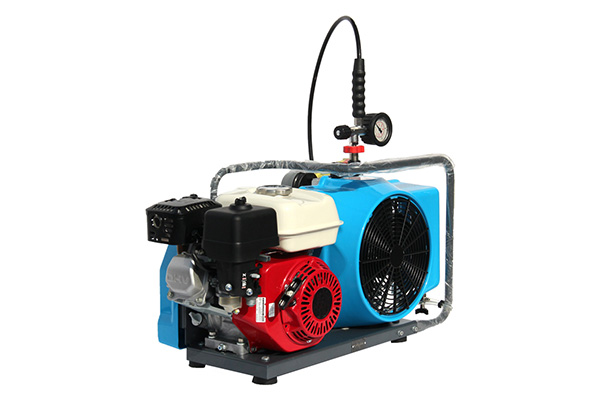

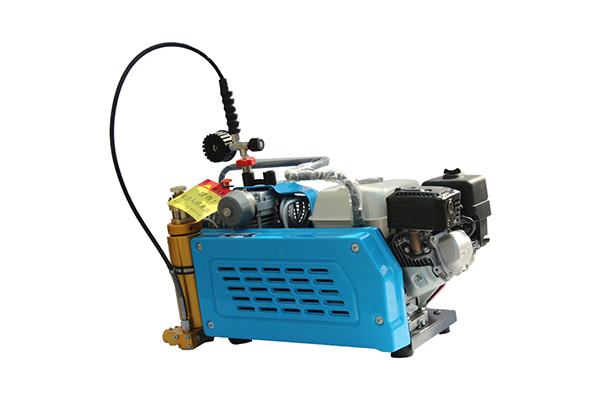

Portable High Pressure Breathing Air Compressor GDR-200P

High-pressure breathing air compressors are widely used in diving breathing, fire fighting, paintball shooting, mountaineering, aquaculture and other industries.

  • Working Pressure:225~330[ bar ]3262.5~4785[ psig ]
  • Free Air Delivery:5.2[ cfm ]0.15[ m3/min ]
  • Working Power:5[ kw ]6.6[ hp ]

Product Details



Product specification
● With power cord and motor protection switch
● Button with start and stop
● The oil-water separator and filter adopt the integrated design of aluminum alloy
● Metal frame structure with plastic coating
● Final safety valve provides overpressure protection
● Stainless steel and aluminum alloy condenser tube
● Activated carbon molecular sieve filter
● Condensate drain valve

Technical Parameters

ModelFree air deliveryInlet pressureWroking pressureDrivenPower (kW)Dimensions (L*W*H)Weight(kg)
GDR-100E100L/min 3.5cfmAtmosphere

Dive 225 Bar

Firefighting 330 Bar

Electric motor2.2kW700*380*420mm   46
GDR-100P100L/min 3.5cfmAtmosphere

Dive 225 Bar

 Firefighting 330 Bar

SUBARU/HONDA 4 strokes gasoline engine4.2kW770*420*420mm    44
GDR-150E150L/min 5.2cfmAtmosphereDive 225 Bar Firefighting 330 BarElectric motor3kW660*400*420mm   52
GDR-150P150L/min 5.2cfmAtmosphereDive 225 Bar Firefighting 330 BarSUBARU/HONDA 4 strokes gasoline engine5kW790*420*420mm   74
GDR-200E200L/min 7.06cfmAtmosphereDive 225 Bar Firefighting 330 BarElectric motor4kW1100*550*570mm    95
GDR-200P200L/min 7.06cfmAtmosphereDive 225 Bar Firefighting 330 BarSUBARU/HONDA 4 strokes gasoline engine4kW1100*550*570mm   102
GDR-265E265L/min 9.35cfmAtmosphereDive 225 Bar Firefighting 330 BarElectric motor5.5kW1250*590*630mm   120
GDR-265P265L/min 9.35cfmAtmosphereDive 225 Bar Firefighting 330 BarSUBARU/HONDA 4 strokes gasoline engine5.5kW1250*590*630mm    135
GDR-400E400L/min 14.1cfmAtmosphereDive 225 Bar Firefighting 330 BarElectric motor7.5kW1300*640*740mm    138
