Precision Filter Element/Micron Filter/Air Filter CE-180* Compressed Air Line Filter

A more effective and cost-effective high-precision filter, this filter adopts a unique appearance design, internal and external chemical anti-corrosion technology, high-temperature spray surface treat

  • Working Pressure:7~16 bar[ bar ]102~232[ psig ]
  • Free Air Delivery:35.3~883[ cfm ]1~25[ m3/min ]
  • Working Power:5.5~250[ kw ]7.5~350[ hp ]

Product Details

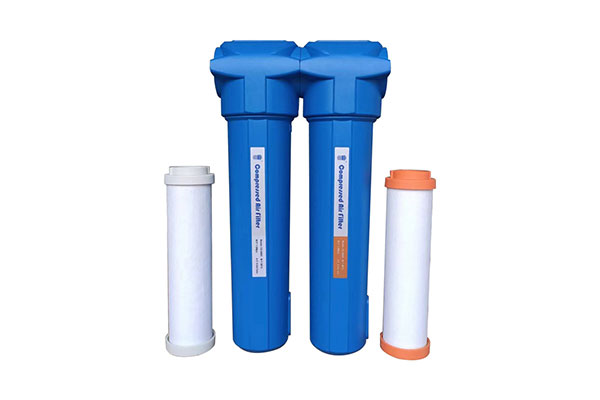

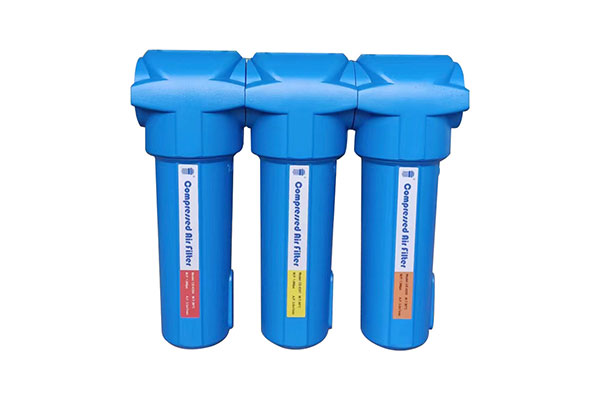

Precision Filter Element/Micron Filter/Air Filter CE-180* Compressed Air Line Filter

A more effective and cost-effective high-precision filter, this filter adopts a unique appearance design, internal and external chemical anti-corrosion technology, high-temperature spray surface treatment, and selects high-precision imported filter materials, simple and convenient parallel installation method, Suitable for all kinds of compressed air filtration with working pressure below 1.0Mpo, efficiently remove oil, water and dust in compressed air, and ensure the quality of compressed air.

Technical Parameters

ModelConnection size(G threaded)Filter modelflow(m³/min)
CE-015*1"EL-015*1-2
CE-035*1.5"EL-035*3.5
CE-060*1.5"EL-060*6.0
CE-080*1.5"EL-080*8.0
CE-120*2"EL-120*11.2
CE-160*2"EL-160*15.5
CE-180*2.5"EL-180*20.4
CE-240*2.5"EL-240*25.0
