30~40bar air compressor filter CNH-030* high pressure precision filter

It is suitable for filtering solid and liquid impurities in compressed air below 4.0Mpa. The high-pressure gas precision filter adopts a precision manufacturing process, fully considering the requirem

  • Working Pressure:7~16 [ bar ]102~232[ psig ]
  • Free Air Delivery:105.9[ cfm ]3[ m3/min ]
  • Working Power:5.5~250[ kw ]7.5~350[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

Rocky catalog 2023 version Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog Rocky high precision line filter catalog

Product Details

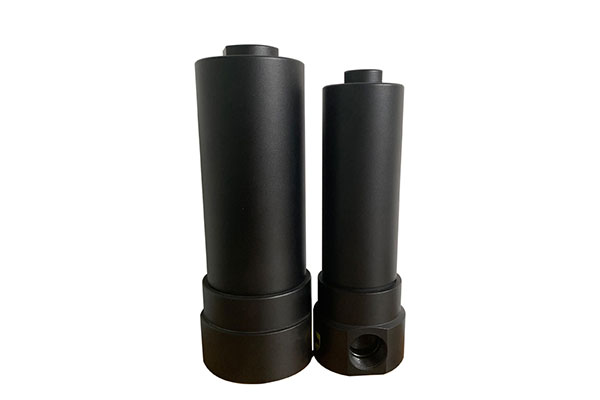

30~40bar air compressor filter CNH-030* high pressure precision filter


It is suitable for filtering solid and liquid impurities in compressed air below 4.0Mpa. The high-pressure gas precision filter adopts a precision manufacturing process, fully considering the requirements of high-pressure technology. It is made of high-grade 304, 316L stainless steel and special coated carbon steel. It can provide 25, 5, 1 and 0.0lum and activated carbon filter grade performance filter elements to meet various special requirements of customers. It is designed with the principle of aerodynamics to ensure that the filter medium Pressure drop is minimized.

Technical Parameters

Assembly model

Flow

(m³/min)

Connection size

Filter

Model

CNH-010*1 1 InchE*-16+
CNH-020*2 1 InchE*-20+
CNH-030*3 1 InchE*-24+
CNH-050*5 1.5 InchE*-28+
CNH-070*7 1.5 InchE*-32+
CNH-100*11 1.5 InchE*-36+
CNH-100*11 2 InchE*-36+
