Refrigerant dryers are the most commonly used dryers in the industry and consist of an air-to-air heat exchanger and an air-to-refrigerant heat exchanger. The heat exchangers remove moisture from your

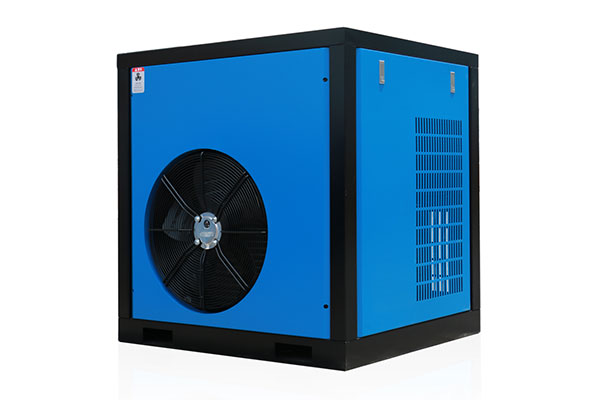

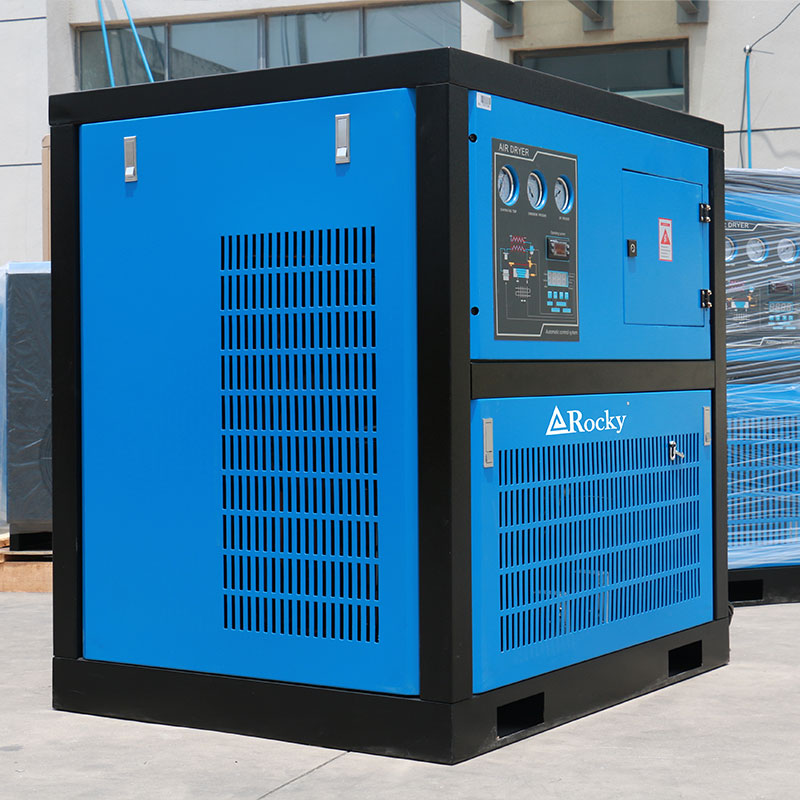

Rocky Series Refrigerant Compressed Air Dryers TR12
Product feature
Energy saving.
Aluminum alloy three-in-one heat exchanger design, under the same processing capacity, the total input
power is reduced by 15-50%.
High efficiency.
Guide fins are added to the integrated heat exchanger to make the compressed air uniform inside.
Intelligent.
Multi-channel temperature and pressure monitoring, real-time display of dew point temperature, self-diagnosis function, automatic protection of equipment.
Environmental protection.
The whole series uses R134A & R410A as refrigerant, meets european standard, true eco-friendly.
Stable.
Standard constant pressure expansion valve, intelligent temperature control, stable operation even when the intake air temperature reaches 65°C and the ambient temperature reaches 55°C.
| TR series Environmental Protection Refrigerant Air Dryer | ||||||||
| Model | TR01 | TR02 | TR03 | TR06 | TR08 | TR10 | TR12 | |
| Capacity | m3/min | 1.2 | 2.4 | 3.6 | 6.5 | 8.5 | 10.5 | 13 |
| Power supply | 220V 1PH 50HZ/60HZ | |||||||
| Input power | kW | 0.37 | 0.52 | 0.735 | 1.26 | 1.87 | 2.43 | 2.63 |
| Air pipe connection | RC3/4" | RC1" | RC1-1/2" | RC2" | ||||
| Evaporator type | Aluminum alloy plate | |||||||
| Refrigerant model | R134a | R410a | ||||||
| Display Anti-freezing protection | LED dew point display, LED alarm code display, operation status indication Constant pressure expansion valve & compressor | |||||||
| automatic start /stop | ||||||||
| Temperature control | Automatic control of condensing temperature / dew point temperature | |||||||
| High voltage protection | Temperature sensor | Temperature sensor&lnductive intelligent protection | ||||||
| Low voltage protection | Temperature sensor&lnductive intelligent protection | |||||||
| Weight | Kg | 34 | 42 | 50 | 63 | 73 | 85 | 94 |
| Dimension | L | 480 | 520 | 640 | 700 | 770 | 770 | 800 |
| W | 380 | 410 | 520 | 540 | 590 | 590 | 610 | |
| H | 665 | 725 | 850 | 950 | 990 | 990 | 1030 | |

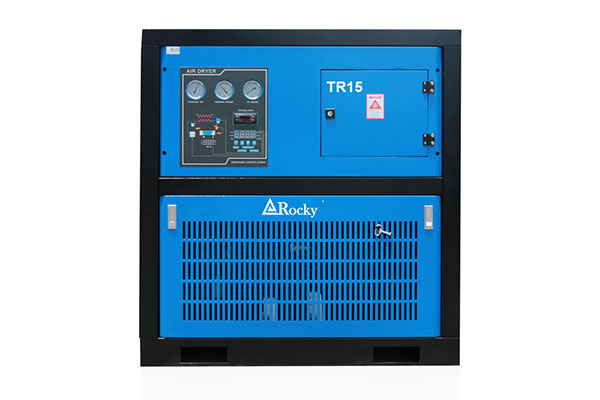

| Model | TR15 | TR20 | TR25 | TR30 | TR40 | TR50 | TR60 | TR80 | TR100 | TR120 | TR150 | |
| Capacity | m3/min | 17 | 23 | 27 | 33 | 42 | 55 | 65 | 85 | 110 | 130 | 165 |
| power supply | 220~660V 3PH 50HZ/60HZ | |||||||||||
| Input power | kW | 4.35 | 5.55 | 6.58 | 7.2 | 10.55 | 12.86 | 13.1 | 16 | 21.7 | 26.3 | 32.3 |
| Air pipe connection | RC2” | RC2-1/2” | DN80 | DN80 | DN100 | DN100 | DN125 | DN125 | DN150 | DN150 | DN150 | |
| Evaporator type | Aluminum alloy plate | |||||||||||
| Refrigerant | R407C / Optional R513A | |||||||||||
| Display | Smart PLC, LED dew point display, LED alarm code display, operation status indication | |||||||||||
| Anti-freezing protection | Constant pressure expansion valve & compressor automatic start/stop | |||||||||||
| Temperature control | Automatic control of condensing temperature/dew point temperature | |||||||||||
| High voltage protection | Temperature sensor&Inductive intelligent protection | |||||||||||
| Low voltage protection | Temperature sensor&Inductive intelligent protection | |||||||||||
| weight | Kg |  180 | 210 | 350 | 420 | 550 | 680 | 780 | 920 | 1150 | 1380 | 1725 |
| Dimensions(mm) | L | 1000 | 1100 | 1215 | 1425 | 1575 | 1630 | 1980 | 2055 | 2485 | 2100 | 3250 |
| W | 850 | 900 | 950 | 1000 | 1100 | 1150 | 1450 | 1450 | 1500 | 2220 | 1900 | |
| H | 1100 | 1160 | 1230 | 1480 | 1640 | 1760 | 1743 | 1743 | 1960 | 2110 | 1860 | |
