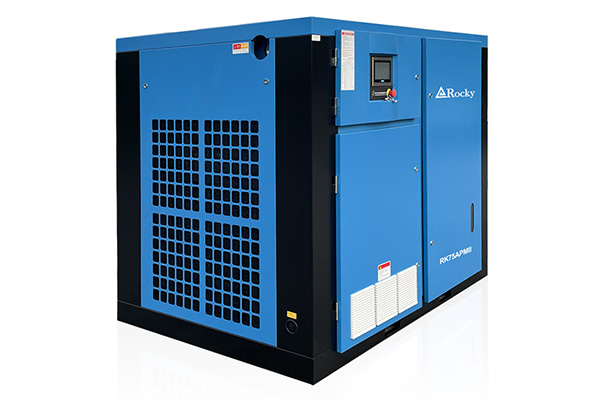

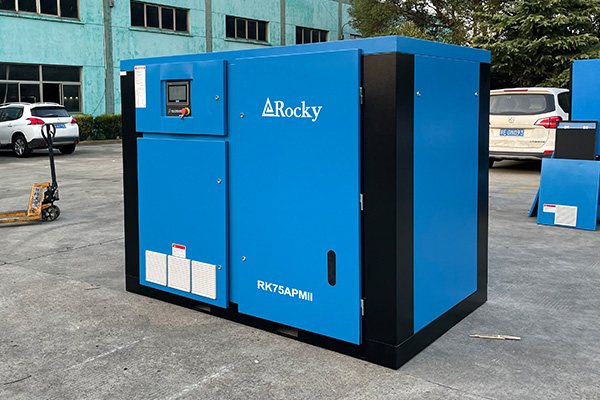

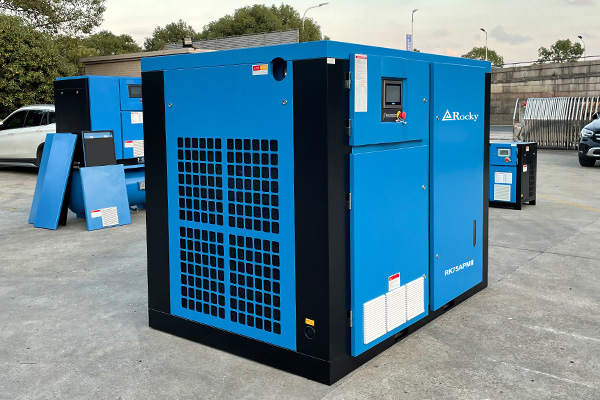

55 kW 75hp Two Stage Screw Air Compressor Machine Prices

After the air is compressed in the first stage, it is cooled by enhanced fuel injection to reduce the temperature of the second stage suction, and the air is compressed isothermally to reduce the com

  • Working Pressure:8~13[ bar ]116~188.5[ psig ]
  • Free Air Delivery:81~480[ cfm ]2.3~13.6[ m3/min ]
  • Working Power:55[ kw ]75[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

Rocky catalog 2023 version Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog Rocky high precision line filter catalog

Product Details


Product features

1. Getting more compressed air at the same power consumption.

2. Two-stage compression air end, increase the efficiency 8% on average.

3. Super IE4 class, SF1.2-1.35 service factor, 97% high-efficiency energy-saving PM motor, ensure trouble-free in all weather conditions.

4. Excellent oil air separation performance, outlet oil content is less than 2 ppm.

5. Silent centrifugal fan, stronger wind pressure reduce the probability of heat exchanger failure.

Technical Parameters

Two-stage PM VSD Screw Air Compressor
ModelAir Delivery (m3/min)Power
     (kW)		Noise
(Db)		Outlet
diameter		Dimension (mm)  Weight
    (Kg)
7bar8bar10bar13 barL * W * H
RK30APMII1.4-4.51.3-4.21.1-3.50.8-2.72268G11/21350x850x1110600
RK40APMII1.8-6.01.7-5.91.4-4.71.2-4.03068G11/21200x1000x1350700
RK50APMII2.3-7.52.1-6.91.8-6.01.6-5.43768G11/21500x1000x1350750
RK60APMII3.2-10.53.0-9.92.3-7.82.0-6.84572G22100x1300x16501250
RK75APMII4.1-13.63.8-12.53.0-10.12.3-7.55576G22100x1300x16501300
RK100APMII4.8-16.04.7-15.53.8-12.83.1-10.27576G22100x1300x16501350
RK125APMII6.2-20.75.9-19.54.8-16.24.2-14.09076DN802500x1650x19002700
RK150APMII7.4-24.87.2-24.06.1-20.24.8-16.011076DN802500x1650x19002800
RK180APMII8.7-29.08.4-28.07.1-23.75.7-19.013278DN802500x1650x19003000
RK220APMII10.2-34.09.8-32.58.4-28.06.9-23.016078DN803000x1900x19504300
RK250APMII11.7-39.010.8-36.09.6-32.08.3-27.518578DN803000x1900x19504400
RK275APMII13.1-43.512.3-41.010.7-35.59.5-31.520078DN1003600x2200x22005000
RK300APMII15.5-51.514.5-48.311.6-38.510.7-35.522082DN1003600x2200x22005500
RK350APMII16.2-54.015.3-51.013.5-45.011.4-38.025082DN1003600x2200x2200 6000
RK380APMII18.0-60.017.1-57.015.0-50.012.9-43.028082DN1253600x2200x2200 6800
RK420APMII19.5-65.018.6-62.016.8-56.015.2-50.531582DN1254200x2300x2350 8000
RK480APMII22.5-75.021.9-73.019.2-64.016.5-55.035582DN1504200x2200x2350 8500
RK540APMII25.2-84.024.6-82.021.6-72.018.3-61.040082DN1504200x2200x2350 9800
