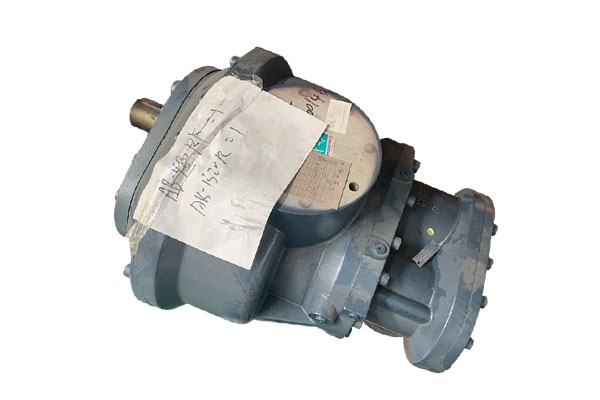

160kw Screw Compressor Head Hanbell Airend-One Stage AB-1560

Special for 50Hz direct driven type High Efficiency: The male rotor has 5 teeth, the femalerotor has 6. This tooth combination can improve energyefficiency, and decrease excessive fluid backflow, due

  • Working Pressure:8~10[ bar ]87~145[ psig ]
  • Free Air Delivery:845[ cfm ]23.9[ m3/min ]
  • Working Power:160[ kw ]215[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

Rocky catalog 2023 version Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog Rocky high precision line filter catalog

Product Details

Hanbell air end AB series

Special for 50Hz direct driven type

High Efficiency:

The male rotor has 5 teeth, the femalerotor has 6. This tooth combination can improve energyefficiency, and decrease excessive fluid backflow, due tothe similar circumference speed ratio of the two rotors.

Tightness:

When the internal leakage losses frombackflow of the compressed air through the gap betweenthe rotors and the housing is kept as low as possible.

Low vibration, long service life:

We use high-preci-sion-manufactures rotors, which guarantee HB Airend longbearing service life and low vibrations.


Technical Parameters

Model

Power

 (kW)

Rotating speed (rpm)Air Delivery (m3/min)Shaft power (kW)Specific power (kW/m'/min)S.F.Dimension(mm)Weight(kg)
AB-077 (Belt)7.5342017.37.40.97262*180*15025
AB-077 (Belt)1152001.5117.21262*180*15025
AB-130 (Belt)153420214.67.20.97397*210*17040
AB-21018.529502.919.46.71.05445*250*20062
AB-2402229503.522.76.41.03445*261*20764
AB-350RS3029504.733.17.11.1500*350*300118
AB-4203729506.238.26.11.03480*350*280109
AB-480R4529507.147.56.71.05550*370*299145
AB-600R5529509.157.66.31.05630*350*300155
AB-780R75295011.973.36.10.98650*380*350195
AB-1030R90295014.8956.41.08772*402*350260
AB-1200R110295019.4115.55.91.05810*575*412378
AB-1320132295021.4139.56.51.06863*610*442490
AB-1450R132295021.8135.86.21.03630*485*409220
AB-1560160295023.9151.66.30.95900*630*452550
AB-1560R160295024151.66.30.95900*630*452550
