High-Precision 110~120nm3/Min Compressed Air Dryer Pipeline Filter F-600

The sterilizing filter mainly uses a microfiltration filter element with a large specific surface area and a filtration precision of 0.22um or above. It is mainly used to prevent impurities and harmfu

  • Working Pressure:7~16[ bar ]101.5~232[ psig ]
  • Free Air Delivery:3883~4236[ cfm ]110~120[ m3/min ]
  • Working Power:7.5~250[ kw ]10~350[ hp ]

Product Details

The sterilizing filter mainly uses a microfiltration filter element with a large specific surface area and a filtration precision of 0.22um or above. It is mainly used to prevent impurities and harmful bacteria in the air, production lines, and clean rooms from causing changes in water quality, products, and the clean room environment. , to meet the industrial needs of food, biochemical, beverage, beer, medicine, electronics and other industries.

Filter element material: PTFE It is made of foldable type and is often used in cartridge filters. It is a hydrophobic material. It is a widely used material. It is heat-resistant and chemically stable. It is often used for fine filtration of water, inorganic solvents and air.


Product features

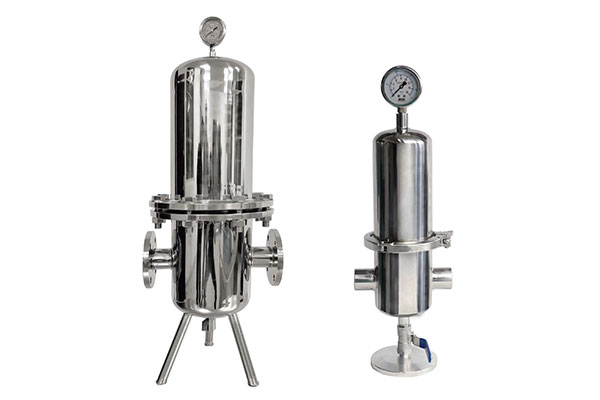

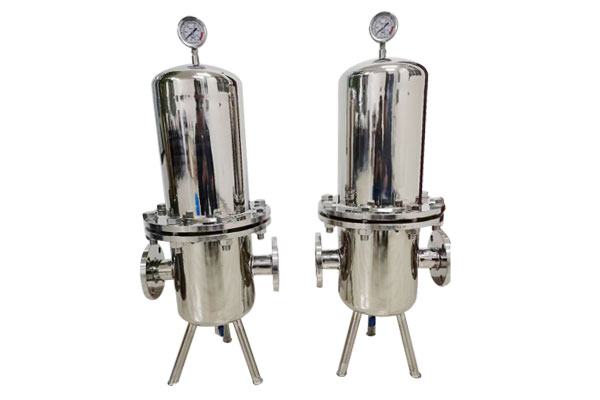

1. The sterilizing filter generally adopts a cross-hanging type with horizontal entry and exit. Multi-core filters can be designed as floor-standing.
2. In some use cases, it is divided into two types: pre-filter and fine filter according to actual needs.
3. Air flow direction: from outside to inside through the filter element.
4. Sterilize regularly, 1-2 times a week or monthly according to actual usage, 30 minutes each time, using clean saturated steam with 1U filtration accuracy. When the steam temperature is <0.3MPO, the valve opens and closes slowly.



Technical Parameters

Filter modelFlow (m3/min)Filter elementNumber of filter elementsImport and exportBarrel diameter
F-0101-25inch11 inch inner wire + quick opening102
F-0504-610 inch11 inch inner wire + quick opening102
F-0707-1020 inch11.5 inch inner wire + quick opening102
F-10015-2020 inch2DN50 flange180
F-20030-3520 inch3DN65 flange219
F-30040-5520 inch5DN80 flange255
F-40060-7520 inch7DN80 flange255
F-50080-10020 inch9DN100 flange325
F-600110-12020 inch11DN125 flange377
F-700130-14020 inch13DN125 flange377
F-800150-16020 inch15DN150 flange426
