Air Compressor Filter Compressed Air Dryer Line Filter F-700

  • Working Pressure:7~16[ bar ]101.5~232[ psig ]
  • Free Air Delivery:4589~4942[ cfm ]130~140[ m3/min ]
  • Working Power:5.5~250[ kw ]7.5~350[ hp ]

Product Details

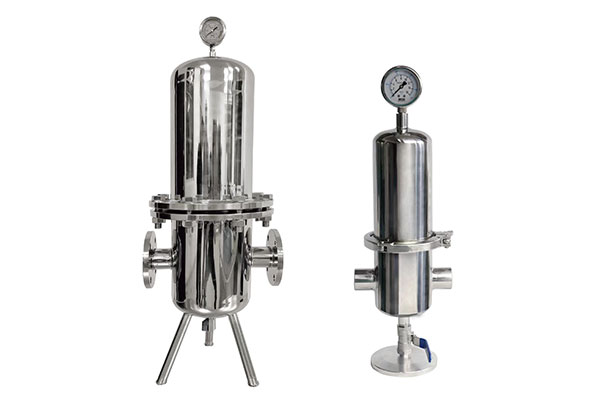

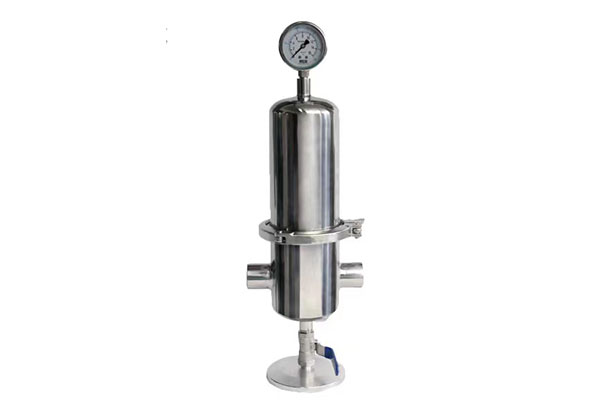

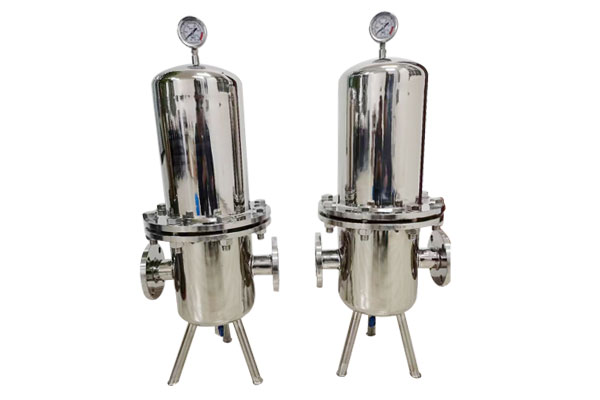

Air Compressor Filter Compressed Air Dryer Line Filter F-700


The sterilizing filter mainly uses a microfiltration filter element with a large specific surface area and a filtration precision of 0.22um or above. It is mainly used to prevent impurities and harmful bacteria in the air, production lines, and clean rooms from causing changes in water quality, products, and the clean room environment. , to meet the industrial needs of food, biochemical, beverage, beer, medicine, electronics and other industries.

Filter element material: PTFE It is made of foldable type and is often used in cartridge filters. It is a hydrophobic material. It is a widely used material. It is heat-resistant and chemically stable. It is often used for fine filtration of water, inorganic solvents and air.

Technical Parameters

Filter model

Flow

 (m3/min)

Filter

 element

Number of

filter

 elements

Import and

export

Barrel

diameter

F-0101-25inch11 inch inner wire + quick opening102
F-0504-610 inch11 inch inner wire + quick opening102
F-0707-1020 inch11.5 inch inner wire + quick opening102
F-10015-2020 inch2DN50 flange180
F-20030-3520 inch3DN65 flange219
F-30040-5520 inch5DN80 flange255
F-40060-7520 inch7DN80 flange255
F-50080-10020 inch9DN100 flange325
F-600110-12020 inch11DN125 flange377
F-700130-14020 inch13DN125 flange377
F-800150-16020 inch15DN150 flange426
