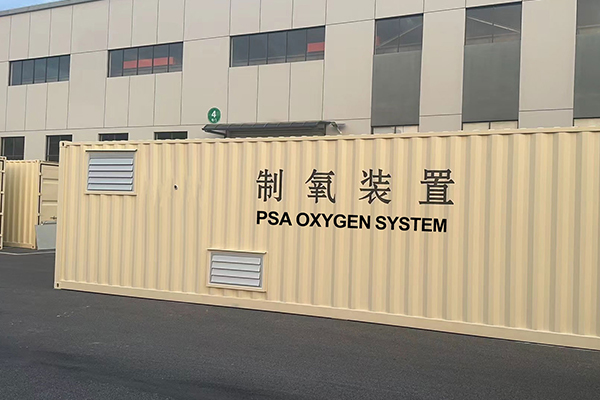

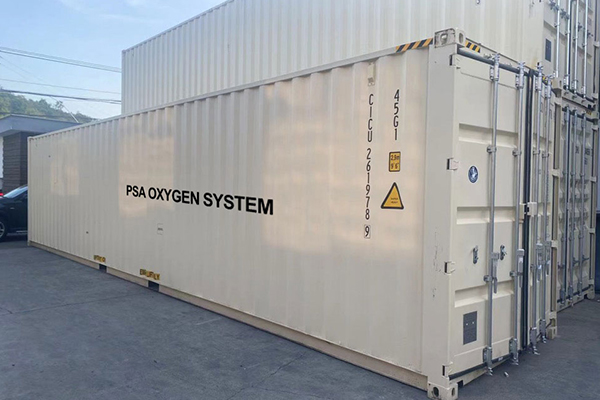

Containerized Mobile Oxygen and Nitrogen Generator Industrial High-Purity Oxygen Generator

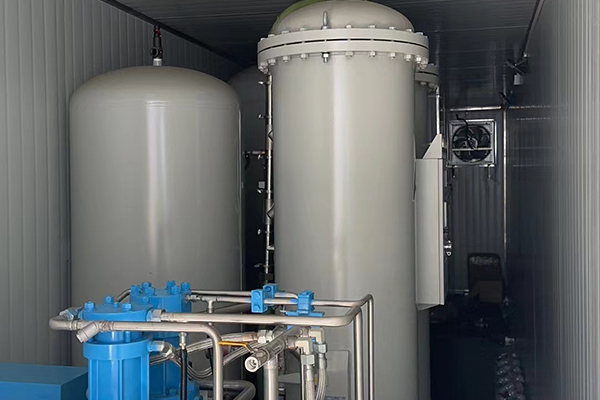

The 40Nm3/h container-type oxygen generator is Consists of screw air compressor + PSA Oxygen Generator System Skid + Oil Free Oxygen Booster + Oxygen filling row.

  • Working Pressure:150[ bar ]2175[ psig ]
  • Free Air Delivery:1412[ cfm ]40[ m3/min ]
  • Working Power:0.1[ kw ]0.15[ hp ]

Product Details

The 40Nm3/h container-type oxygen generator is Consists of screw air compressor + PSA Oxygen Generator System Skid + Oil Free Oxygen Booster + Oxygen filling row.


Rocky series PSA Oxygen Generator Specification:

1.Purity: 28~95%

2. Capacity: 1~3000Nm3/h

3. Pressure out: 0.1~0.6Mpa (0.6~15.0MPa is also available)

4. Dew point: <-45°C

5. Type: Skid-Mounted


Product Features

1. Full Automation All systems are designed for un-attended operation and automatic Oxygen demand adjustment.
2. Lower Space Requirement The design and Instrumentation makes the plant size very compact, assembly on skids, prefabricated and supplied from factory.
3. Fast Start-up Start-up time is about 30 minutes to get desired Oxygen purity. So these units can be switched ON & OFF as per Oxygen demand changes.
4. High Reliability It's very reliable for continuous and steady operation with constant Oxygen purity. Plant availability time is better than 93% always. 5. Zeolite Molecular Sieves Life. Expected Zeolite Molecular Sieves life is more than 10-years i.e. whole life time of Oxygen plant. So no replacement costs.
6. Low investment and energy consumption.
7. Simple operation and maintenance.

Technical Parameters

Oxygen parameters
NO.NameData
1Oxygen flow40Nm3/h
2Final pressure filling cylinder150bar
3Oxygen purity93-94%
4Oxygen dew point-60ºC
