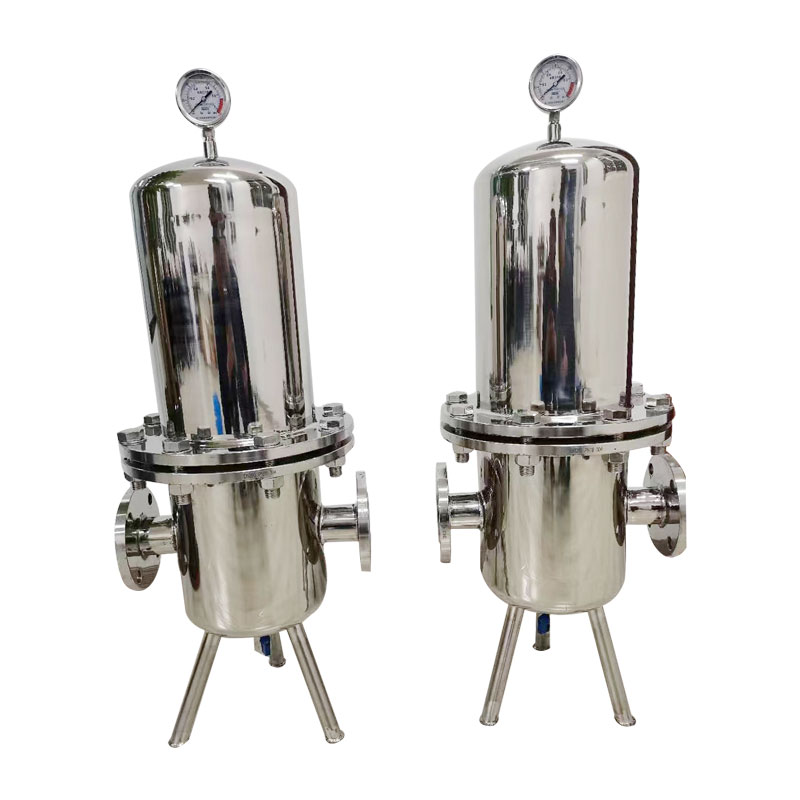

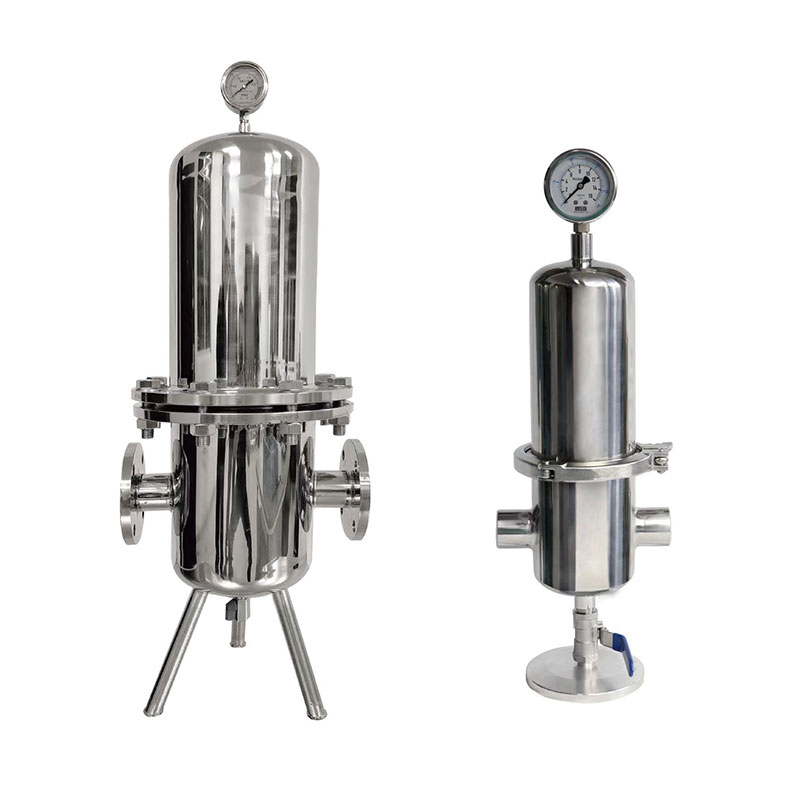

Compressed Air Filter Stainless Steel Sterilizing Filter RF-070

The sterilizing filter is mainly a microfiltration filter element with a large specific surface area and a filtration accuracy of 0.22um or more. It is mainly used to prevent impurities and harmful ba

  • Working Pressure:6~20[ bar ]87~290[ psig ]
  • Free Air Delivery:10.6~2294[ cfm ]0.3~65[ m3/min ]
  • Working Power:7.5~250[ kw ]10~350[ hp ]

Product Details

不锈钢除菌过滤器 (2).jpg

The sterilizing filter is mainly a microfiltration filter element with a large specific surface area and a filtration accuracy of 0.22um or more. It is mainly used to prevent impurities and harmful bacteria in the air, production lines, and sterile rooms from causing changes in water quality, products, and sterile room environments. , to meet the industrial needs of food, biochemical, beverage, beer, medicine, electronics and other industries.

Technical Parameters

Filter modelCapacity
M³/min
Connection sizesFilter element
model
Filter element
qty (pcs)
RF-0101-3Quick Connect/ Thread 1"226*51
RF-0504-6Quick Connect/ Thread 1"226* 101
RF-0707-10Quick Connect /Thread 1.5"226*201
RF-10015-20DN65226*202
RF-20030-35DN80226*203
RF-30040-55DN100226*205
RF-40060-75DN125226*207
RF-50080-100DN125226*209
RF-600110-120DN150226*2011
RF-700130-140DN150226*2013
RF-800150-160DN200226*2015
